Getting Started
Installing Software
The ADF7023 evaluation software and documentation can be installed from the Analog Devices ftp site.
(ftp.analog.com/pub/RFL/ADF7023)
The software installation should be carried out before plugging in the ADF7023 Evaluation Boards.
Installation Procedure
1.

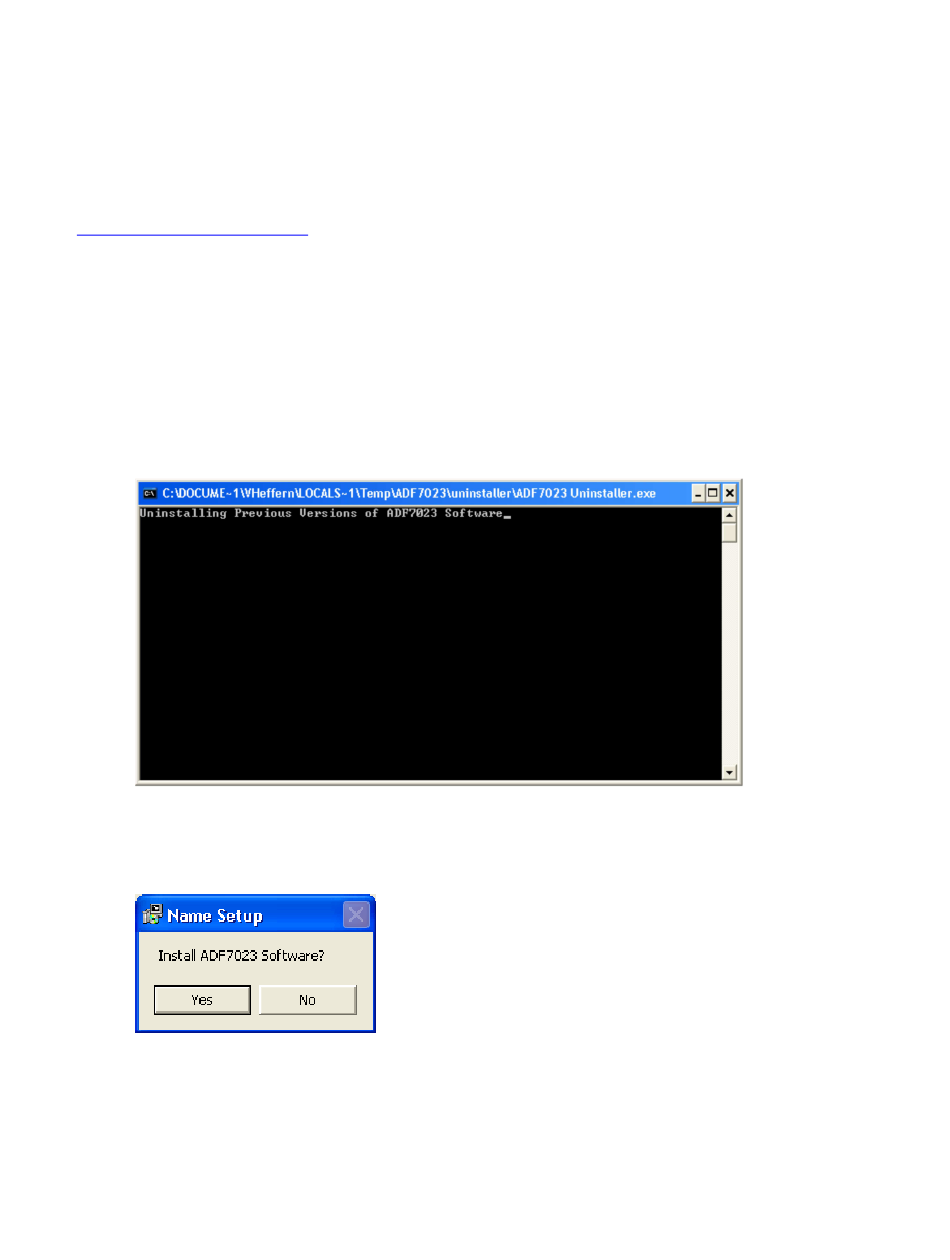

Run ADF7023 Rev1.5.4 FULL.exe to install the evaluation software for the ADF7023. The install will place the
relevant files in the folder C:\Program Files\Analog Devices BV\ADF7023. It will also create shortcuts on the
start menu. Any previous versions of the software will be removed before the installation commences (
2.
3.
Click on "Yes" to install the software (
Figure 2
Figure 1
Figure 2
).
R e v 1 . 1
| Page 4
Figure 1
).
