One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
FEATURES
Supply voltages
Dual supply: ±5 V to ±22 V
Single supply: 8 V to 44 V
Protected against overvoltage on source pins
Signal voltages up to −55 V and +55 V
LED for visual overvoltage indication
Parallel interface compatible with 3 V logic
On-board low dropout (LDO) regulator for digital supply and
control if required
ONLINE RESOURCES
Evaluation Kit Contents
EVAL-ADG5404F
Documents Needed
ADG5404F
data sheet
EQUIPMENT NEEDED
DC voltage source
±22 V for dual supply
44 V for single supply
Optional digital voltage source: 3 V to 5 V
Analog signal source
Method to measure voltage, such as digital multimeter (DMM)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADG5404F
Fault Protection and Detection, 10 Ω R
POWER SUPPLY
SIGNAL GENERATOR

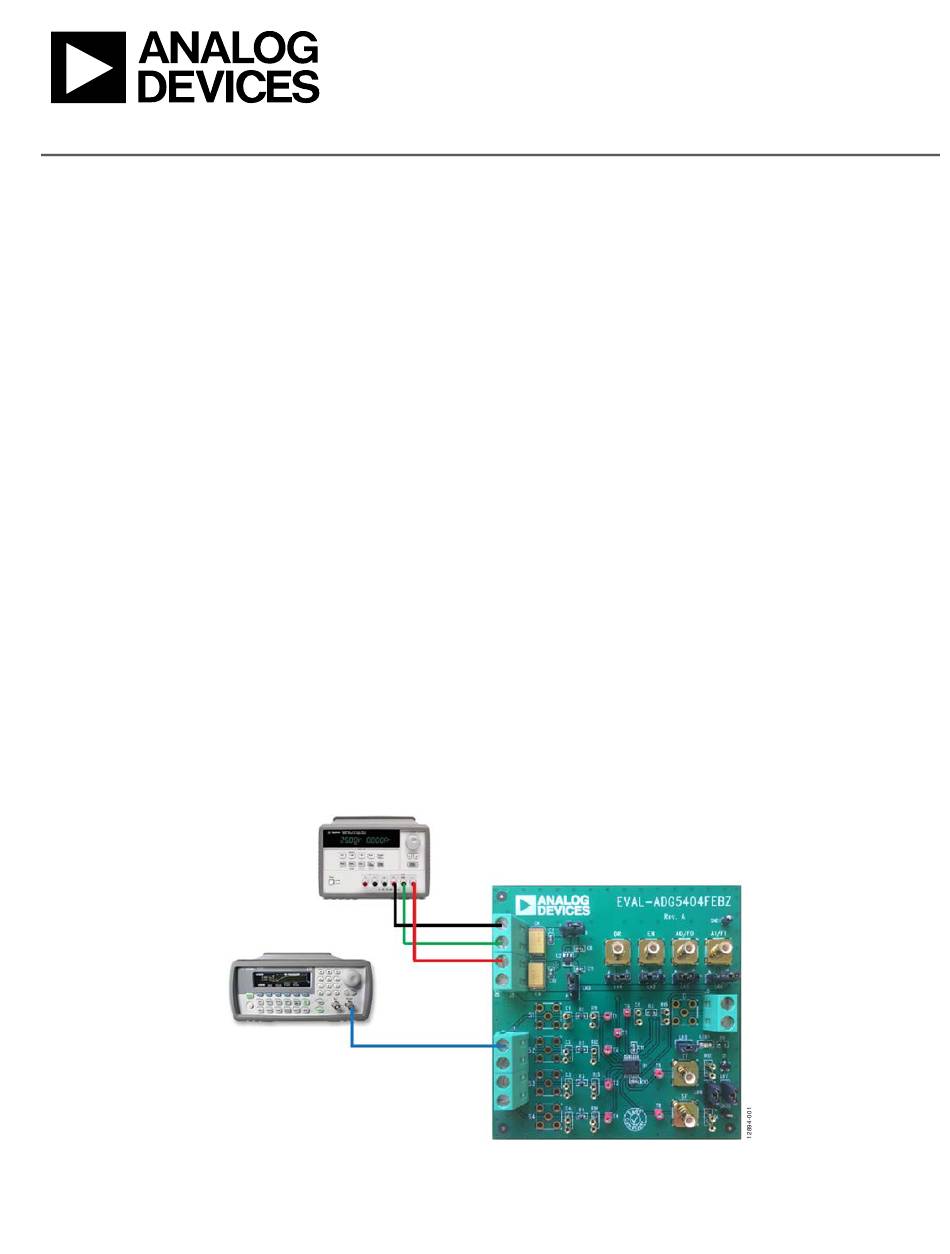

Figure 1. EVAL-ADG5404FEBZ, Power Supply, and Signal Generator
EVAL-ADG5404FEBZ User Guide
Multiplexer
GENERAL DESCRIPTION
This user guide describes the evaluation board for the ADG5404F,
which is a 4-channel multiplexer. The
detection and protection circuitry on the source pins and is
protected against signals up to −55 V and +55 V in both the
powered and unpowered state.
Figure 1 shows the
The
ADG5404F
screw terminals are provided to connect to each of the source
and drain pins. Three screw terminals power the device, with a
fourth terminal used to provide a user defined digital voltage, if
required. Alternatively, an LDO regulator is provided for 5 V
digital voltage control and to supply the LED, which is mounted
to provide visual indication of the fault status of the switch.
TYPICAL SETUP
Rev. A | Page 1 of 10
, 4-Channel
ON
ADG5404F
EVAL-ADG5404FEBZ
in a typical setup.
is soldered to the center of the board and wire
UG-790
has overvoltage
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADG5404FEBZ
Summary of Contents for Analog Devices EVAL-ADG5404FEBZ
-
Page 1: Features
Method to measure voltage, such as digital multimeter (DMM) TYPICAL SETUP POWER SUPPLY SIGNAL GENERATOR Figure 1. EVAL-ADG5404FEBZ, Power Supply, and Signal Generator PLEASE SEE THE LAST PAGE FOR AN IMPORTANT Rev. A | Page 1 of 10 WARNING AND LEGAL TERMS AND CONDITIONS. -
Page 2: Table Of Contents
UG-790 EVAL-ADG5404FEBZ User Guide TABLE OF CONTENTS Features ....................1 Input Signals .................. 4 Online Resources ................1 Output Signals ................4 Equipment Needed ................1 Jumper Settings ................. 5 General Description ................. 1 Link Headers ................. 5 Typical Setup ..................1 SMB Connectors ................ -
Page 3: Getting Started
EVAL-ADG5404FEBZ User Guide UG-790 GETTING STARTED EVALUATION BOARD SETUP PROCEDURE Set up a functionality test as follows: • EVAL-ADG5404FEBZ board operates independently and Connect a power supply to J3. For single-supply operation, does not require any additional evaluation boards or software. -
Page 4: Evaluation Board Hardware
UG-790 EVAL-ADG5404FEBZ User Guide EVALUATION BOARD HARDWARE Use the EVAL-ADG5404FEBZ to evaluate the ADG5404F. with the gold pin connectors to create a simple resistor/capacitor Figure 1 shows a typical setup where only a power supply and (RC) filter. signal generator are required. Figure 2 shows a block diagram of Use parallel interface channels (A0/F0 and A1/F1) to control the the main components of the evaluation board. -
Page 5: Jumper Settings
EVAL-ADG5404FEBZ User Guide UG-790 JUMPER SETTINGS LINK HEADERS SMB CONNECTORS Use the link headers to control the ADG5404F manually, to Control the parallel interface of the ADG5404F manually by configure the digital control voltage, and to isolate the LED using the link headers of LK2 through LK4, or access the from the system. -
Page 6: Added Evaluation Board Schematics And Artwork Section, Figure 3, And Figure 4; Renumbered Sequentially
UG-790 EVAL-ADG5404FEBZ User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 3. EVAL-ADG5404FEBZ Evaluation Board Schematic (Part 1) Figure 4. EVAL-ADG5404FEBZ Evaluation Board Schematic (Part 2) Rev. A | Page 6 of 10... -
Page 7: Added Figure 5 And Figure 6
EVAL-ADG5404FEBZ User Guide UG-790 Figure 5. EVAL-ADG5404FEBZ Silkscreen Figure 6. EVAL-ADG5404FEBZ Top Layer Rev. A | Page 7 of 10... -
Page 8: Added Figure 7 And Figure 8
UG-790 EVAL-ADG5404FEBZ User Guide Figure 7. EVAL-ADG5404FEBZ Layer 2 Figure 8. EVAL-ADG5404FEBZ Layer 3 Rev. A | Page 8 of 10... -
Page 9: Added Figure 9
EVAL-ADG5404FEBZ User Guide UG-790 Figure 9. EVAL-ADG5404FEBZ Bottom Layer Rev. A | Page 9 of 10... -
Page 10: Added Ordering Information Section, Bill Of Materials, And Table 3
By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement. - Page 11 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Analog Devices Inc. EVAL-ADG5404FEBZ...
