Running a Packet Error Rate Test

To run a packet error rate test the previous section, Simple Rx / Tx Test in Packet Mode, must first be followed. Once
interrupts are observed, on both the Rx and Tx software instances, the Packet Error Rate (PER) test may be used.
Configuring the Receiver board for the PER test
1. Once all of the Receiver and packet parameters are setup correctly (as in
then select the "PER" Tab.
2. Select the "Rx Board Setup" Tab
3. Set the number of packets to be received, "No. of Packets to Rx"
4. Write these settings to the uC by clicking "Write Rx Settings"
5. To begin the test and put the receiver into Rx click "Begin PER Rx"
(Note: The receiver will remain in Rx waiting for a packet to be transmitted from a valid transmitter.)
6. If at any time you wish to terminate the test manually press "Stop Test".
(Note: The test will stop automatically once it receives the final transmitted packet.)
(Figure 39 point (1))
(Figure 39 point (2))

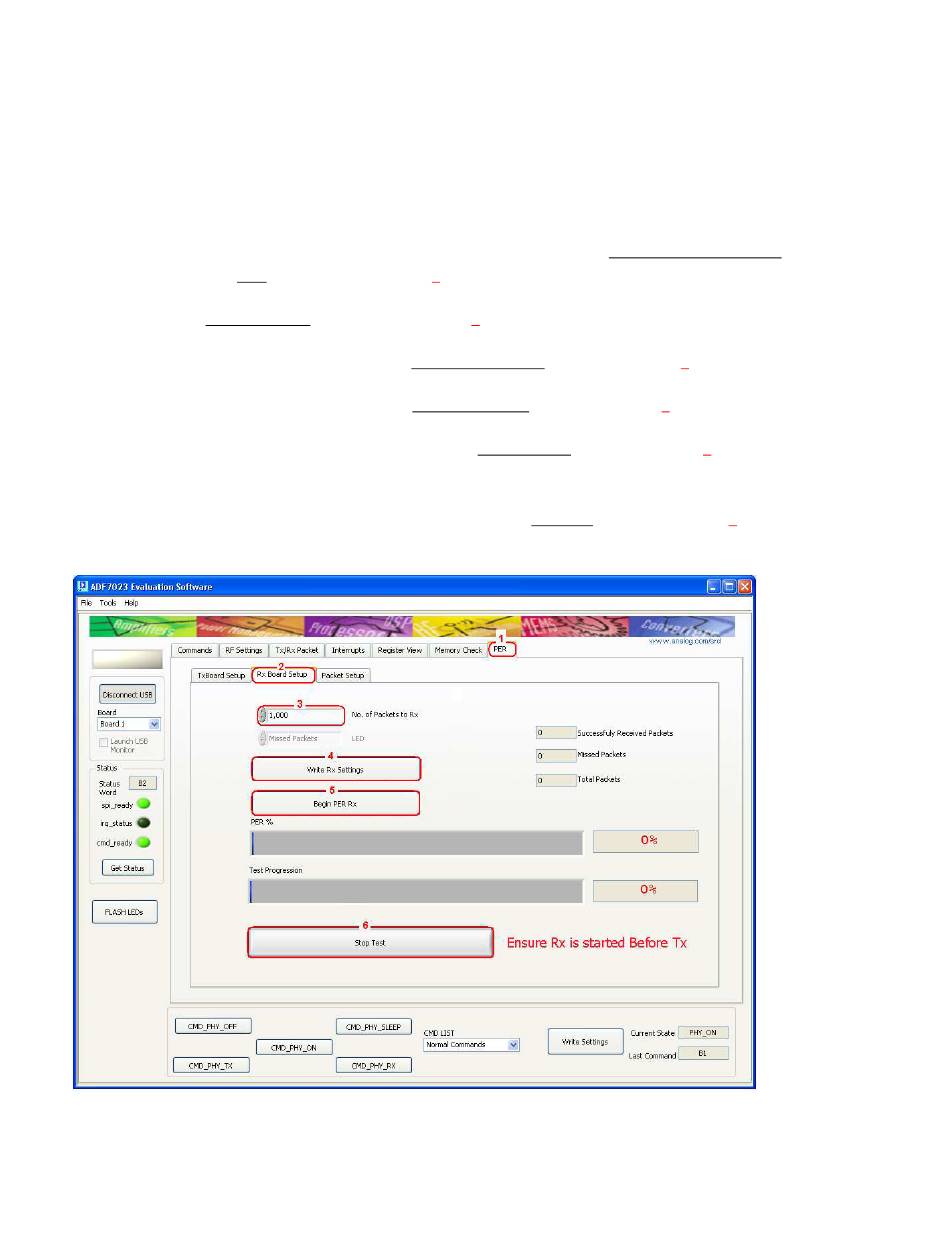

Figure 39
R e v 1 . 1 | Page 32
Rx Setup in Packet Mode section)
(Figure 39 point (3))
(Figure 39 point (4))
(Figure 39 point (5))
(Figure 39 point (6))
