Receiver Board Interrupts
Interrupts may be configured for various conditions in the "Interrupts" tab. (
1. Set the "crc_correct" interrupt. (
This will give an interrupt signal upon reception of a packet with a valid CRC.
2. Write the settings to the device using the "Update Needed" button. (
3. Put the part into Receive by pressing "CMD_PHY_RX" (
(Note: Ensure that the current state of the part is in "PHY_ON" before pressing "CMD_PHY_RX".)
"Board 1" is now in Receive and waits for a transmitted signal. It will remain in Rx until a valid packet with a valid CRC is
received.
Figure 33 point (2))
Figure 33 point (4))

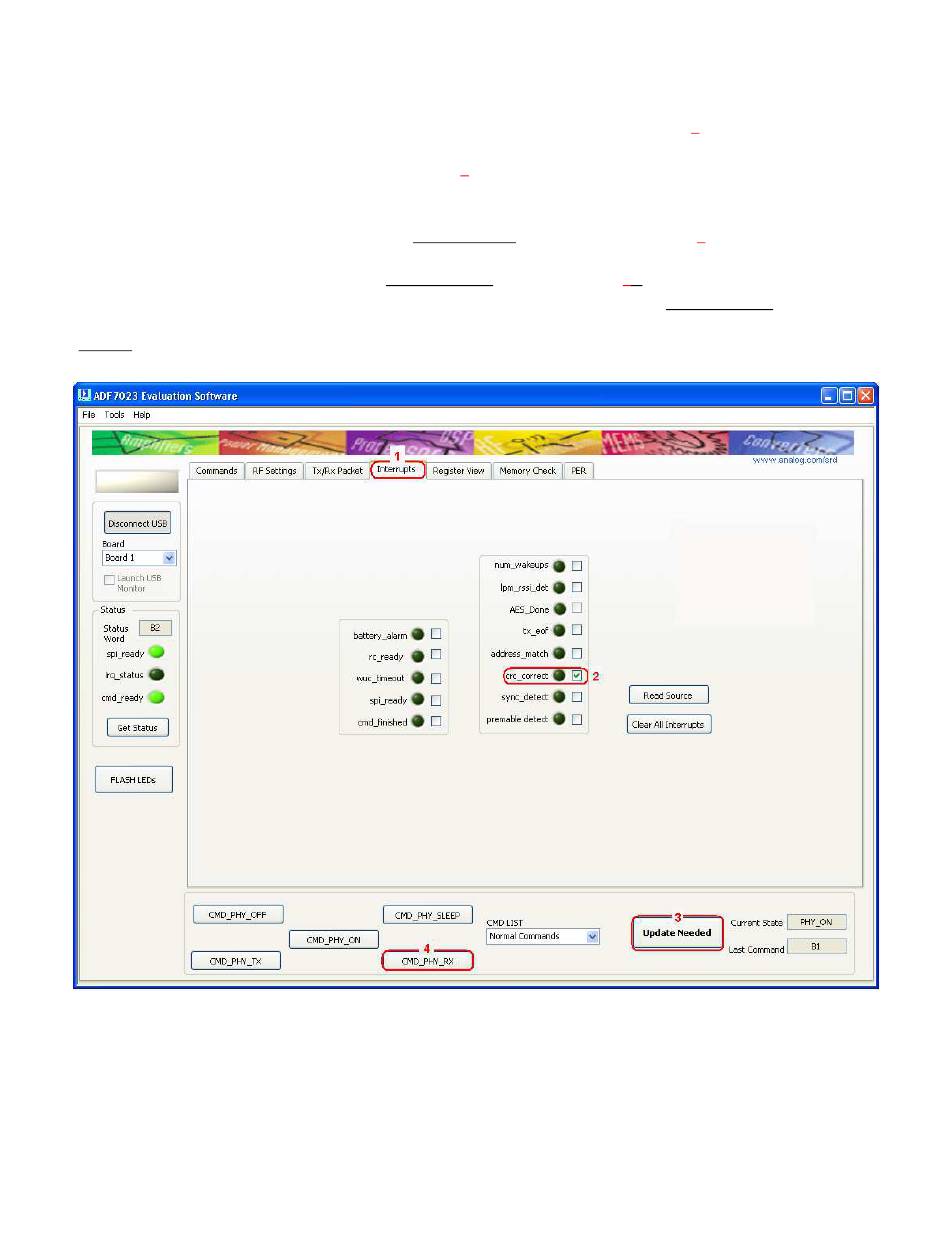

Figure 33
