EVAL-ADG5209FEBZ User Guide

GETTING STARTED

EVALUATION BOARD SETUP PROCEDURE

The EVAL-ADG5209FEBZ evaluation board is designed to
operate independently and does not require any additional
evaluation boards or software to operate. An on-board LDO
regulator is provided as the digital power supply to manually
control the ADG5209F.
Supply the evaluation board with a dual power source of up to
±22 V or a single supply of up to 44 V by connecting VSS and
GND together.
VDD
R14=LDO
R13=EXT_VL
EXT_VL
J5
ADP7142
(LDO)
SW1
SW2
J5
SW3
J5
GND
VSS

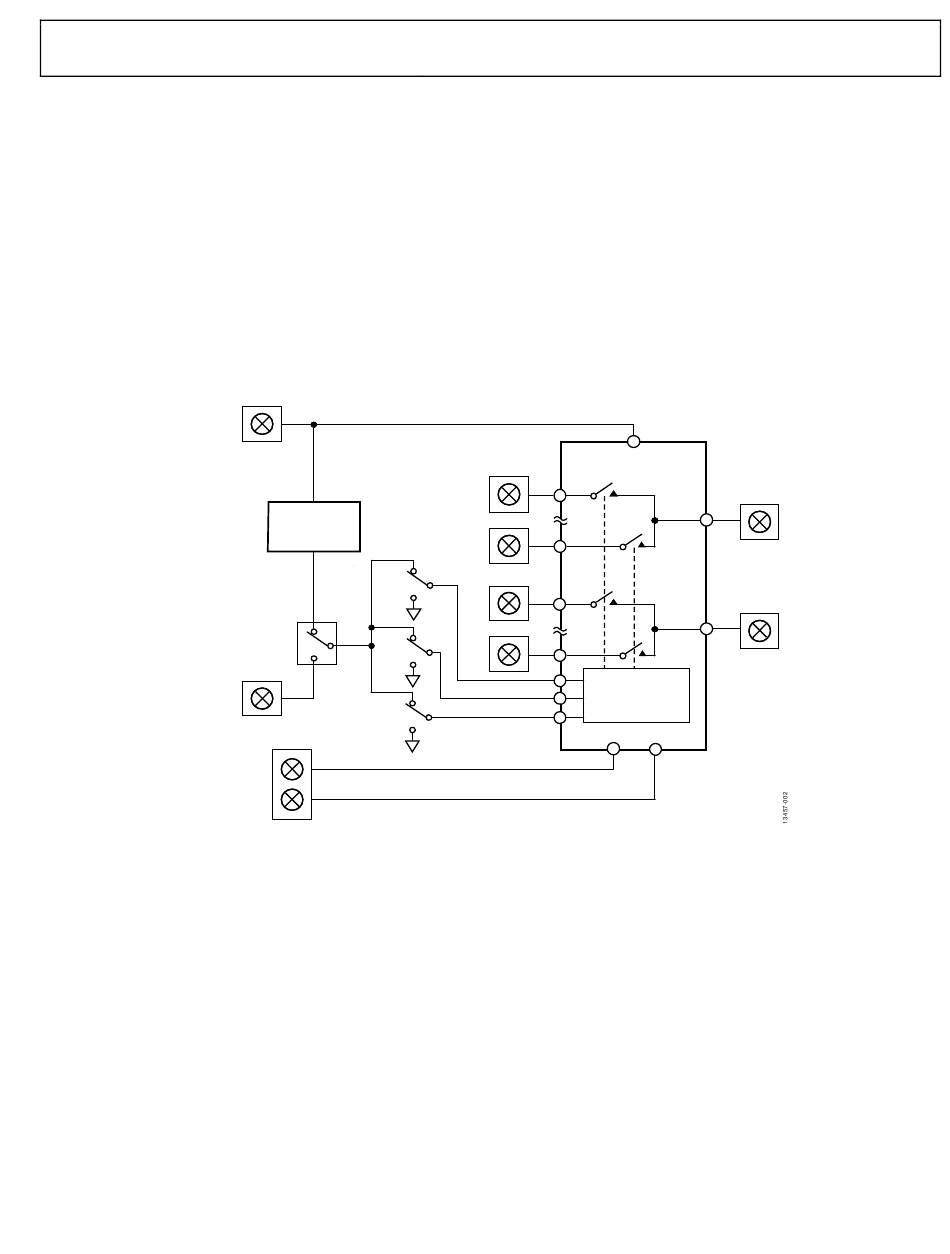

Figure 2. EVAL-ADG5209FEBZ
A functionality test can be set up as follows:
1. Connect a power supply to J5. Connect VSS and GND
together if a single supply is required.
2. Ensure a 0 Ω resistor is inserted in R15 to use the on-board
LDO regulator, and that a 0 Ω resistor is inserted in R14.
3. SW1 through SW3 control the digital signals for the
ADG5209F.
J1:S1A
ADG5209F
S1A
J1:S4A
S4A
J2:S1B
S1B
J2:S4B
S4B
EN
FAULT DETECTION
A0
SWITCH DRIVER
A1
GND
Block Diagram
Rev. 0 | Page 3 of 12
V
DD
J3:DA
DA
J4:DB
DB
AND
V
SS
UG-875
