Reading Interrupt Source on Transmitter board
Once the Transmitter has transmitted a packet you should now see "Interrupt Detected!" on both
instances of the software.
Figure 37 point (1))
(
On the Transmitter board the interrupt signifies that a packet has been successfully transmitted.
To check the source of the interrupt, click "Read Source"
Figure 37 point (2))
(
To Clear the interrupt status click "Clear All Interrupts"
Figure 37 point (3))
(

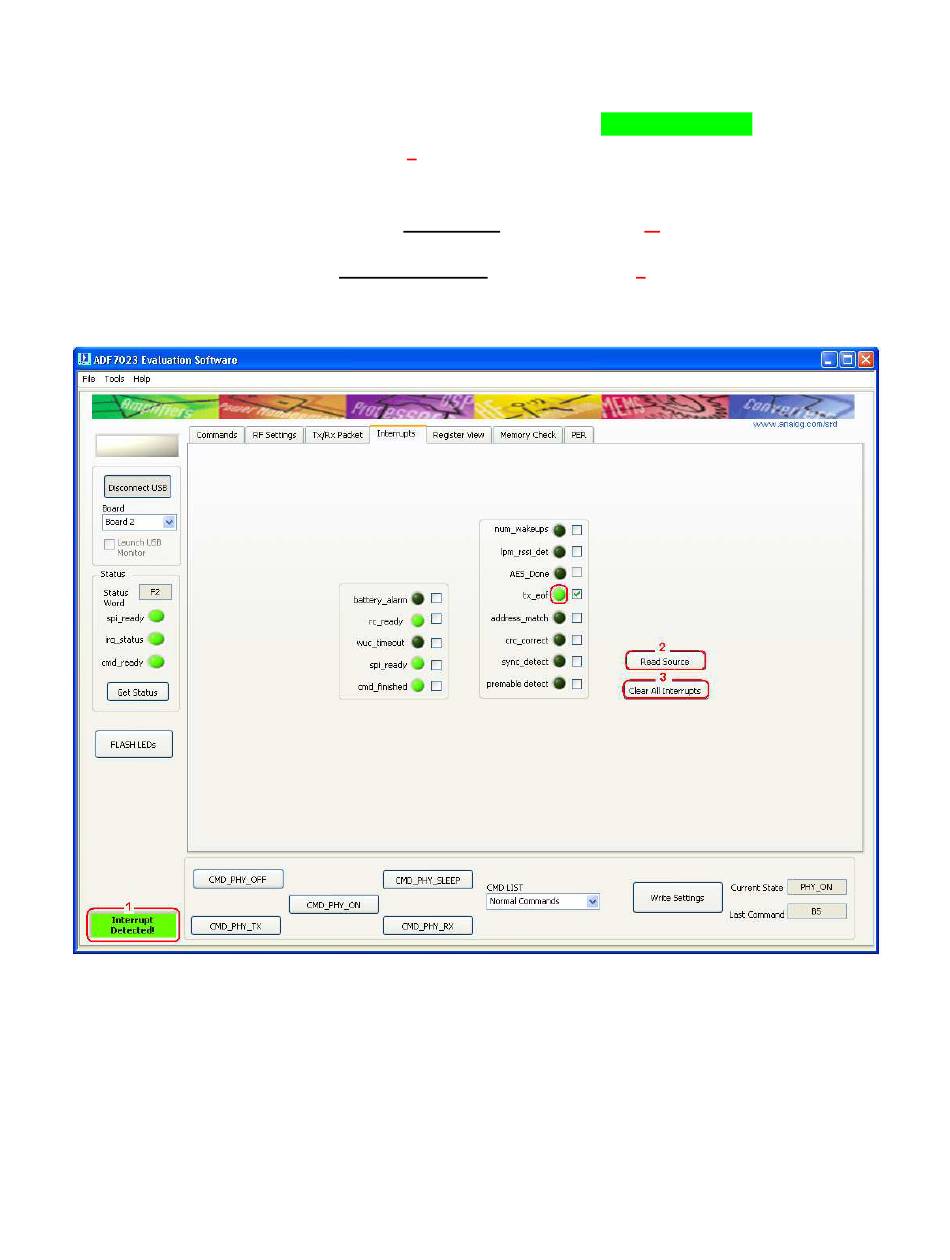

Figure 37
R e v 1 . 1
| Page 30
