Using the Evaluation Software

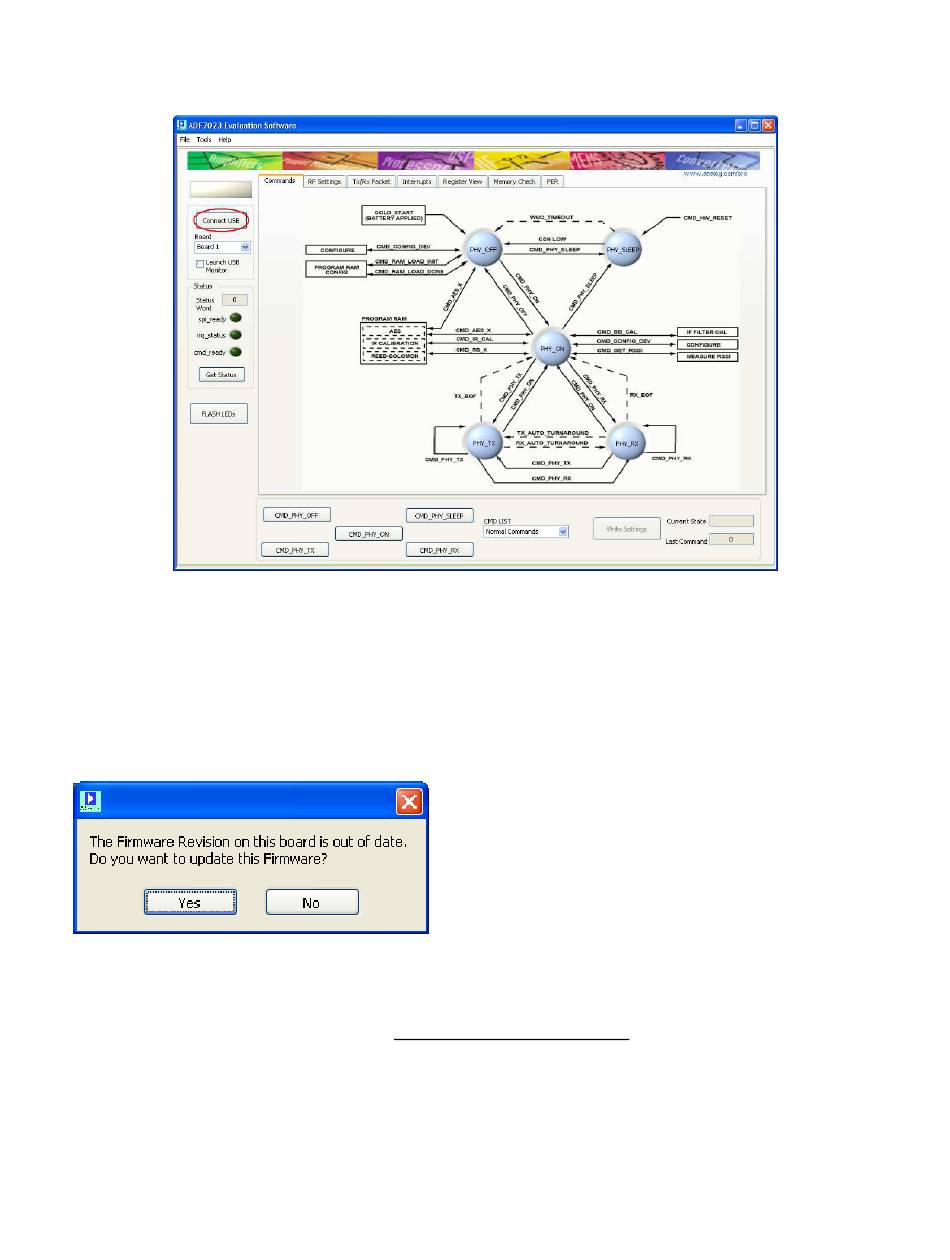

Figure 16
Wait until the BUSY signal above the Connect USB button is turned off before pressing any further buttons on the
software interface.
The Firmware for the motherboard is automatically checked each time the software is loaded to ensure the revisions are
kept up to date.
Figure 17
If the firmware is out of date the following message will pop up ( ):
Figure 17
To go through the update procedure, refer to the Mother Board Firmware Update section.
