Transmitter Board Tx Packet Settings
Using the Tx/Rx packet tab you can set up the packet format and configure the packet handler. Ensure these settings
are the same as the Receiver settings previously set. (
1. The transmitted preamble length sync word and CRC can be defined by the user. (
(Note: Ensure CRC is enabled for this test. You have the choice to use the default CRC or enable a
programmable CRC whose polynomial may be set in registers 0x11E and 0x11F.)
2. Ensure you are using a fixed packet length and that, "Packet Length Max" is set equal the payload length.
( Figure 35 point (3))
3. Set up the Tx base address. (
(Note : This is the start address of the Transmitted packet in Packet Ram Memory.)
4. Insert Hex data in the Payload Data field (
then click "Write Payload to RAM" (
5. Write the settings to the device using the "Update Needed" button. (
Figure 35 point (1))
Figure 35 point (4))
Figure 35 point (5))
Figure 35 point (6))

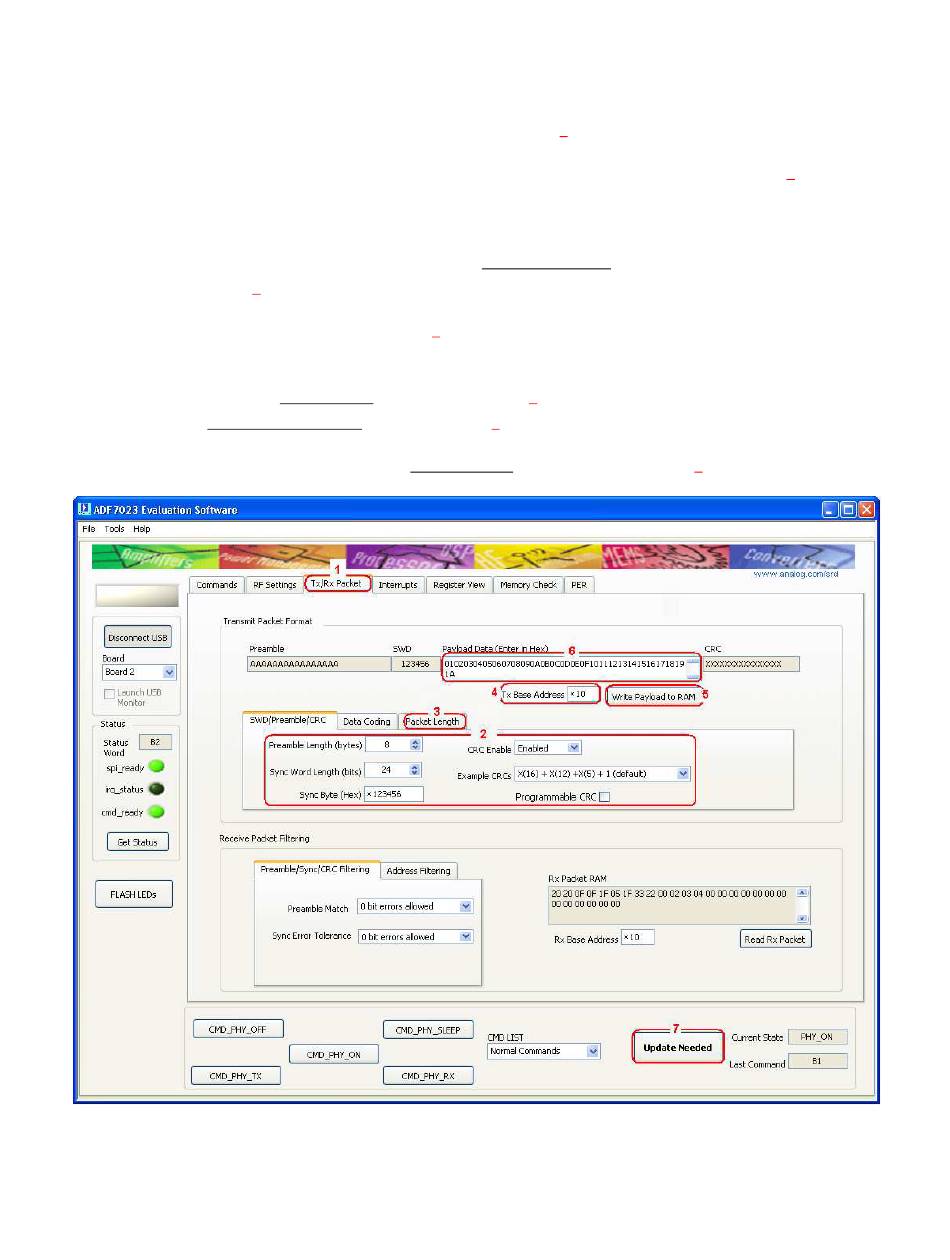

Figure 35
R e v 1 . 1 | Page 28
Figure 35 point (2))
Figure 35 point (7))
