Tx Setup in Packet Mode

The settings which follow are for use with EVAL-ADF7023DB1z daughter boards. If you are using a
different Daughter board, ensure that the frequency is set within the correct range of the board you are
using. Please refer to table x if you are unsure what the frequency range of you board is designed for.
Transmitter Board RF Settings
1. Ensure the S econd ADF7023 Daughter board is correctly plugged into the Second Mother board and that the
"Current_State" is "PHY_ON" on the Second instance of the ADF7023 Software.
Refer to Connecting the Evaluation Boards section for setup procedures.

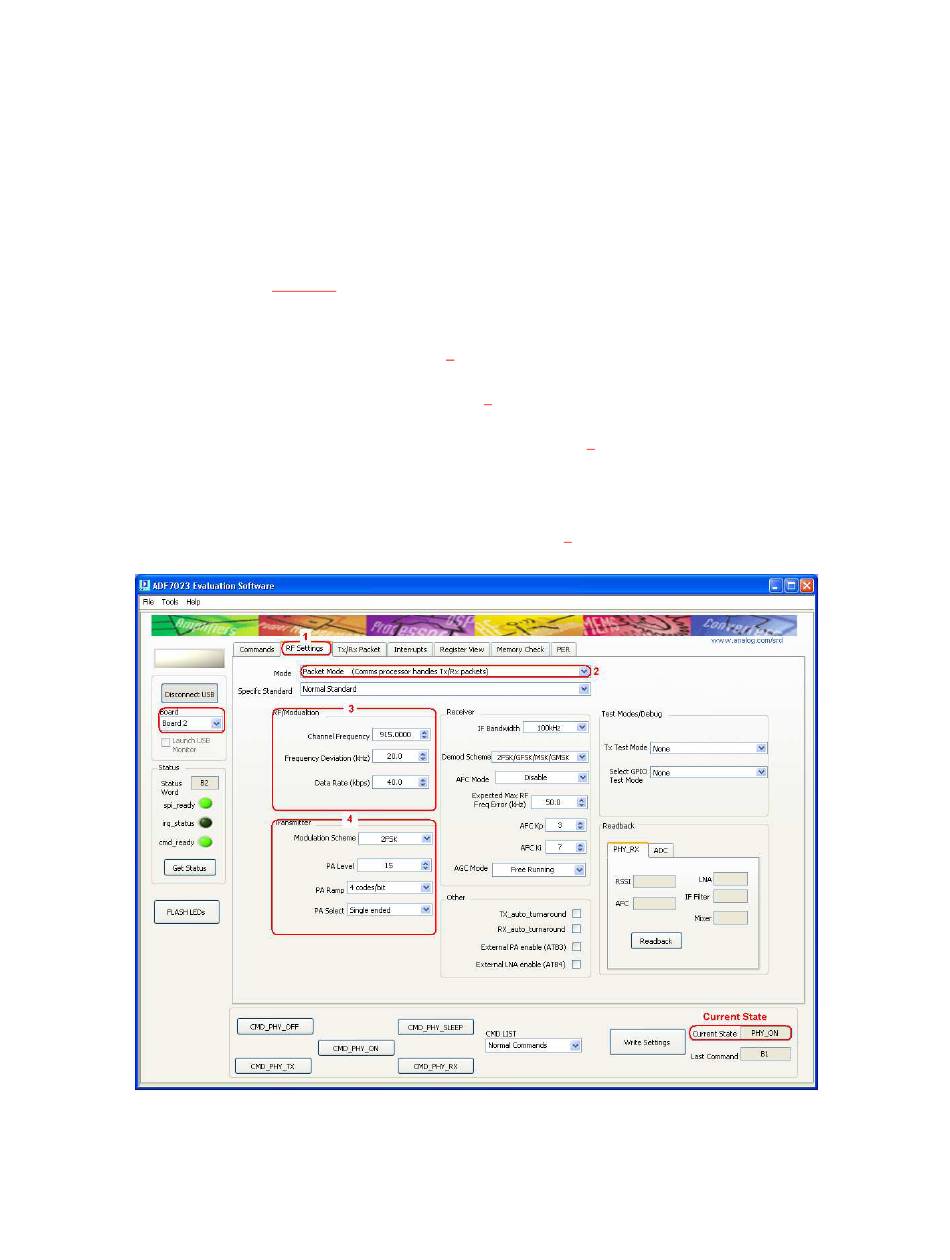

2. Select the "RF Settings" Tab (
3. Ensure "Packet mode" is selected. (
4. Set the "RF/Modulation" parameters as required. (
(Note : Ensure the Transmitter RF/Modulation parameters are the same as the Receiver RF/Modulation
parameters previously setup).
5. Set the "Transmitter" parameters as required. (
Figure 34
point (1))
Figure 34
point (2))
Figure 34
Figure 34
Figure 34
R e v 1 . 1 | Page 27
point (3))
point (4))
