Receiver Board Rx Packet Settings
Using the Tx/Rx packet tab you can set up the packet format and configure the packet handler. (
1. The transmitted preamble length sync word and CRC can be defined by the user. (
(Note: Ensure CRC is enabled for this test. You have the choice to use the default CRC or enable a
programmable CRC whose polynomial may be set in registers 0x11E and 0x11F.)
2. Ensure you are using a fixed packet length and that, "Packet Length Max" is set equal the payload length.
( Figure 32 point (3))
3. Set up the Rx base address. (
(Note : This is the start address of the received packet in Packet Ram Memory.)
4. Write the settings to the device using the "Update Needed" button. (
Figure 32 point (4))

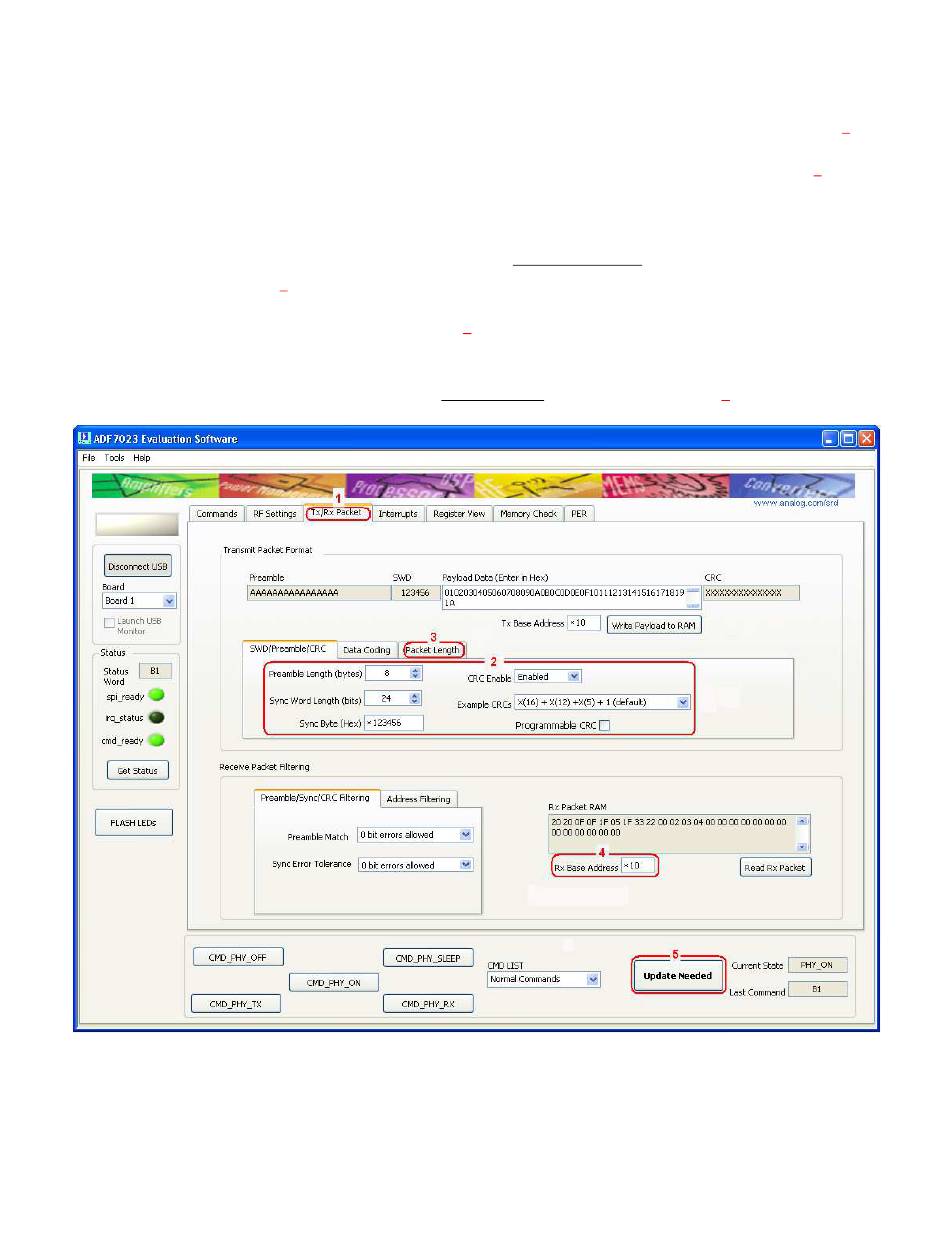

Figure 32
R e v 1 . 1 | Page 25
Figure 32 point (1))
Figure 32 point (2))
Figure 32 point (5))
