Evaluation Board for Fractional-N/Integer-N PLL Frequency Synthesizer

FEATURES

Self-contained board including PLL, VCO, loop filter (20 kHz),
10 MHz TCXO reference, USB interface, and voltage
regulators
Accompanying software allows control of synthesizer
functions from a PC
Choice of power supply via USB or external feeding
Typical phase noise performance of −99 dBc/Hz @ 1 kHz
offset from carrier (1 GHz output frequency)

GENERAL DESCRIPTION

The EVAL-ADF4350EB2Z is designed to evaluate the
performance of the
ADF4350
block diagram of the board is shown in Figure 1. It contains
USB
CONNECTOR
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
frequency synthesizer. A

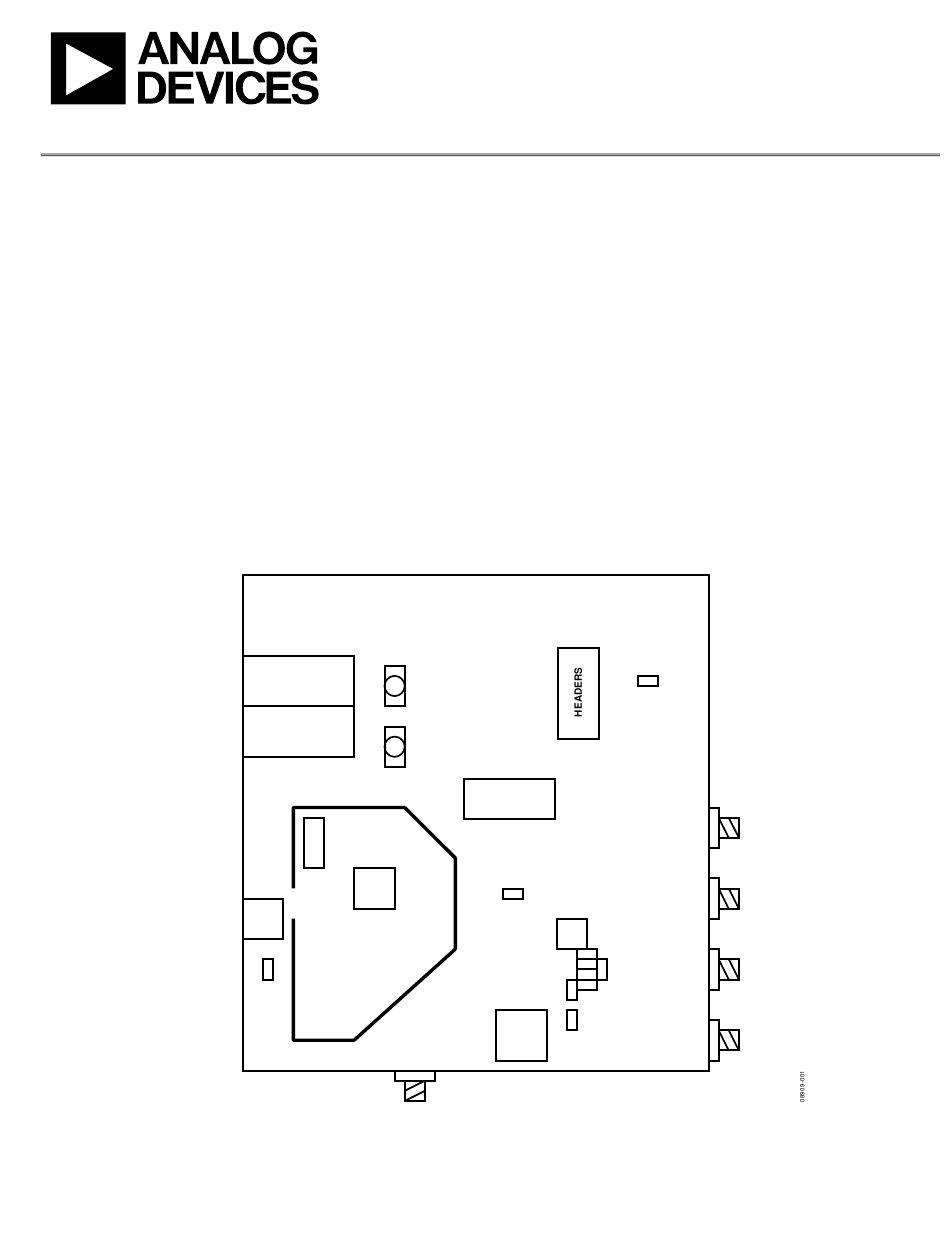

EVALUATION BOARD BLOCK DIAGRAM

EXTERNAL DC
EXTERNAL POWER
SUPPLY
SWITCH
EXTERNAL DC
GND
USB POWER SWITCH
USB CRYSTAL
AND PROCESSOR
USB
POWER
LED
Evaluation Board User Guide
the ADF4350 synthesizer, a USB connector and related inter-
face, a 10 MHz TCXO reference source, SMA connectors for
the RF outputs, and reference signal plus headers for various
signals and voltages. There is also a loop filter (20 kHz) on
board. A USB cable is included with the board to connect to
a PC USB port.
The package also contains Windows® software (2000- and XP-
compatible) to allow easy programming of the synthesizer.

EVALUATION KIT CONTENTS

Evaluation board software CD
USB cable
EVAL-ADF4350EB2Z
HEADERS
LOCK DETECT LED
ADF4350
LOOP FILTER
TCXO
REFERENCE IN/OUT

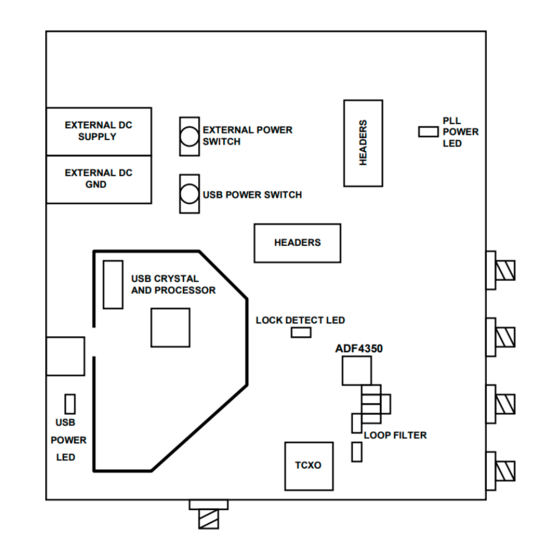

Figure 1.
Rev. 0 | Page 1 of 12
PLL
POWER
LED
RF
B−
OUT
RF
B+
OUT
RF
A–
OUT
RF
A+
OUT
UG-110
