Receiver Board RF Settings
1. Ensure the First ADF7023 Daughter board is correctly plugged into the First Mother board and that the
"Current_State" is "PHY_ON" on the First instance of the ADF7023 Software.
Refer to Connecting the Evaluation Boards for setup procedures.
2. Select the "RF Settings" Tab (
3. Ensure "Packet mode" is selected. (
4. Set the "RF/Modulation" parameters as required. (
5. Set the "Receiver" parameters as required. (
If using AFC ensure the AFC pull in range is set to the desired value.
(A value of half the IF bandwidth is recommended.)
Figure 31 point (1))
Figure 31 point (2))
Figure 31 point (3))
Figure 31 point (4))

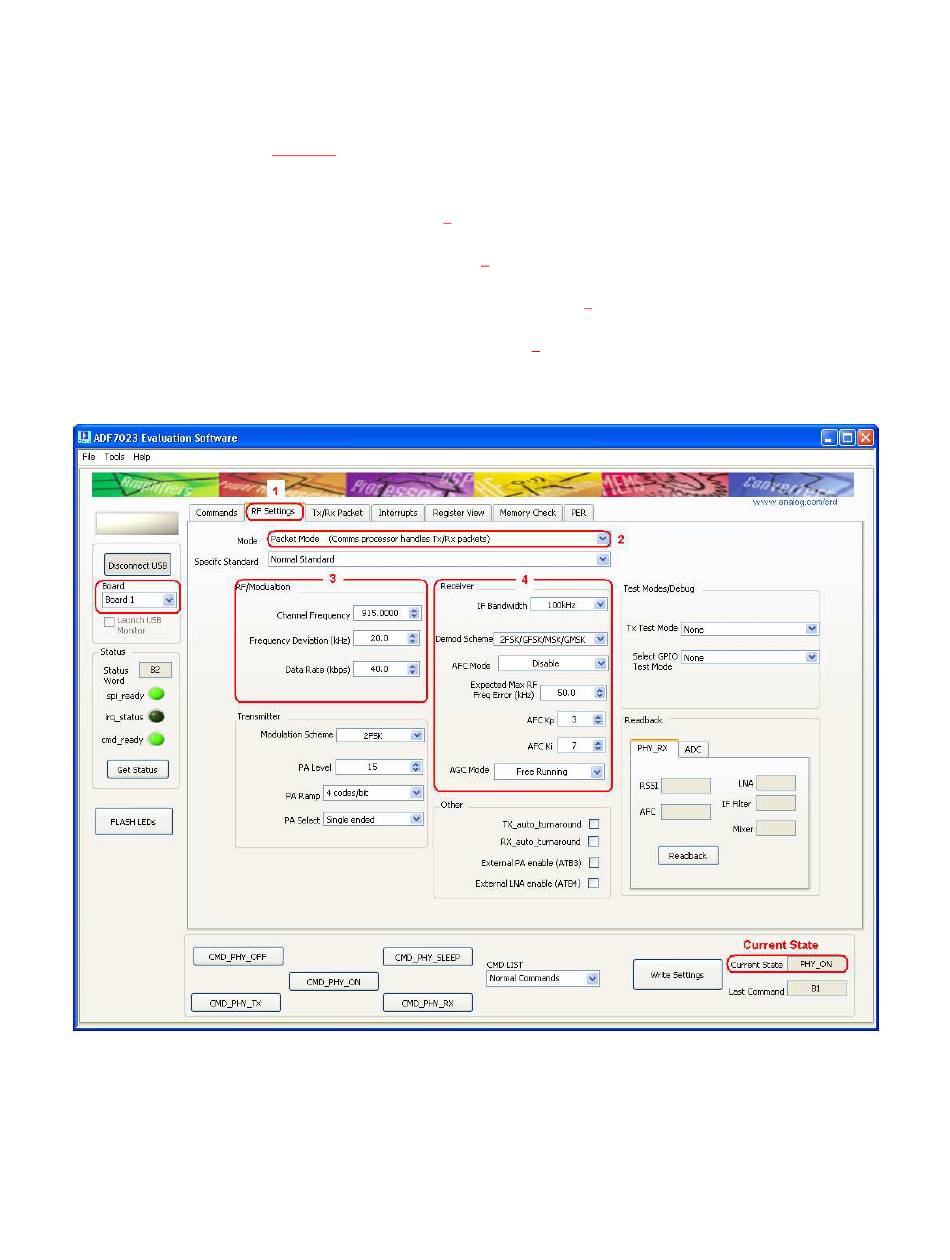

Figure 31
