Analog Devices EVAL-ADF4602EB1Z Preliminary Technical Data

Adf4602 & ad9863 femtocell evaluation board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Preliminary Technical Data
FEATURES
ADF4602 femtocell transceiver
AD9863 mixed signal front end (MxFe)
Single Antenna RF Front End architecture
+13dBm output power with <-47dB ACLR
Complete front end solution for femtocell including:
switches, SAW filters, duplexer, coupler, 2 stage PA
consisting of ADL5542 and ADL5320
Simple USB interface for programming
Rev. PrC
Evaluation boards are only intended for device evaluation and not for production purposes.
Evaluation boards are supplied "as is" and without warranties of any kind, express, implied, or
statutory including, but not limited to, any implied warranty of merchantability or fitness for a
particular purpose. No license is granted by implication or otherwise under any patents or other
intellectual property by application or use of evaluation boards. Information furnished by Analog
Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog
Devices for its use, nor for any infringements of patents or other rights of third parties that may result
from its use. Analog Devices reserves the right to change devices or specifications at any time
without notice. Trademarks and registered trademarks are the property of their respective owners.
Evaluation boards are not authorized to be used in life support devices or systems.
ADF4602 & AD9863 Femtocell Evaluation
UMTS Band 1 transmit/receive operation with GSM/WCDMA
monitoring in 850/900/1800/1900MHz bands
Accompanying software allows complete control of
ADF4602, AD9863 and RF switches
Single 9V supply
Interfaces to data acquisition board HSC-ADC-EVALB-DC for
capture and analysis of ADC data
Visual Analog
SNR, SINAD, SFDR analysis

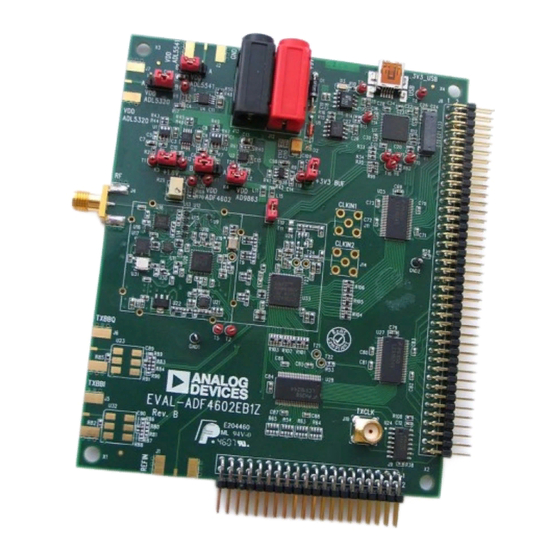

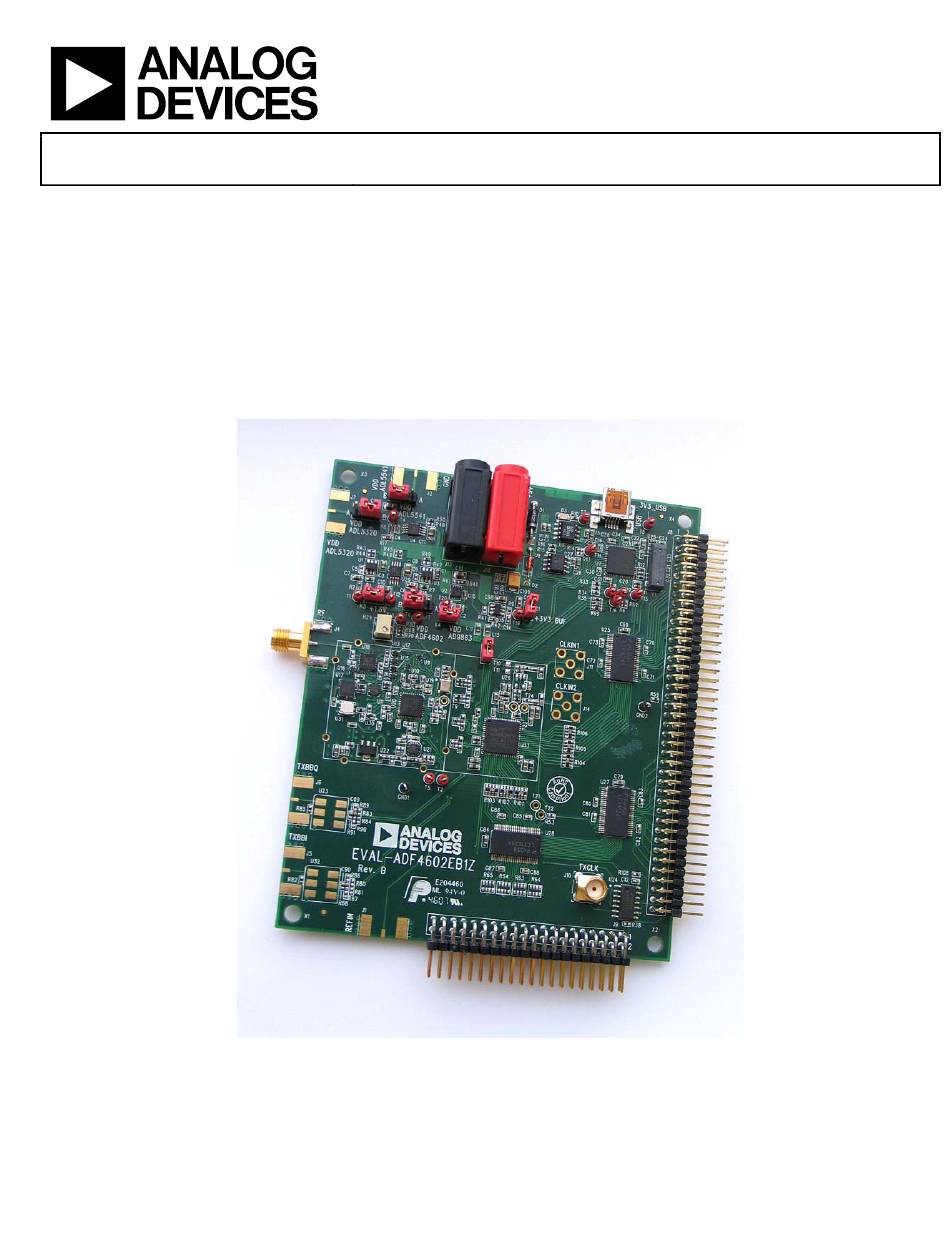

Figure 1. EVAL-ADF4602EB1Z Board
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.461.3113
EVAL-ADF4602EB1Z
TM
software allows real time FFT, time domain,
©2007 Analog Devices, Inc. All rights reserved.
Board
www.analog.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-ADF4602EB1Z and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices EVAL-ADF4602EB1Z

Summary of Contents for Analog Devices EVAL-ADF4602EB1Z

  • Page 1 Devices for its use, nor for any infringements of patents or other rights of third parties that may result One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. from its use. Analog Devices reserves the right to change devices or specifications at any time Tel: 781.329.4700 www.analog.com...
  • Page 2 Output power of +13dBm is achievable at the antenna output, INTRODUCTION while still meeting femtocell ACLR requirements as specified in The EVAL-ADF4602EB1Z evaluation board is designed to 3GPP WCDMA standard TS25.104. allow the user to evaluate the performance of the ADF4602...
  • Page 3 Preliminary Technical Data EVAL-ADF4602EB1Z J11 40 pin connector J10 80 pin connector Figure 2. EVAL-ADF4602EB1Z block diagram Rev. PrC | Page 3 of 37...

  • Page 4: Table Of Contents

    EVAL-ADF4602EB1Z Preliminary Technical Data TABLE OF CONTENTS Software Installation & USB............5 AD9863 Transmit Section............11 Easy Start Guide................5 AD9863 Receive Section ............12 Starting software & USB Control ..........5 Clocking..................12 Software Description................ 6 Schematics, Layout and Bill of Materials ........15 Overview..................

  • Page 5: Software Installation & Usb

    Active as in Figure 6. Figure 6. USB Active If the evaluation board is not connected, a warning box will appear EVAL-ADF4602EB1Z not detected!, Figure 3. Found New Hardware Wizard and the USB will display as not connected in the lower If the Hardware Installation box in Figure 4 appears, left hand corner of the screen –...

  • Page 6: Software Description

    In this example a single write to register 0 would take place. Figure 8. Correct setup of register 22 for control of GPO[1:4]. In the screenshot, GPO3 and GPO4 are set high Figure 9. Screenshot of EVAL-ADF4602EB1Z software Rev. PrC | Page 6 of 37...
  • Page 7 Compatibility with Visual Analog software The on-board regulators are controlled from the main software The Visual Analog software and the EVAL-ADF4602EB1Z panel. Each regulator can be individually turned on or off as software should not be operated simultaneously on a single shown in Figure 10.

  • Page 8: Hardware Description

    L(nH) L(nH) Figure 11 shows the architecture of the RF front end section of the EVAL-ADF4602EB1Z evaluation board. It is designed to 2140 allow a local class BS operating in band 1, with monitoring of 1950 WCDM/GSM signals in bands 850,900,1800,1900 and WCDMA band 1.
  • Page 9 Preliminary Technical Data EVAL-ADF4602EB1Z Switch Control GPO1 GPO2 GPO3 GPO4 The ADF4602 general purpose digital outputs [GPO1:4] are BST Tx & Rx used to control the RF switches. Table 3 shows the truth table 869-894MHz monitoring for the various modes of transmit and receive. See the board schematic for more details of the implementation.
  • Page 10 EVAL-ADF4602EB1Z Preliminary Technical Data Figure 13. Tx EVM performance. TM5, 8 Channels Output Power = +13dBm. EVM = 4%, Peak Code Domain Error = -48dB Rev. PrC | Page 10 of 37...

  • Page 11: Ad9863 Baseband Input/Output

    Preliminary Technical Data EVAL-ADF4602EB1Z Half Duplex 24 (HD24) mode. Two 12 bit parallel Rx AD9863 BASEBAND INPUT/OUTPUT data buses or two 12-bit parallel Tx data buses. The AD9863 digital baseband inputs and outputs accommodate For FDD (Frequency Division Duplex) WCDMA, the AD9863 a variety of modes for data transfer.

  • Page 12: Ad9863 Receive Section

    × OUTFSMAX connector is designed to interface to the HSC-ADC-EVALB- DC data acquisition board from Analog Devices. This board Using these equations, R is set to 120 Ω to give 1.2V common can be used to capture blocks of digital data from the ADC for mode voltage, and R is set to 63Ω...
  • Page 13 38.4MHz. The ADC is clocked at half this frequency by setting. enabling the ADC divide by 2 bit. IFACE3 provides the necessary clock for the interleaved data (38.4MHz), and Figure 15. EVAL-ADF4602EB1Z connected to HSC-ADC-EVALB-DC data acquisition board Rev. PrC | Page 13 of 37...
  • Page 14 EVAL-ADF4602EB1Z Preliminary Technical Data Figure 16. Screenshot of Visual Analog Software. The RFinput is a single tone carrier offset 200kHz from the ADF4602 receive frequency. Rev. PrC | Page 14 of 37...

  • Page 15: Schematics, Layout And Bill Of Materials

    Preliminary Technical Data EVAL-ADF4602EB1Z SCHEMATICS, LAYOUT AND BILL OF MATERIALS SCHEMATICS Figure 17. Schematic Rev. PrC | Page 15 of 37...
  • Page 16 EVAL-ADF4602EB1Z Preliminary Technical Data Figure 18. Schematic (Continued) Rev. PrC | Page 16 of 37...
  • Page 17 Preliminary Technical Data EVAL-ADF4602EB1Z Figure 19. Schematic (Continued) Rev. PrC | Page 17 of 37...
  • Page 18 EVAL-ADF4602EB1Z Preliminary Technical Data Figure 20. Schematic (Continued) Rev. PrC | Page 18 of 37...
  • Page 19 Preliminary Technical Data EVAL-ADF4602EB1Z Figure 21. Schematic (Continued) Rev. PrC | Page 19 of 37...
  • Page 20 EVAL-ADF4602EB1Z Preliminary Technical Data Figure 22. Schematic (Continued) Rev. PrC | Page 20 of 37...
  • Page 21 Preliminary Technical Data EVAL-ADF4602EB1Z Figure 23. Schematic (Continued) Rev. PrC | Page 21 of 37...
  • Page 22 EVAL-ADF4602EB1Z Preliminary Technical Data Figure 24. Schematic (Continued) Rev. PrC | Page 22 of 37...
  • Page 23 Preliminary Technical Data EVAL-ADF4602EB1Z Figure 25. Schematic (Continued) Rev. PrC | Page 23 of 37...
  • Page 24 EVAL-ADF4602EB1Z Preliminary Technical Data Figure 26. Schematic (Continued) Rev. PrC | Page 24 of 37...

  • Page 25: Pcb Layout

    Preliminary Technical Data EVAL-ADF4602EB1Z PCB LAYOUT Figure 27. Layer 1 Component side – gerber files included on CD Rev. PrC | Page 25 of 37...

  • Page 26: Bill Of Materials

    EVAL-ADF4602EB1Z Preliminary Technical Data BILL OF MATERIALS TOLE RANC PART NAME PART TYPE Value VALUE MFG #1 NUMBER PART DESC STOCK CODE ±10% C0603 CAPACITOR, 1UF X5R 16V KEMET C0603C105K4PAC FEC 1288256 10uF ±10% C0805 CAPACITOR, 10UF X5R 16V 0805...
  • Page 27 Preliminary Technical Data EVAL-ADF4602EB1Z ±2.56 CAPACITOR, ACCU-P 3.9PF 25V 3.9pF C0402 0402 04023J3R9BBSTR FEC 1100625 CAP_TBA C0402 SMD Capacitor - Loop Filter Not Inserted Not Inserted Not Inserted CAP_TBA C0402 SMD Capacitor - Loop Filter Not Inserted Not Inserted Not Inserted...
  • Page 28 EVAL-ADF4602EB1Z Preliminary Technical Data C0402 SMD Capacitor Not Inserted Not Inserted Not Inserted C0402 SMD Capacitor Not Inserted Not Inserted Not Inserted C0402 SMD Capacitor Not Inserted Not Inserted Not Inserted C0402 SMD Capacitor Not Inserted Not Inserted Not Inserted...
  • Page 29 Preliminary Technical Data EVAL-ADF4602EB1Z C116 ±10% C0402 CAPACITOR, 0402 1.0NF 50V PHYCOMP 2238 587 15623 FEC 3019380 C117 ±10% C0402 CAPACITOR, 0402 1.0NF 50V PHYCOMP 2238 587 15623 FEC 3019380 C118 10uF ±20% C0603 CAPACITOR, 10UF X5R 6.3V 0603 KEMET...
  • Page 30 EVAL-ADF4602EB1Z Preliminary Technical Data RD_EDG E_RF HEADER8 CONN HEADER 80POS .100" R/A Digikey HEADER80 GOLD MOLEX 90122-0800 WM8192-ND HEADER4 CONN HEADER 40POS .100" R/A Digikey HEADER40 GOLD MOLEX 90122-0780 WM8189-ND MULTICOM JACK, SMA B/HEAD PCB 19-46-1-TGG FEC 1169631 JACK, SMA B/HEAD PCB...
  • Page 31 Preliminary Technical Data EVAL-ADF4602EB1Z 100M 1000 ohms 100M FERRITE CHIP 1000 OHM 100MA Digikey 490- BEAD L0603 0603 MURATA BLM18BD102SN1D 1024-1-ND High Frequency SMD 0402 0402CS- IND_TBA 47nH ±2% L0402 Inductor Coilcraft 0402CS-47NXGLU 47NXGLU LINK- JUMPER2\SI 3P_TEXT HEADER, 1 ROW 3WAY & JUMPER M20-9990346 &...
  • Page 32 EVAL-ADF4602EB1Z Preliminary Technical Data R0402 SMD Resistor Not Inserted Not Inserted Not Inserted ±5% R0402 RESISTOR, RC31 0402 0R PHYCOMP 232270591001 FEC 9232516 ±5% R0402 RESISTOR, RC31 0402 0R PHYCOMP 232270591001 FEC 9232516 VRES-TOP- VRES_SM ±10% TRIMMER, SMD 11 TURN 10K...
  • Page 33 Preliminary Technical Data EVAL-ADF4602EB1Z RES_PACK_ RESPACK SMD_4 _EXB38V RES ARRAY 4 RES SMD Not Inserted Not Inserted Not Inserted RES_PACK_ RESPACK SMD_4 _EXB38V RES ARRAY 4 RES SMD Not Inserted Not Inserted Not Inserted ±5% R0402 RESISTOR, RC31 0402 0R...
  • Page 34 EVAL-ADF4602EB1Z Preliminary Technical Data RES_PACK_ RESPACK Panasonic - Digikey R106 SMD_4 ±5% _EXB38V RES ARRAY 22 OHM 5% 4 RES SMD EXB-38V220JV Y9220CT-ND R107 ±1% R0402 RESISTOR, RC32H 0402 3K9 PHYCOMP 232270673902 FEC 9239308 R108 ±1% R0402 RESISTOR, RC32H 0402 10K...
  • Page 35 Preliminary Technical Data EVAL-ADF4602EB1Z TESTPOI TESTPOINT TERMINAL, PCB RED Not Inserted Not Inserted Not Inserted TESTPOI TESTPOINT TERMINAL, PCB RED Not Inserted Not Inserted Not Inserted TESTPOI TESTPOINT TERMINAL, PCB RED Not Inserted Not Inserted Not Inserted ADP3330 High Accuracy Low...
  • Page 36 EVAL-ADF4602EB1Z Preliminary Technical Data ADL5542 50 MHz to 6 GHz RF/IF ANALOG ADI Free ADL5542 CP-8-2 Gain Block. DEVICES ADL5542ACPZ-R7 Issue ADL5320 400 MHz to 2700 MHz ANALOG ADI Free ADL5320 SOT89 Pre-driver RF Amplifier DEVICES ADL5320ARKZ-R7 Issue ADT1-1WT CD542...

  • Page 37: Ordering Guide

    Preliminary Technical Data EVAL-ADF4602EB1Z ESD CAUTION ORDERING GUIDE Model Description EVAL-ADF4602EB1Z Evaluation Board Rev. PrC | Page 37 of 37...
