FEATURES
General-purpose PLL evaluation board (the synthesizer, VCO,
and loop filter for generating generic PLL standards are
not included in the evaluation board package)
Compatible with
ADF4110,
ADF4111
ADF4116,
ADF4117
ADF4107
Accompanying software allows complete control of
synthesizer functions from a PC
Battery operated: choice of 3 V or 5 V supplies
Rogers material substrate for improved RF performance
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.

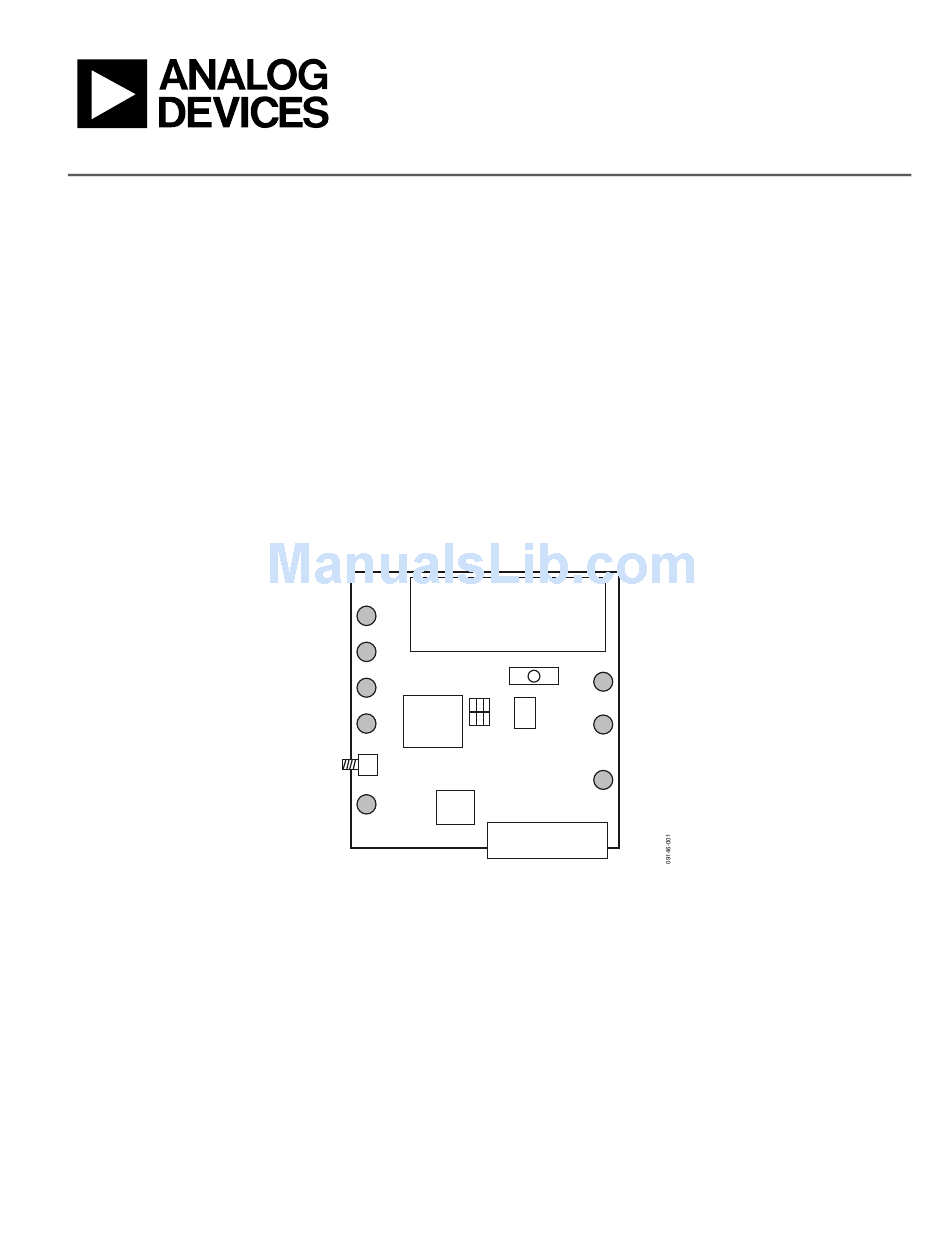

PLL Frequency Synthesizer Evaluation Board
FUNCTIONAL BLOCK DIAGRAM
V
DD
V
VCO
TEST
VCO
TEST
SMA
RF
OUT
SOCKET
REF
TCXO
IN
www.BDTIC.com/ADI
Rev. 0 | Page 1 of 12
Evaluation Board User Guide
GENERAL DESCRIPTION
The EVAL-ADF411xEBZ1 evaluation board is designed to evaluate
the performance of the ADF4110, ADF4111, ADF4116, ADF4117,
and
ADF4107
frequency synthesizers for phase-locked loops
(PLLs). Figure 1 is the functional block diagram of the board
and shows the frequency synthesizer, a PC connector, and an
SMA connector for the reference input, the power supplies, and
an RF output. There are also footprints for a loop filter and a
voltage controlled oscillator (VCO) incorporated on the board. A
cable is included in the evaluation board package to connect the
evaluation board to a PC printer port.
The evaluation board package contains Windows® based software
to allow easy programming of the frequency synthesizer.
9V BATTERY
POWER SWITCH
ON
OFF
V
P
FILTER
MUXOUT
ADF411x
CE
EVAL-ADF411xEBZ1
PC CONNECTOR
Figure 1.
UG-161
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices EVAL-ADF411xEBZ1
Summary of Contents for Analog Devices EVAL-ADF411xEBZ1
-
Page 1: Features
PLL Frequency Synthesizer Evaluation Board FEATURES GENERAL DESCRIPTION The EVAL-ADF411xEBZ1 evaluation board is designed to evaluate General-purpose PLL evaluation board (the synthesizer, VCO, and loop filter for generating generic PLL standards are the performance of the ADF4110, ADF4111, ADF4116, ADF4117,... -
Page 2: Table Of Contents
UG-161 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Loop Design...................3 General Description ................. 1 Evaluation Board Software...............5 Functional Block Diagram .............. 1 Integer-N Software Description ..........5 Revision History ................2 Fractional-N Software Description..........6 ... -
Page 3: Evaluation Board Hardware
The evaluation board package includes a cable for connecting the connector provides the necessary reference input. The PLL EVAL-ADF411xEBZ1 to the printer port of a PC. The silkscreen comprises the frequency synthesizer, the passive loop filter, and and cable diagram for the evaluation board are shown in Figure 2 the VCO. - Page 4 UG-161 Evaluation Board User Guide OSCILLOSCOPE SPECTRUM ANALYZER 9V BATTERY POWER SWITCH SOCKET MUXOUT ADF411x SOCKET TCXO EVAL-ADF411xEBZ1 PC CONNECTOR Figure 4. Evaluation Setup www.BDTIC.com/ADI Rev. 0 | Page 4 of 12...
-
Page 5: Evaluation Board Software
Frequency window appears. Type the RF output frequency from the installation wizard. The software is installed into the and PFD reference frequency into the appropriate boxes, default directory C:\Program Files\Analog Devices\ADF_Rev3.x\. and click OK. Using the Software Click RF Charge Pump Current Setting 2 or RF Charge... -
Page 6: Fractional-N Software Description
Click Update all RF Registers. interface cable is connected. The data is then set up, and other features can be examined. From the C:\Program Files\Analog Devices\ADF_Frac\ directory, double-click ADF_Frac_Revx.exe. Figure 6. Analog Devices Evaluation Software Window www.BDTIC.com/ADI Rev. 0 | Page 6 of 12... -
Page 7: Evaluation Board Schematics
Evaluation Board User Guide UG-161 EVALUATION BOARD SCHEMATICS Figure 7. Evaluation Board Circuit Diagram (Page 1) www.BDTIC.com/ADI Rev. 0 | Page 7 of 12... - Page 8 UG-161 Evaluation Board User Guide Figure 8. Evaluation Board Circuit Diagram (Page 2) www.BDTIC.com/ADI Rev. 0 | Page 8 of 12...
-
Page 9: Bill Of Materials
Evaluation Board User Guide UG-161 BILL OF MATERIALS Table 1. Bill of Materials for the EVAL-ADF411xEBZ1 Name Part Type Value PCB Decal Stock Code Assemble Capacitor 0805 Capacitor 0805 Capacitor 0805 Capacitor 0.1 μF 0603 FEC 499-675 Capacitor 10 pF... - Page 10 Name Part Type Value PCB Decal Stock Code Assemble Resistor 330 Ω 0603 FEC 911-143 Resistor 330 Ω 0603 FEC 911-143 Resistor 330 Ω 0603 FEC 911-143 Resistor 18 Ω 0603 FEC 911-021 Resistor 18 Ω 0603 FEC 911-021 Resistor 18 Ω...
- Page 11 Evaluation Board User Guide UG-161 NOTES www.BDTIC.com/ADI Rev. 0 | Page 11 of 12...
-
Page 12: Www.bdtic.com/Adi Rev. 0 | Page 2 Of
By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
