Analog Devices EVAL-ADIN1110EBZ User Manual

One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 •

FEATURES

Operates from a single, external 5-30 V supply or from USB
On-board ARM Cortex ADuCM4050 microcontroller
SPI header for access to SPI interface and status signals
Accessible hardware configuration pin switches

EVALUATION KIT CONTENTS

Two EVAL-ADIN1110EBZ evaluation boards
Two mini USB cables
MIDAS-JLINK + ARM-JTAG-20-10 adapter

EQUIPMENT NEEDED

Power supply (choose one of the following):
5-30 V power supply rail to connect to the P1 connector
5-30 V barrel adaptor to connect to the P2 plug
USB cable
Single pair ethernet cable
USB cable
PC running Windows 7 and upward

SOFTWARE NEEDED

FTDI USB driver
Basic UART terminal
CrossCore serial flash programmer software

DOCUMENTS NEEDED

ADIN1110 data sheet
Rev. PrA
Evaluation boards are only intended for device evaluation and not for production purposes.
Evaluation boards as supplied "as is" and without warranties of any kind, express, implied, or
statutory including, but not limited to, any implied warranty of merchantability or fitness for a
particular purpose. No license is granted by implication or otherwise under any patents or other
intellectual property by application or use of evaluation boards. Information furnished by Analog
Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog
Devices for its use, nor for any infringements of patents or other rights of third parties that may result
from its use. Analog Devices reserves the right to change devices or specifications at any time
without notice. Trademarks and registered trademarks are the property of their respective owners.
Evaluation boards are not authorized to be used in life support devices or systems.
Arrow.com.
Downloaded from
Evaluating the ADIN1110 Robust, Industrial, Low Power
10BASE-T1L Ethernet MAC-PHY
EVAL-ADIN1110EBZ User Guide
www.analog.com

GENERAL DESCRIPTION

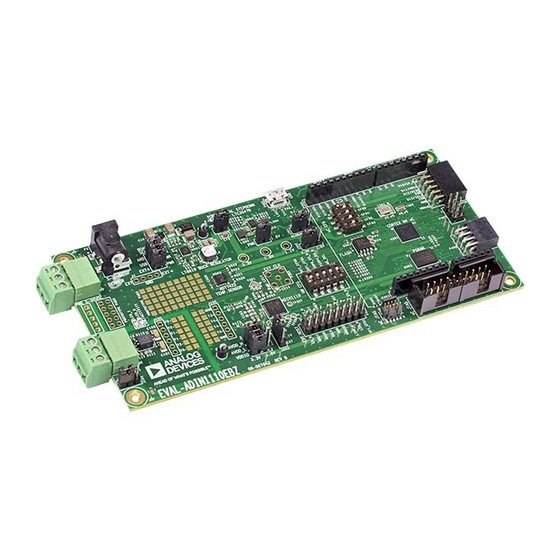

The EVAL-ADIN1110EBZ allows simplified evaluation of the
key features of the ADIN1110 robust, industrial, low power
10BASE-T1L Ethernet MAC-PHY. The EVAL-ADIN1110EBZ
is powered by a single, external, 5-30 V BOARD_PWR supply
rail that can be supplied either via the P1 connector or via the
P2 plug. Alternatively, the board can be powered from USB via
the P5 connector. The supply of choice is selected via the P4
link (see Figure 1).

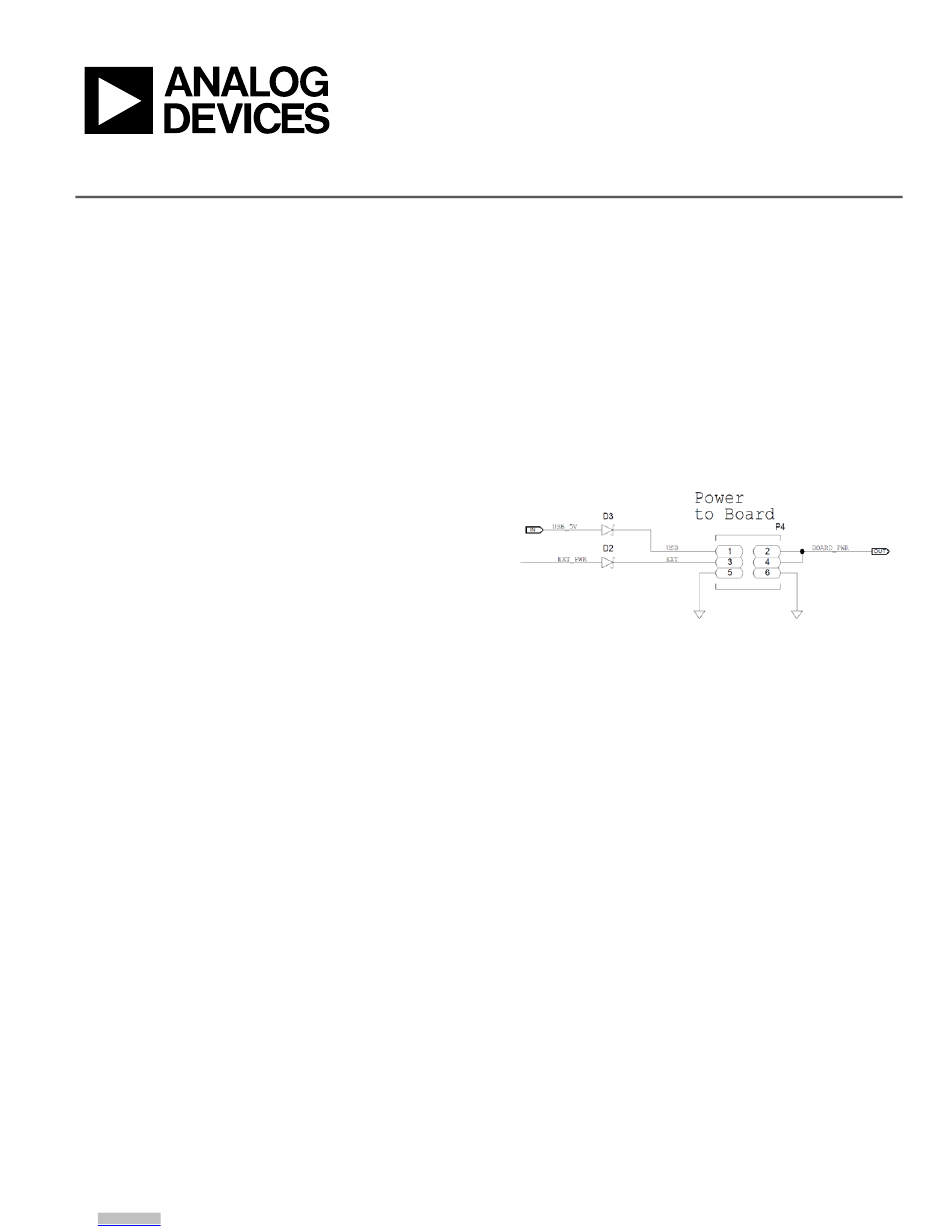

Figure 1. Schematic Snapshot – BOARD_PWR
All ADIN1110 supplies are regulated from the BOARD_PWR
rail, providing supply rails required for AVDD_H, AVDD_L,
VDDIO and DVDD_1P1.
The P7 SPI header is provided for access to the SPI interface
signals and other potential signals of interest. The EVAL-
ADIN1110EBZ is fitted with a 25 MHz crystal (Y3).
For complete specifications for the ADIN1110 device, see the
ADIN1110 data sheet, which must be consulted in conjunction
with this user guide when using the EVAL-ADIN1110EBZ.
