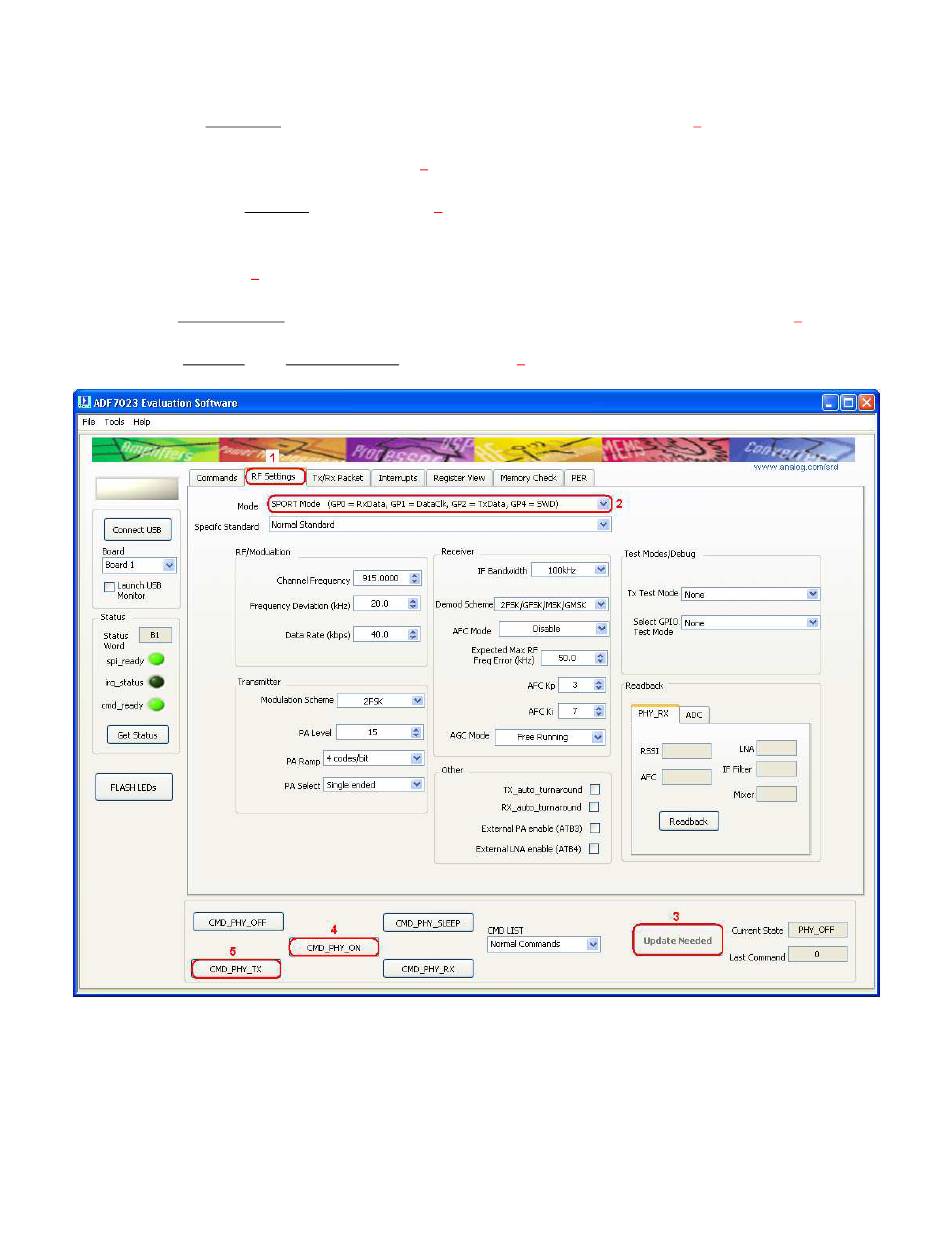

Entering PHY_TX for basic RF Data testing

1. Select the "RF Settings" Tab and set the RF parameters as required. (
2. Select the SPORT Mode . (
3. Ensure part is in PHY_ON (
4. Press Update Needed. This writes the settings to BBRAM and then does a CMD_CONFIG_DEV.
( Figure 29 point (3))
5. Press "CMD_PHY_TX" to enter transmit mode (continuous carrier transmission) (
6. To exit PHY_TX press CMD_PHY_ON (
Figure 29 point (2))
Figure 29 point (4))
Figure 29 point (4))
Figure 29
R e v 1 . 1
Figure 29 point (1))
| Page 21
Figure 29 point (5))
