Mother Board Firmware Update
1. Before beginning this procedure ensure ONLY the board you wish to update the firmware on is connected to the
PC.

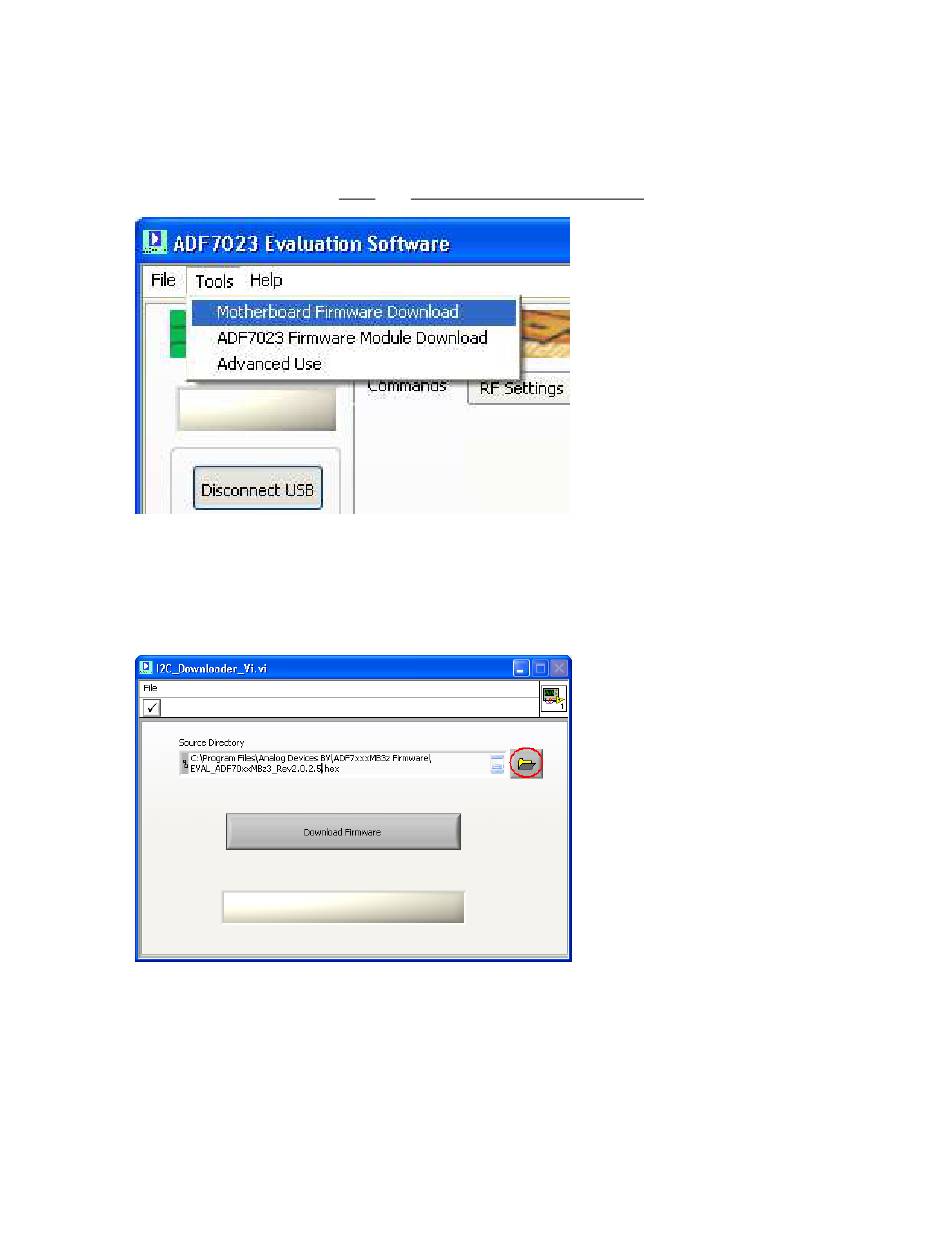

2. To update the firmware select "Tools" -> "Motherboard Firmware Download" (
3.
Select the desired firmware version "EVAL_ADF7XXXMB3Z_Rev_2.0.2.5.hex" from the default directory
Figure 23
( ).
Figure 22
Figure 23
