4.4.4 Electrical Installation, Control
Terminals
To connect the cable to the terminal:
1. Strip insulation of 9-10 mm
2. 1)
Insert a screwdriver
3. Insert the cable in the adjacent circular hole.
4. Remove the screwdriver. The cable is now
mounted to the terminal.
To remove the cable from the terminal:
1.
Insert a screw driver
2. Pull out the cable.
1)
Max. 0.4 x 2.5 mm
Wiring to Control Terminals

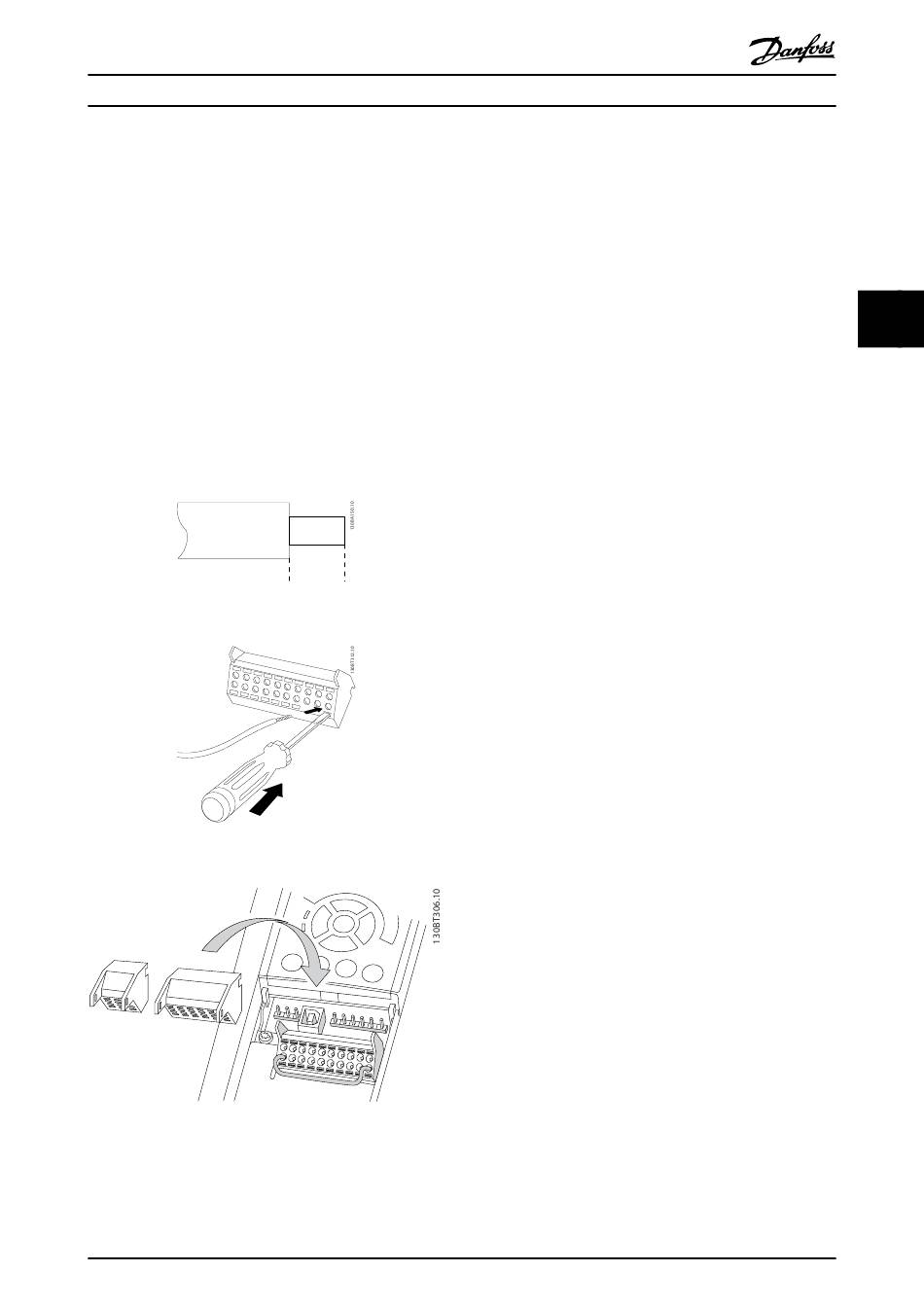

Illustration 4.14 Strip Isolation
Illustration 4.15 Insert Screwdriver and Cable
Illustration 4.16 Control Cable Terminals
MG33X402
Operating Instructions
in the square hole.
1) in the square hole.
9 - 10 mm
(0.37 in)
