4.4 Electrical Installation

91 (L1)
3 Phase
92 (L2)
power
93 (L3)
input
95
50 (+10 V OUT)
+10Vdc
0/-10Vdc -
53 (A IN)
+10Vdc
0/4-20 mA
0/-10Vdc -
54 (A IN)
+10Vdc
0/4-20 mA
55 (COM A IN)
12 (+24V OUT)
13 (+24V OUT)
18 (D IN)
19 (D IN)
20 (COM D IN)
27
*
29
32 (D IN)
33 (D IN)
*
37 (D IN)

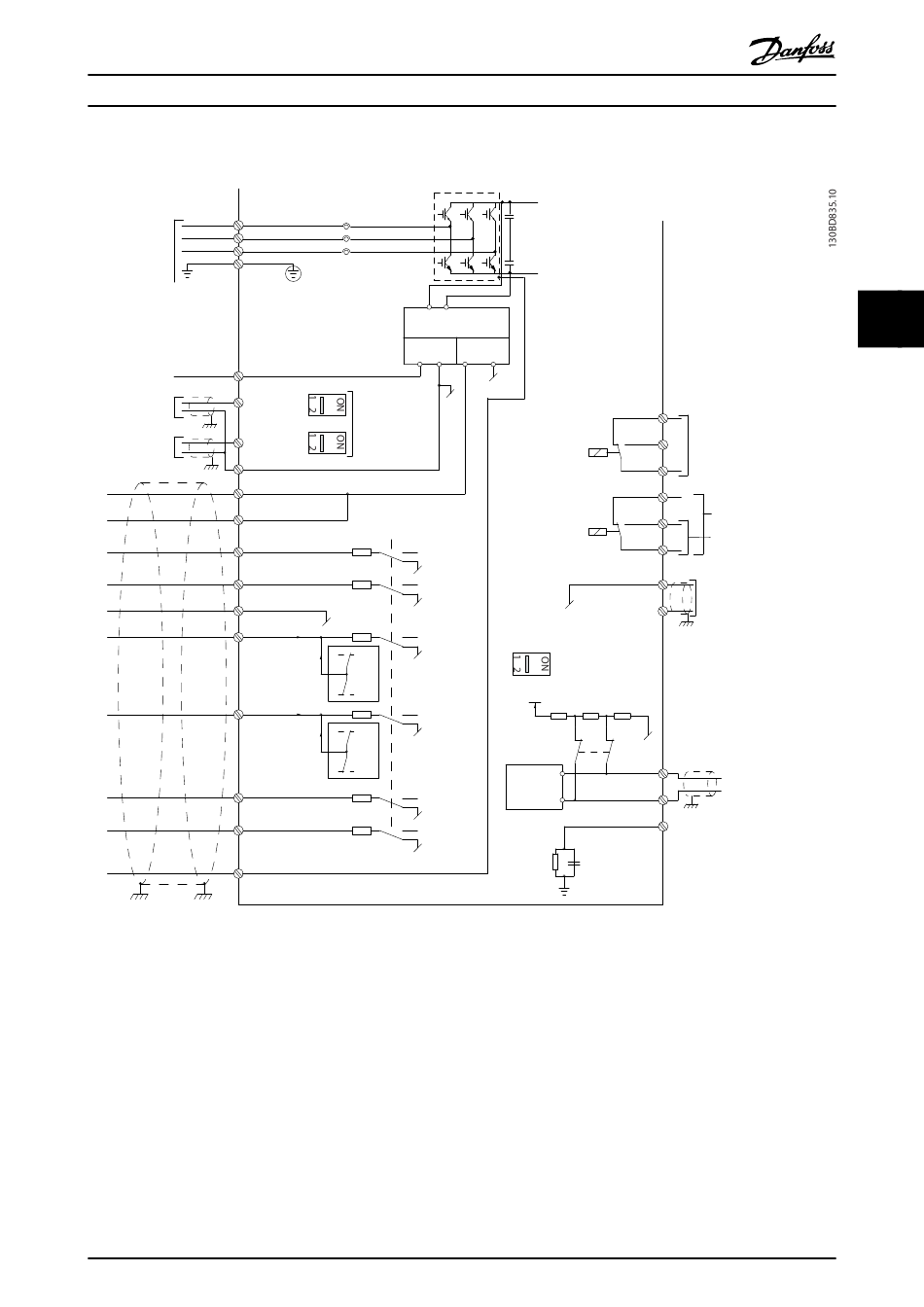

Illustration 4.12 Diagram showing all electrical terminals without options.
A = analog, D = digital
Terminal 37 is used for Safe Stop. For instructions on Safe Stop installation please refer to the VLT
Torque Off Operating Instructions.
