How to Install

4.2.4 Lifting

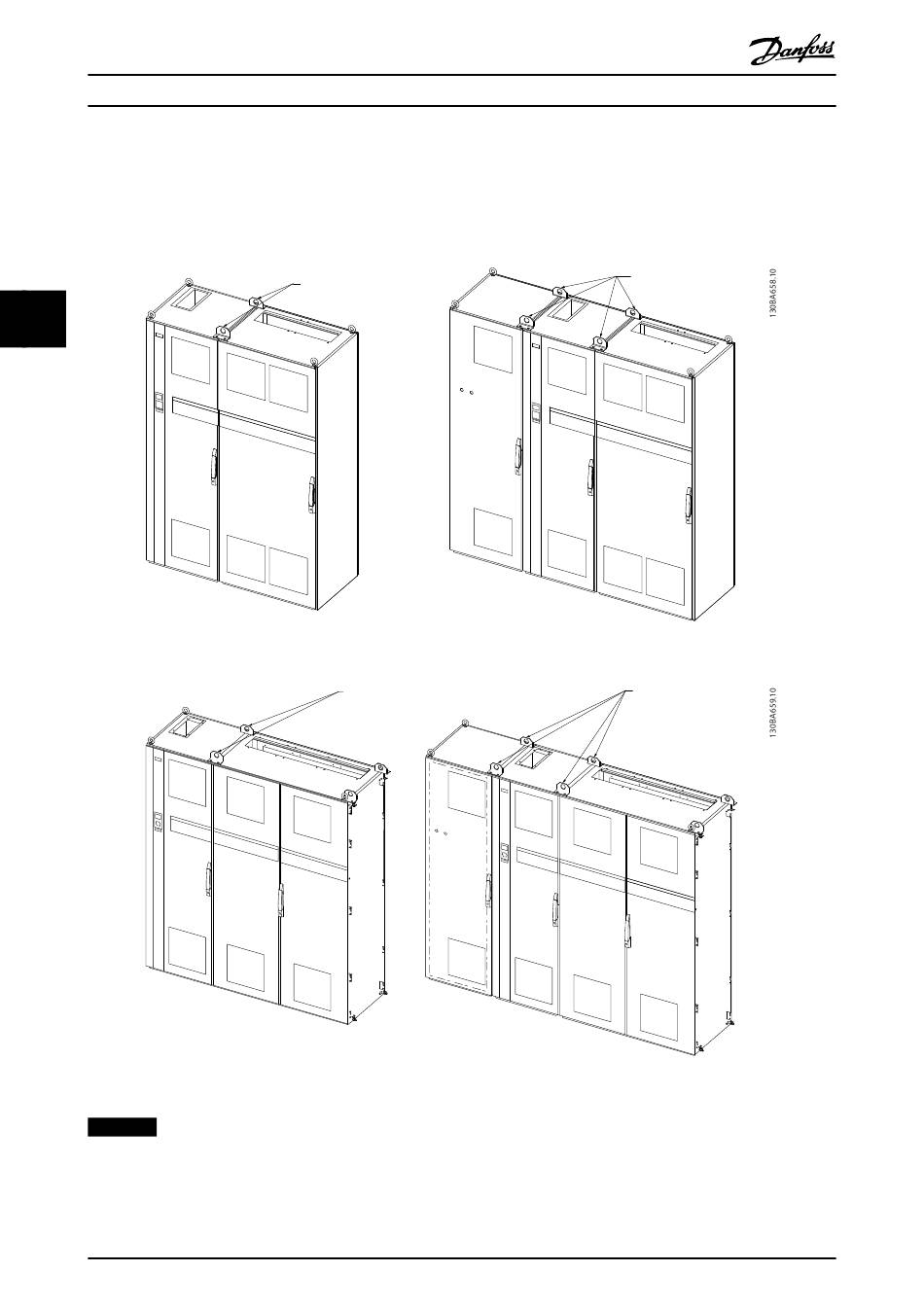

Illustration 4.4 and Illustration 4.5 show the main load carrying points (1 and 2 in the illustrations) of the F-frame cabinets.
Lift the cabinets with all the lifting eyes and/or use a bar to avoid bending the lifting holes of the frequency converters. The
same principle is applied for the AFE cabinets.
4 4
Illustration 4.4 Main Load Carrying Points
Illustration 4.5 Main Load Carrying Points
NOTICE
The lifting cable angle should be 60° or greater. The spreader bar is an acceptable way of lifting. A spreader bar is an
acceptable way to lift the F Frame.
26
Operating Instructions
1
F1
1
F2
Danfoss A/S © Rev. 05/2014 All rights reserved.
2
F3
2
F4
MG33X402
