SplitBox

Safety

General remarks

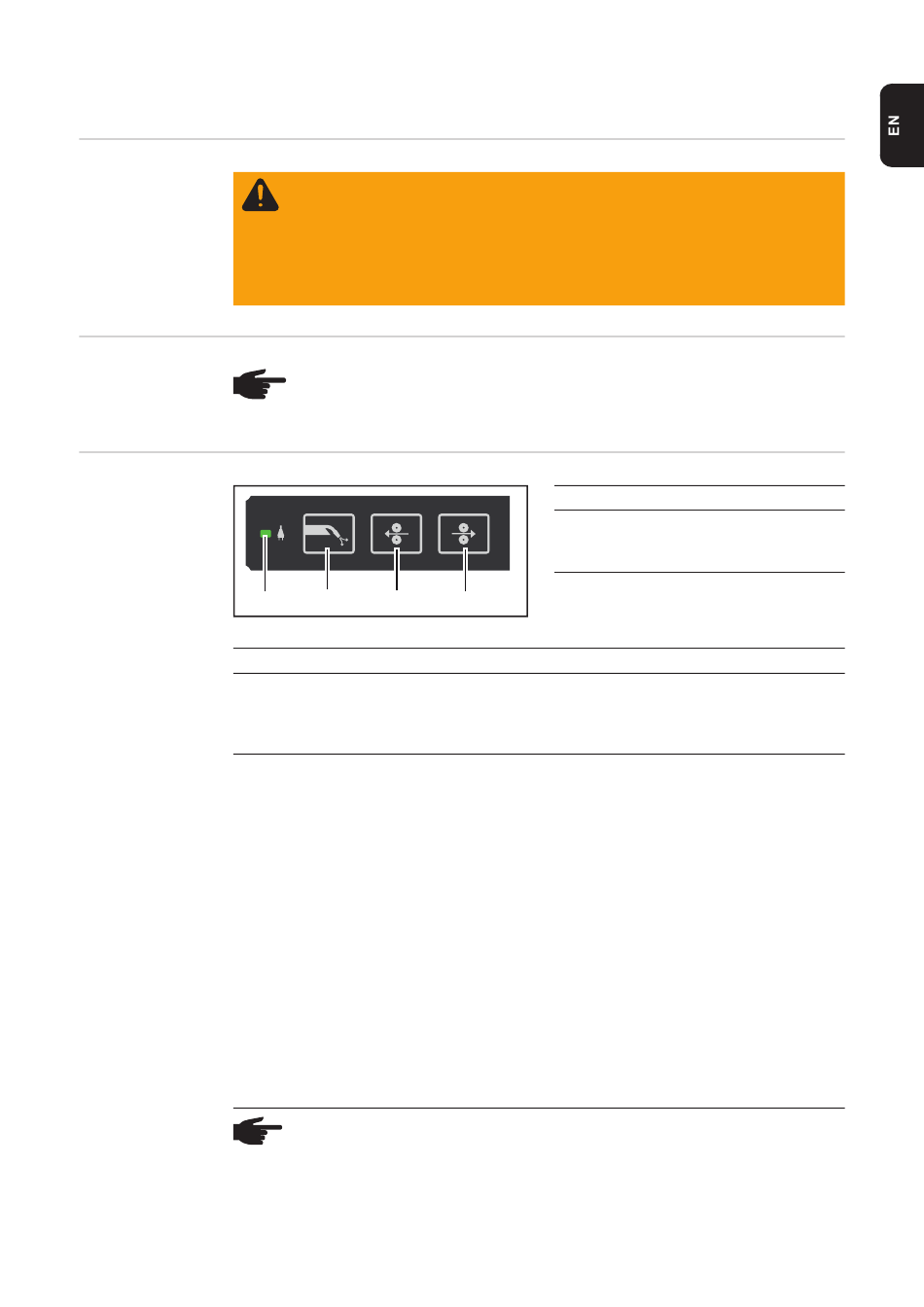

Gas test/wire
threading control
panel (optional)
No
(2)
(3)
WARNING! Operating the equipment incorrectly can cause serious injury and
damage. All the functions described may only be used by trained and qualified
personnel. Do not use the functions described until you have thoroughly read and
understood the following documents:
- this document
- all the operating instructions for the system components, especially the safe-
ty rules
NOTE! Depending on the system configuration, either the unreeling wirefeeder or
the robot hosepack drive unit is controlled by the gas-test, wire retract and wire
threading buttons.
(2)
(1) (3)
Function
Gas-test button
for setting the required gas flow rate on the pressure regulator
- Gas will flow out for 30 seconds after the gas-test button is pressed. Press
the button again to stop the gas test flow before the end of this period.
Wire retract button
for retracting the wire electrode with no accompanying flow of gas or current
- While the button is being pressed, the wirefeeder runs at the preset wire re-
tract speed
The wire electrode can be retracted using one of two methods:
Variant 1
Retracting the wire electrode using the preset wire retract speed:
- Press and hold the wire retract button
- The wire electrode will be retracted 1 mm (0.039 in.) after the wire re-
tract button is pressed
- After a short pause, the wirefeeder continues to retract the wire elec-
trode. If the wire retract button remains pressed, the speed will increase
every second at a rate of 10 m/min (393.70 ipm) until the preset wire re-
tract speed is reached
Variant 2
Retracting the wire electrode in 1 mm increments (0.039 in. increments) – always
press the wire retract button for less than one second (tap)
NOTE! Do not allow long lengths of wire electrode to be retracted, as the wire
electrode is not wound onto the wirespool when retracted.
No Function
(1) Operating status LED
shows steady green when the de-
vice is ready for use
