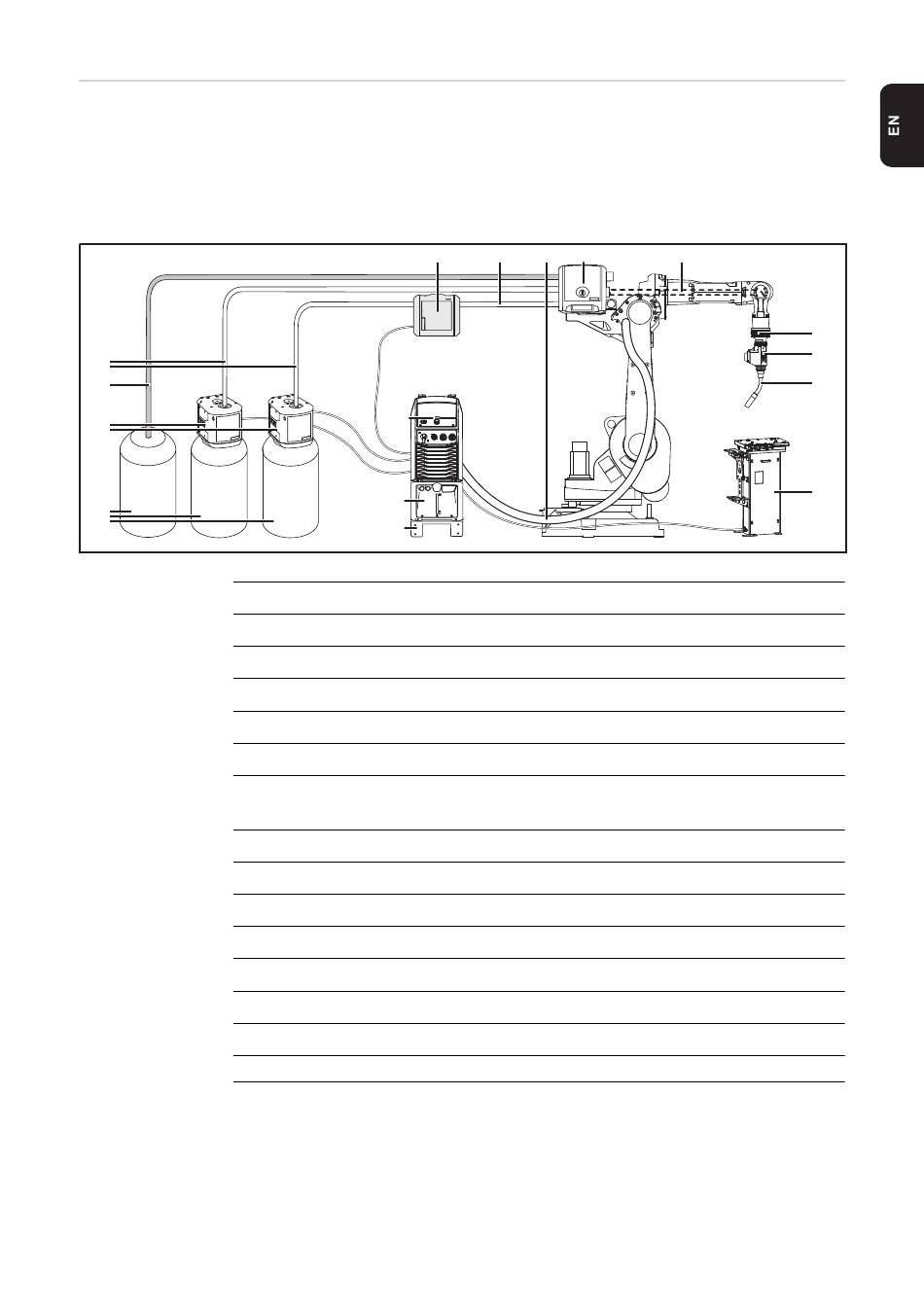

Overview of the The TPS/i PAP welding system is available in three different variants:
TPS/i PAP weld- -
ing system -
-
The variants differ in terms of the possible wirefeeding distance.
max.
15 m
(4)
(3)
(2)
A B
(1)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
Variant A: with PowerLiner (3)
Variant B: with an unreeling wirefeeder (2)
Variant C: with two unreeling wirefeeders (2) and (5)
(5)
max.15m
(15)
C
(14)
(13)
Wire drum
B and C only: Unreeling wirefeeder, for example WF 30 R REEL 2R
A only: PowerLiner (max. 8 m) or wirefeeding hose (max. 6 m)
B and C only: Wirefeeding hose
C only: Unreeling wirefeeder, for example WF 30 R REEL 2R
Interconnecting hosepack
Media splitter, for example SB 500i R PAP
"QuickConnect" option
Torch hosepack
CrashBox and robot flange
WF 25i Robacta Drive
Robot welding torch
Service station, for example Robacta TX/i
Trolley or upright console
Cooling unit, for example CU 1400i Pro
Power source, for example TPS 320i
(4) (6) (7)
max.15m
(8)
(9)
(10)
(11)
(12)
