(4)
(5)
(6)
(7)
(8)
(9)
(10)
Side view (right variant)
SB 60i R:
control elements,
connections and
mechanical com-
ponents
Front
46
Welding torch connection
SpeedNet connection socket
for connecting the SpeedNet cable from the interconnecting hosepack
Blanking cover for option 5
Shielding gas connection
(+) current socket
for connecting the power cable from the interconnecting hosepack
Blanking cover for option 2
Wire infeed

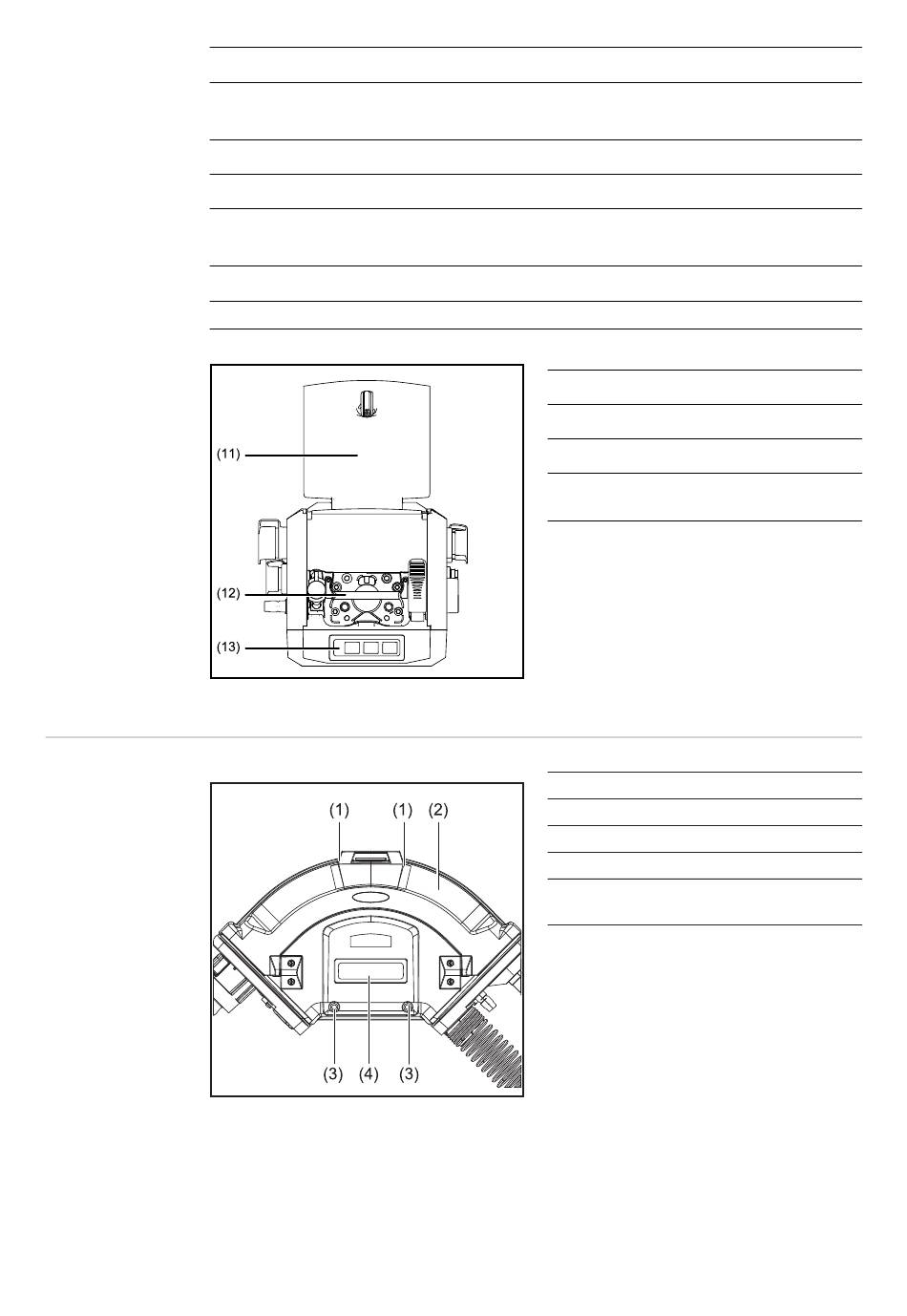

A
No. Function
(11) Cover
(12) Implementation
(13) Gas test / wire threading control
panel (option)
No. Function
(1) Hole for fitting to robot
(2) Cover
(3) Hole for fitting to robot
(4) Blanking cover / gas test / wire
threading control panel option
B
