Fitting the unreeling wirefeeder

Fitting the unreel-
ing wirefeeder
The unreeling wirefeeder is designed exclusively for vertical installation on the following
mounts:
-
-
Operating a 2-roller WF30i REEL R /2R unreeling wirefeeder with a basket-type spool is
not permitted.
1
2
3
WARNING! An electric shock can be fatal. If the power source is connected to the
mains supply while the work described below is being carried out, there is a risk
of serious injury and damage. Only carry out the work described below when:
- the power source mains switch is in the "O" position
- the power source is disconnected from the mains
WF Mounting WALL 4,100,846
WF Mounting Drum 4,100,845
In accordance with the fitting instructions, mount the unreeling wirefeeder onto the wall
bracket or the wire drum mount
Use the QuickConnect option to connect the wirefeeding hose to the unreeling wire-
feeder
Use Fronius SpeedNet to connect the unreeling wirefeeder to the power source in the
welding system

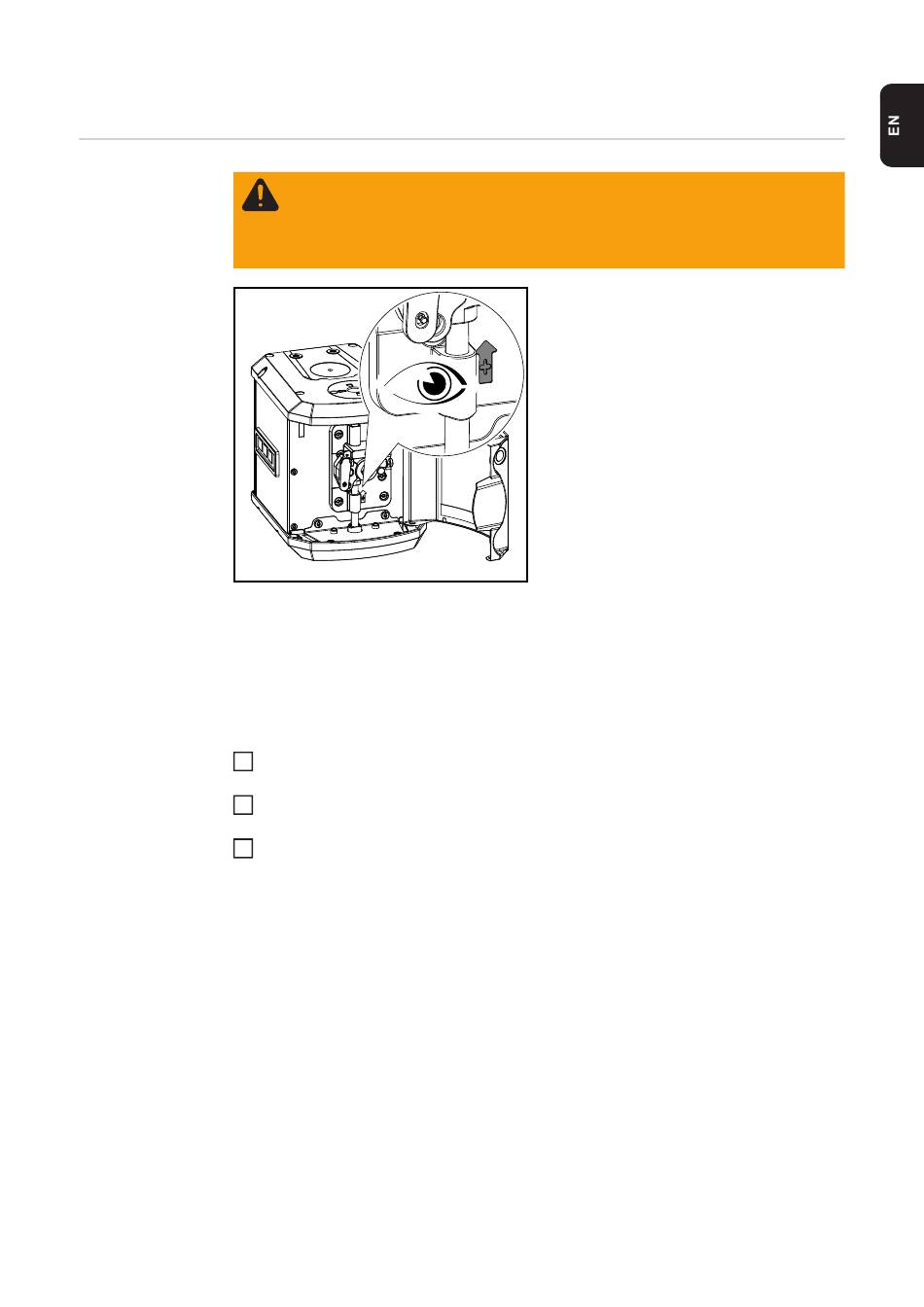

Ensure that the unreeling wirefeeder is fit-
ted in the correct direction. The threading
direction of the wire electrode is marked
with an arrow.
