9. Appendix
9
A ppendix
Tables, drawings, guides, and technical details as follows:
ç Specifications
ç AudioPortNumbering
ç DIPSwitchStates
ç MechanicalDrawings
ç OutputResolutions(Scaler)
ç FactoryDefaultSettings
ç FactoryEDIDList
ç FirmwareReleaseNotes
ç ApplicationNote(LW-AN-001)
ç FurtherInformation
VINX-1x0-HDMIExtenders–User'sManual

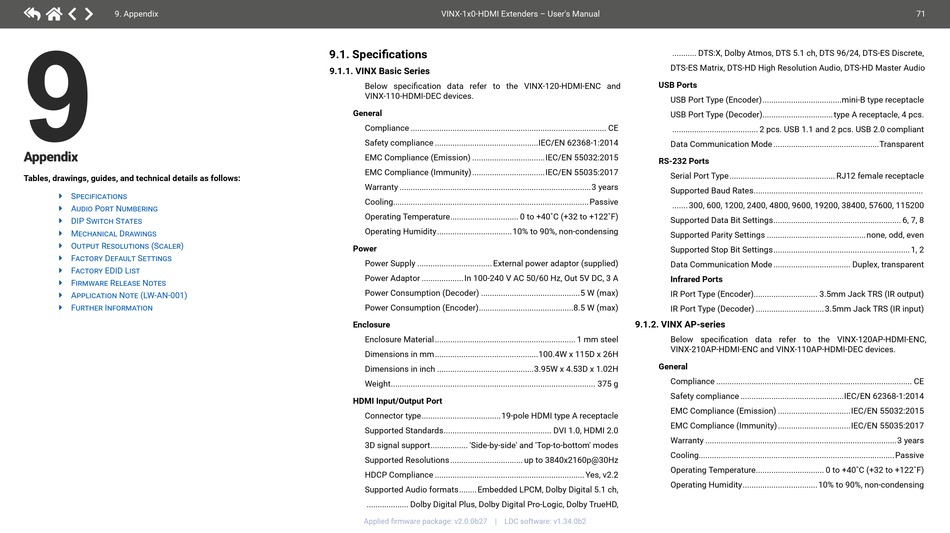

9.1. Specifications

9.1.1. VINX Basic Series

Below specification data refer to the VINX-120-HDMI-ENC and
VINX-110-HDMI-DEC devices.
General
Compliance ......................................................................................... CE
Safety compliance ...............................................IEC/EN62368-1:2014
EMC Compliance (Emission) .................................IEC/EN55032:2015
EMC Compliance (Immunity) .................................IEC/EN55035:2017
Warranty .......................................................................................3 years
Cooling.........................................................................................Passive
Operating Temperature ............................... 0to+40˚C(+32to+122˚F)
Operating Humidity ..................................10% to 90%, non-condensing
Power
Power Supply .................................. External power adaptor (supplied)
Power Adaptor ................... In100-240VAC50/60Hz,Out5VDC,3A
Power Consumption (Decoder) .............................................5W(max)
Power Consumption (Encoder) ...........................................8.5W(max)
Enclosure
Enclosure Material ................................................................ 1 mm steel
Dimensions in mm ...............................................100.4Wx115Dx26H
Dimensions in inch ............................................3.95Wx4.53Dx1.02H
Weight ............................................................................................. 375g
HDMI Input/Output Port
Connector type ....................................19-pole HDMI type A receptacle
Supported Standards ................................................. DVI 1.0, HDMI 2.0
3D signal support ................. 'Side-by-side' and 'Top-to-bottom' modes
Supported Resolutions ................................. upto3840x2160p@30Hz
HDCP Compliance .................................................................... Yes, v2.2
Supported Audio formats ........EmbeddedLPCM,DolbyDigital5.1ch,
................... DolbyDigitalPlus,DolbyDigitalPro-Logic,DolbyTrueHD,
Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2
........... DTS:X,DolbyAtmos,DTS5.1ch,DTS96/24,DTS-ESDiscrete,
DTS-ES Matrix, DTS-HD High Resolution Audio, DTS-HD Master Audio
USB Ports
USB Port Type (Encoder) ....................................mini-B type receptacle
USB Port Type (Decoder) ................................ typeAreceptacle,4pcs.
....................................... 2 pcs. USB 1.1 and 2 pcs. USB 2.0 compliant
Data Communication Mode ................................................Transparent
RS-232 Ports
Serial Port Type ................................................ RJ12 female receptacle
Supported Baud Rates .............................................................................
....... 300,600,1200,2400,4800,9600,19200,38400,57600,115200
Supported Data Bit Settings .......................................................... 6,7,8
Supported Parity Settings .............................................none, odd, even
Supported Stop Bit Settings .............................................................. 1, 2
Data Communication Mode ................................... Duplex, transparent
Infrared Ports
IR Port Type (Encoder) ............................. 3.5mmJackTRS(IRoutput)
IR Port Type (Decoder) ............................... 3.5mmJackTRS(IRinput)

9.1.2. VINX AP-series

Below specification data refer to the VINX-120AP-HDMI-ENC,
VINX-210AP-HDMI-ENC and VINX-110AP-HDMI-DEC devices.
General
Compliance ......................................................................................... CE
Safety compliance ...............................................IEC/EN62368-1:2014
EMC Compliance (Emission) .................................IEC/EN55032:2015
EMC Compliance (Immunity) .................................IEC/EN55035:2017
Warranty .......................................................................................3 years
Cooling.........................................................................................Passive
Operating Temperature ............................... 0to+40˚C(+32to+122˚F)
Operating Humidity ..................................10% to 90%, non-condensing
