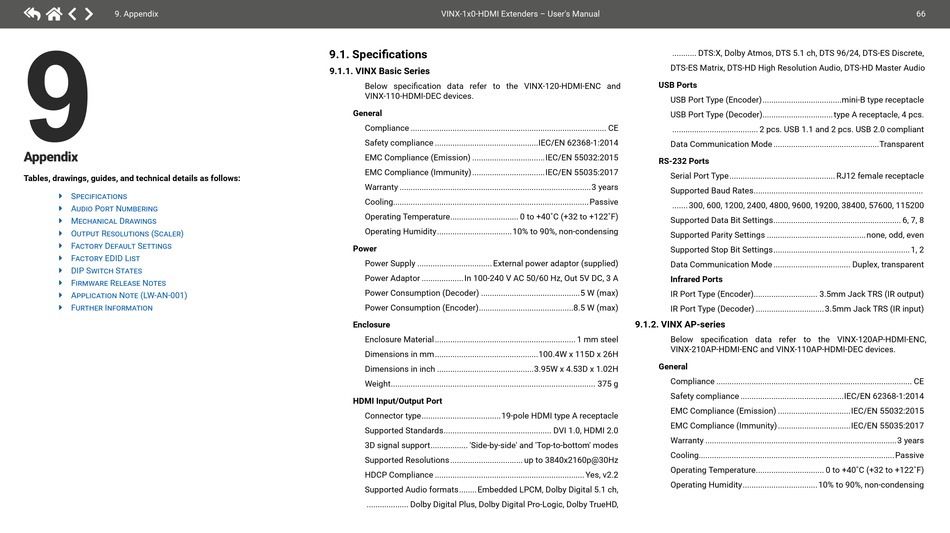

9. Appendix

9
A ppendix
Aables, drawings, guides, and technical details as follows:
ç Specifications
ç Audio Port Numbering
ç Mechanical Drawings
ç Output Resolutions (Scaler)
ç Factory Default Settings
ç Factory EDID List
ç DIP Switch States
ç Firmware Release Notes
ç Application Note (LW-AN-001)
ç Further Information
VINX-1x0-HDMI Extenders – User's Manual

9.1. Specifications

9.1.1. VINX Basic Series

Below specification data refer to the VINX-120-HDMI-ENC and
VINX-110-HDMI-DEC devices.
General
Compliance ......................................................................................... CE
Safety compliance ...............................................IEC/EN 62368-1:2014
EMC Compliance (Emission) .................................IEC/EN 55032:2015
EMC Compliance (Immunity) .................................IEC/EN 55035:2017
Warranty .......................................................................................3 years
Cooling.........................................................................................Passive
Operating Temperature ............................... 0 to +40˚C (+32 to +122˚F)
Operating Humidity ..................................10% to 90%, non-condensing
Power
Power Supply .................................. External power adaptor (supplied)
Power Adaptor ................... In 100-240 V AC 50/60 Hz, Out 5V DC, 3 A
Power Consumption (Decoder) .............................................5 W (max)
Power Consumption (Encoder) ...........................................8.5 W (max)
Enclosure
Enclosure Material ................................................................ 1 mm steel
Dimensions in mm ...............................................100.4W x 115D x 26H
Dimensions in inch ............................................3.95W x 4.53D x 1.02H
Weight ............................................................................................. 375 g
HDMI Input/Output Port
Connector type ....................................19-pole HDMI type A receptacle
Supported Standards ................................................. DVI 1.0, HDMI 2.0
3D signal support ................. 'Side-by-side' and 'Top-to-bottom' modes
Supported Resolutions ................................. up to 3840x2160p@30Hz
HDCP Compliance .................................................................... Yes, v2.2
Supported Audio formats ........Embedded LPCM, Dolby Digital 5.1 ch,
................... Dolby Digital Plus, Dolby Digital Pro-Logic, Dolby TrueHD,
........... DTS:X, Dolby Atmos, DTS 5.1 ch, DTS 96/24, DTS-ES Discrete,
DTS-ES Matrix, DTS-HD High Resolution Audio, DTS-HD Master Audio
USB Ports
USB Port Type (Encoder) ....................................mini-B type receptacle
USB Port Type (Decoder) ................................ type A receptacle, 4 pcs.
....................................... 2 pcs. USB 1.1 and 2 pcs. USB 2.0 compliant
Data Communication Mode ................................................Transparent
RS-232 Ports
Serial Port Type ................................................ RJ12 female receptacle
Supported Baud Rates .............................................................................
....... 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Supported Data Bit Settings .......................................................... 6, 7, 8
Supported Parity Settings .............................................none, odd, even
Supported Stop Bit Settings .............................................................. 1, 2
Data Communication Mode ................................... Duplex, transparent
Infrared Ports
IR Port Type (Encoder) ............................. 3.5mm Jack TRS (IR output)
IR Port Type (Decoder) ............................... 3.5mm Jack TRS (IR input)

9.1.2. VINX AP-series

Below specification data refer to the VINX-120AP-HDMI-ENC,
VINX-210AP-HDMI-ENC and VINX-110AP-HDMI-DEC devices.
General
Compliance ......................................................................................... CE
Safety compliance ...............................................IEC/EN 62368-1:2014
EMC Compliance (Emission) .................................IEC/EN 55032:2015
EMC Compliance (Immunity) .................................IEC/EN 55035:2017
Warranty .......................................................................................3 years
Cooling.........................................................................................Passive
Operating Temperature ............................... 0 to +40˚C (+32 to +122˚F)
Operating Humidity ..................................10% to 90%, non-condensing
66
