6. LW2 Programmers' Reference

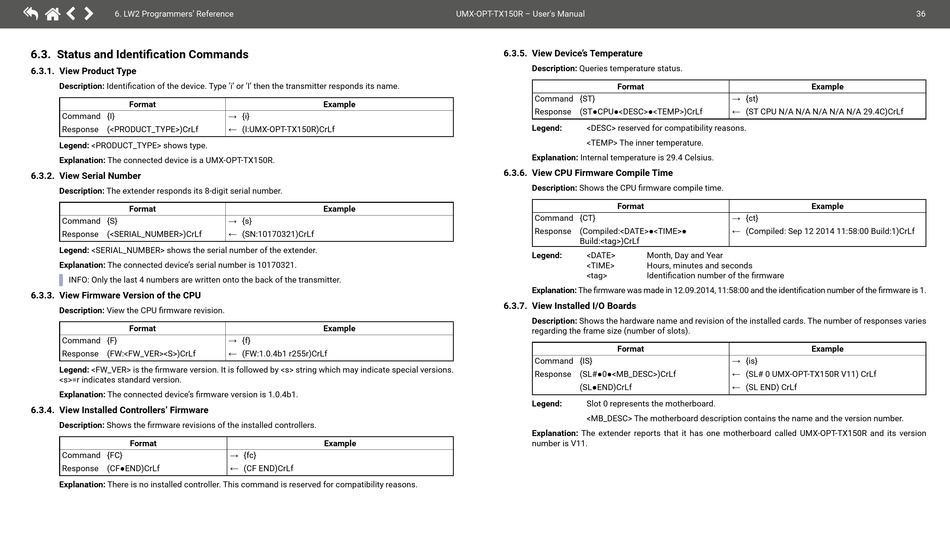

6.3. Status and Identification Commands
6.3.1. View Product Type
Description: Identification of the device. Type 'i' or 'I' then the transmitter responds its name.
Format
Command {I}
Response (<PRODUCT_TYPE>)CrLf
Legend: <PRODUCT_TYPE> shows type.
Explanation: The connected device is a UMX-OPT-TX150R.
6.3.2. View Serial Number
Description: The extender responds its 8-digit serial number.
Format
Command {S}
Response (<SERIAL_NUMBER>)CrLf
Legend: <SERIAL_NUMBER> shows the serial number of the extender.
Explanation: The connected device's serial number is 10170321.
INFO: Only the last 4 numbers are written onto the back of the transmitter.
6.3.3. View Firmware Version of the CPU
Description: View the CPU firmware revision.
Format
Command {F}
Response (FW:<FW_VER><S>)CrLf
Legend: <FW_VER> is the firmware version. It is followed by <s> string which may indicate special versions.
<s>=r indicates standard version.
Explanation: The connected device's firmware version is 1.0.4b1.
6.3.4. View Installed Controllers' Firmware
Description: Shows the firmware revisions of the installed controllers.
Format
Command {FC}
Response (CF●END)CrLf
Explanation: There is no installed controller. This command is reserved for compatibility reasons.
Example
→ {i}
← (I:UMX-OPT-TX150R)CrLf
Example
→ {s}
← (SN:10170321)CrLf
Example
→ {f}
← (FW:1.0.4b1 r255r)CrLf
Example
→ {fc}
← (CF END)CrLf
UMX-OPT-TX150R – User's Manual
6.3.5. View Device's Temperature
Description: Queries temperature status.
Format
Command {ST}
Response (ST●CPU●<DESC>●<TEMP>)CrLf
Legend: <DESC> reserved for compatibility reasons.
<TEMP> The inner temperature.
Explanation: Internal temperature is 29.4 Celsius.
6.3.6. View CPU Firmware Compile Time
Description: Shows the CPU firmware compile time.
Format
Command {CT}
Response (Compiled:<DATE>●<TIME>●
Build:<tag>)CrLf
Legend: <DATE>
<TIME>
<tag>
Explanation: The firmware was made in 12.09.2014, 11:58:00 and the identification number of the firmware is 1.
6.3.7. View Installed I/O Boards
Description: Shows the hardware name and revision of the installed cards. The number of responses varies
regarding the frame size (number of slots).
Format
Command {IS}
Response (SL#●0●<MB_DESC>)CrLf
(SL●END)CrLf
Legend: Slot 0 represents the motherboard.
<MB_DESC> The motherboard description contains the name and the version number.
Explanation: The extender reports that it has one motherboard called UMX-OPT-TX150R and its version
number is V11.
Example
→ {st}
← (ST CPU N/A N/A N/A N/A N/A 29.4C)CrLf
Example
→ {ct}
← (Compiled: Sep 12 2014 11:58:00 Build:1)CrLf
Month, Day and Year
Hours, minutes and seconds
Identification number of the firmware
Example
→ {is}
← (SL# 0 UMX-OPT-TX150R V11) CrLf
← (SL END) CrLf
