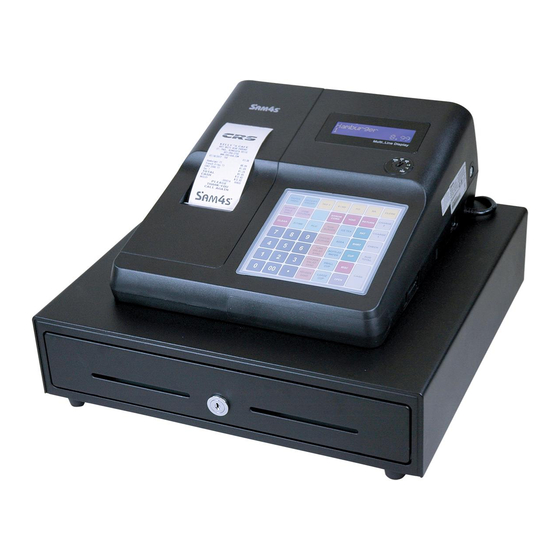

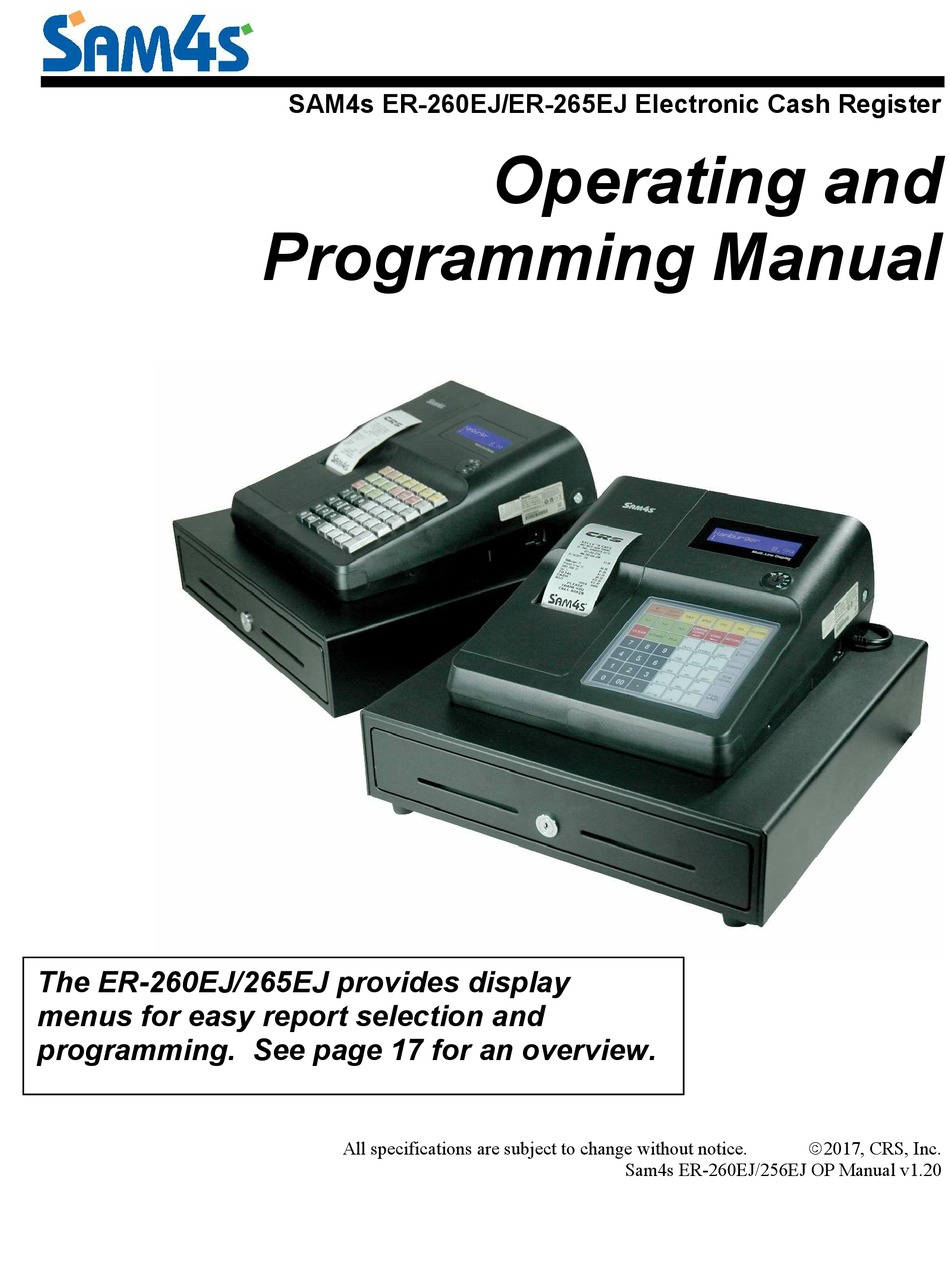

SAM4s ER-260EJ/ER-265EJ Electronic Cash Register Operating and Programming Manual The ER-260EJ/265EJ provides display menus for easy report selection and programming. See page 17 for an overview. 2017, CRS, Inc. All specifications are subject to change without notice. Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 2
CRS, Inc. Limited Warranty and Disclaimers of Warranty This manual has been developed by CRS, Inc. It is intended for the use of its customers and service personnel and should be read in its entirety before attempting to install, use or program the product(s). Nothing contained in this manual shall be deemed to be, and this manual does not constitute, a warranty of, or representation with respect to, the product or any of the products to which this manual applies.
Page 3
Precaution Statements Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. Safety Precautions Be sure that all built-in protective devices are Product Safety Notice: replaced. Restore any missing protective shields. Some electrical and mechanical parts have special When reinstalling the chassis and its assemblies, be safety-related characteristics that might not be...
Page 4
Servicing Precautions WARNING: First read the-Safety Precautions-section of this manual. If some unforeseen circumstance creates a conflict between the servicing and safety precautions, always follow the safety precautions. WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Servicing precautions are printed on the cabinet. Check the insulation between the blades of the AC Follow them.
Contents Introduction About the ER-260EJ/ER-265EJ ....................11 Using This Manual ........................12 Using Flowcharts ....................... 12 Identifying Components & Connections.................. 13 Display ............................. 16 Using Display Menus ....................17 Printer/Printers ......................... 18 Control Lock ..........................19 Keyboards ..........................20 Initial Clear ..........................24 Getting Started Quick Start Steps ........................
Page 6
X Report Table of Available Reports ................ 70 Electronic Journal Operation ....................71 Declaration ..........................72 Flash Report ..........................73 Training Mode ......................... 74 Stock Entry ..........................75 Save Report SD........................77 Receipt On / Off........................77 6 • Contents Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 7
Group Programming ......................119 Function Key Programming ....................121 Function Key Codes ....................122 #/No Sale Function Options ..................123 %1 -%5 Function Options ..................124 ADD CHECK Function Options ................125 Sam4s ER-260EJ/256EJ OP Manual v1.20 Contents • 7...
Page 8
Mix & Match Program ......................169 Program Scans ........................170 Sample Reports Financial ..........................171 Time ............................175 PLU ............................176 Clerk ............................177 Individual Clerk ........................178 Groups ........................... 178 Day ............................179 Stock ............................179 8 • Contents Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 9
Datatran Transaction ....................210 Datatran Transaction: Menu Operations ..............210 Tip (Gratuity) Entry ....................213 TIP Entry at Time of Sale ..................214 Important Notes: ........................216 Glossary Index Manual Revision Record Sam4s ER-260EJ/256EJ OP Manual v1.20 Contents • 9...
ER-260EJ/ER-265EJ will fit many shops, providing fast transaction processing, security, and detailed sales information. The ER-260EJ/ER-265EJ features a unique operator screen that allows you to view itemized transaction information, as well as providing on screen programming that is simple and easy to use.
Using This Manual This manual provides you with a means to use your SAM4s cash register to its fullest potential. It is divided into seven sections: 1. "Getting Started" on page 25 provides quick start steps to help you get up and running for basic applications.
16-character blue backlit LCD Customer Rear Display Receipt printer Connections (Serial, USB) Keyboard Available as: - Flat keyboard\ ER-265EJ - Raised keyboard\ER-260EJ Power On/Off Control Lock External SD Card (Remove screw to access) Sam4s ER-260EJ/256EJ OP Manual v1.20 Introduction • 13...
Page 14
The USB (Device and Host) port can be connected to PC, scanner or memory. For details, see “USB Setting” on page 92. The Serial 3 and Ethernet port (LAN) are options. 14 • Introduction Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 15
Management X and Z reports Electronic Journal capability 6-line programmable preamble and postamble messages Programmable descriptors for financial and clerk reports Up to 100 Mix & Match discounts Sam4s ER-260EJ/256EJ OP Manual v1.20 Introduction • 15...
Display The operator display on the ER-260EJ/ER-265EJ comes with a 192 x 64 Graphic blue backlit LCD or 2-Line 16-character blue backlit LCD. As items are registers, the item description will display on the first line; price and quantity information will display on the second line. Additional information and error messages will display as appropriate, and may be accompanied by an error tone.
Note: If you or your installer has customized the keyboard the original locations of the and keys provide the scroll down and scroll up functions, without regard to any new function assigned to those locations. Sam4s ER-260EJ/256EJ OP Manual v1.20 Introduction • 17...
To load paper into the printer, see “Installing the Paper” on page 26. Printer Specifications Paper 58mm Thermal Paper Paper Loading: Drop-in Loading 70 Ø_max (Not use spool winding) Paper Diameter: 50 Ø_max (Use spool winding) Normal 50mm/s Print Speed: 70mm/s Paper end sensor 18 • Introduction Sam4s ER-260EJ/256EJ OP Manual v1.20...
Before performing any Register Mode operations, a clerk must be signed on. See “Clerk Sign- On/Sign-Off” for a description of clerk operations. Control Keys All ER-260EJ/ER-265EJ cash registers include two sets of keys that may be used to access the following control lock positions. Positions Accessible...
Keyboards ER-260EJ Keyboard Versions The ER-260EJ (raised key) keyboard is shown below with the default legends and key assignments. This configuration has 15 keyboard NLU locations. Programmable key locations are shown with a bold border. RCPT #/NS CLERK FEED...
Page 22
Press to reverse the programmed tax status of a department key. For example, by using the TAX key prior to registering a taxable item, the item will be sold without sales tax added. 22 • Introduction Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 23
ADD CHECK example, one person may wish to pay for two guest checks at a restaurant, or one person may pay for two admissions, where separate receipts are required for each person. Sam4s ER-260EJ/256EJ OP Manual v1.20 Introduction • 23...
An initial clear may be necessary as part of servicing, or troubleshooting. Perform this procedure only as necessary. Contact your SAM4s dealer first if you have questions about operating or programming your SAM4s ER-260EJ/ER-265EJ. To Perform an Initial Clear: 1.
Getting Started Quick Start Steps SAM4s ECRs are designed to work out-of-the-box. You can sign on a clerk, enter amounts and finalize a sale. Most functions are active and ready to use. Use the Quick Start Instructions provided here to prepare your ER-260EJ/ER-265EJ ECR for entering a program.
4. Pass the leading edge of the paper through the tear-bar slot. Tear off the excess paper. ○ ○ Replace the printer cover. Figure ○ ○ 5. Replace the printer cover. Figure ○ 6. Press the feed button to ensure paper feeds out of well. Figure 26 • Getting Started Sam4s ER-260EJ/256EJ OP Manual v1.20...
CAUTION: The procedures described in this area are security sensitive. Clearing the memory on the ER-260EJ/ER-265EJ after the register is put into service will erase all programming as well as all totals and counters. Do not share this information with unauthorized users and distribute the “SERVICE MODE”...
Operations Overview ER-260EJ/ER-265EJ is designed for easy sale operation. Each model has 15 keyboard PLU’s for easy sales operation for open priced items or can be set with preset prices. The following procedures are done from the Register Mode menu: ...
Change issued will be subtracted from the cash-in-drawer total. Use to clear entries made into the 10-key numeric pad or X/TIME key before CLEAR they are printed. Clear is also used to clear error conditions. Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 29...
Page 30
Use to change the price of a PLU in register mode. PRICE CHANGE Use to display the price of a PLU without registering the price. PRICE INQUIRY 30 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 31
MANAGER MODE. The WASTE key is not allowed within a sale. Press to initiate a single line validation. VALIDATION Note: An optional printer with validation capability must be attached to the ER- 260EJ/ER-265EJ and identified. Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 31...
PLU5 is programmed with a preset price of $1.29, and is taxable by Tax 1. PLU6 is programmed with a single item of $6.00. PLU7 is programmed for gallonage calculation. Tax 1 is programmed at 6%. Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 33...
08:33 GAL CNT #5.26 GAL AMT @ 3.799 2. Press a PLU key set to gallonage function. PLU7 $20.00 For example: press PLU 7: TOTAL $20.00 CASH $20.00 CLERK 01 000013 00001 34 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
2. Enter an amount on the ten-key pad. Do TOTAL $8.44 not use the decimal key. For example: for CASH $8.44 $1.99, enter: KELLY S. 000015 00001 3. Press a PLU key. For example: press PLU Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 35...
3. Enter an amount on the ten-key pad. For CLERK 01 000017 00001 example: if the items are priced 3 for $1.00, enter: 4. Press a PLU key. For example: press PLU 36 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
Enter an amount on the ten-key pad. Do TAX1 $0.18 not use the decimal key. For example: for TOTAL $3.17 $2.99, enter: CASH $3.17 CLERK 01 000019 00001 3. Press the PLU key again. Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 37...
TOTAL $11.88 CASH $11.88 CLERK 01 000022 00001 Split Pricing Code Entry PLU When items are priced in groups, i.e. 3 for $1.00, you can enter the quantity purchased and let the 38 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
If the PLU has prices at more than one price level, all prices will be shown. 4. Press CLEAR to remove the price information from the screen, or enter the PLU again to register the item. Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 39...
1 will add the digit 1 to the CLERK 01 000024 00001 fourth PLU # position, resulting in the registration of PLU #1001. 4. Press another PLU key. In this example press PLU 2 with a price of $1.50. 40 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
$2.00 for price level 2. 4. Press another PLU key. In this example press PLU 2 programmed to register PLU #2 with price level 1. Note that the level 1 price is registered. Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 41...
2. Enter the item or items that are wasted. PLU1 T1 $1.00 3. Press the WASTE key again to total the PLU2 $1.50 wasted items: ***WASTE*** TOTAL $2.50 CLERK 01 000027 00001 WASTE 42 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
CASH $2.99 $2.99, enter: CLERK 01 000028 00001 3. Press a PLU key. For example: press PLU 1. If PLU 1 is normally taxable by tax 1, the registration will be non-taxable. Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 43...
TAX SHIFT 1, then press SUBTOTAL: TAX 1 SHIFT TOTAL 5. The display reflects the transaction without added taxes. Total the sale with CASH, CHECK, or a CHARGE function. The sale will not include tax 1. 44 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 45
TAX EXMT function from a function look up menu key): EXMT 5. The display reflects the transaction without added taxes. Total the sale with CASH, CHECK, or a CHARGE function. The sale will not include tax1. Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 45...
A total of five % functions are available. The %1~%3 keys are located on the default keyboard of the ER-260EJ/ER-265EJ. Each function is individually programmable to add or subtract, from an individual item or from a sale total, amounts (coupons) or percentages. You can also program the percentage key taxable or non-taxable, so that sales taxes are calculated on the net, or the gross amount of the item or sale.
08:33 TOTAL PLU2 $10.00 -2.00 3. Enter the amount of the coupon, press the TOTAL $8.00 appropriate % key. For example: CASH $8.00 CLERK 01 000034 00001 4. The coupon is subtracted. Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 47...
PLU key where it PLU2 T1 -2.99 was registered originally. TAX1 AMT -0.18 TOTAL -3.17 CASH -3.17 CLERK 01 000036 00001 3. Total the sale with CASH, CHECK, or a CHARGE function. 48 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
VOID - - - - - - - - - - - - - - 3. Enter the price of the first item; then press PLU2 -1.29 the PLU key where it was registered TAX1 AMT $0.18 originally. TOTAL $3.17 CASH $3.17 CLERK 01 000038 00001 Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 49...
PLU1 T1 -2.29 3. All totals and counters are corrected as if PLU2 -1.00 the original transaction did not take place. TAX1 AMT -0.18 TOTAL -4.17 CASH -4.17 CLERK 01 000040 00001 50 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
2. Enter the number you wish to record. For example, enter: 03/22/2017 TUE 08:33 PLU1 T1 $2.99 NON-ADD# 12345678 3. Press #/NS: TAX1 AMT $0.18 TOTAL $3.17 #/NS CHECK $3.17 4. Press CHECK: CLERK 01 000042 00001 CHECK Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 51...
00001 CHECK 4. Enter the charge amount received, press CHARGE. CHARGE 5. You can continue to itemize receipts, or you can finalize by pressing or selecting the same received on account key. 52 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
2. Press SUBTOTAL. The subtotal will display with the message "SUBTOTAL" indicated on the rear display. TOTAL The subtotal can be printed if the print option is set. See “PRINT Options” of "Options Programming" in the "Program Mode Programming" chapter. Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 53...
2. To total a cash sale, press CHECK: 03/22/2017 TUE 08:33 CHECK PLU2 $7.96 TOTAL 3. The display will indicate the total amount $7.96 CHECK of the cash sale. $7.96 CLERK 01 000046 00001 54 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
3. The display will indicate the total amount $1.99 of the cash tendered and the change due, if PLU2 $7.96 any. TAX1 $0.36 TOTAL $14.30 CASH $20.00 CHANGE $5.70 CLERK 01 000047 00001 Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 55...
$7.96 TAX1 $0.36 CHECK TOTAL $14.30 CHECK $20.00 4. The display will indicate the total amount CHANGE $5.70 of the check tendered and the change due, CLERK 01 000048 00001 if any. 56 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
3. Enter the amount of check tendered by the customer. For example: enter $10.00 and press CHECK: CHECK 4. When the total tendered equals or exceeds the total due, the receipt will print and the transaction is complete. 58 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
If the receipt is off, you can still issue a receipt after the sale has been completed. Printing a Receipt after the Sale After the sale, has been tendered, but before the next transaction is started, press CASH: CASH Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 59...
Currency Conversion If you normally accept currency from neighboring nations, you can program the ER-260EJ/ER-265EJ to convert the subtotal of a sale to the equivalent cost in the foreign currency. You can set up to four separate currency conversion function keys for different foreign currencies. To do this, you need to program the conversion factor.
Scale Operations The ER-260EJ/ER-265EJ can be interfaced to an optional load-cell scale. The scale interface allows direct entry of an item's weight using the SCALE function. You can also choose "manual entry" scale operation if you are working with a standalone scale that is not interfaced to the cash register.
Do not use the decimal key. 1.50 lb @3.00/lb For example: for $3.00, enter: PLU1 $4.50 TAX1 $0.27 TOTAL $4.77 CASH $4.77 3. Press a PLU key. For example: press PLU CLERK 01 000011 00001 62 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
Enter the price per pound on the ten-key pad. Do not use the decimal key. For example: for $3.00, enter: 5. Press a PLU key. For example: press PLU Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 63...
Enter the price per pound on the ten-key pad. Do not use the decimal key. For example: for $3.00, enter: 6. Press a PLU key. For example: press PLU 64 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
3. Enter the price per pound on the ten-key TAX1 $0.27 pad. Do not use the decimal key. For TOTAL $4.77 example: for $3.00, enter: CASH $4.77 CLERK 01 000011 00001 4. Press a PLU key. For example: press PLU Sam4s ER-260EJ/256EJ OP Manual v1.20 Operations • 65...
To run a NOT FOUND PLU list, choose X REPORTS → PLU → NOT FOUND PLU (selection #3) from the PLU REPORT menu To run a Reset Not Found PLU’s, choose NOT FOUND PLU (selection #3) from the Z MODE menu. 66 • Operations Sam4s ER-260EJ/256EJ OP Manual v1.20...
Manager Mode Required Operations X Reports Flash report Save Report to SD Card Declaration Set Training Mode Program Stock Entry Receipt On or Off Sam4s ER-260EJ/256EJ OP Manual v1.20 Manager Mode (X Mode) • 67...
Manager Mode menu contains the following functions: 1.X REPORTS 2.DE CLARATIO N 3.FL ASH REPO RT 4.SE T TRAIN MODE 5.ST OCK ENTR Y 6.SA VE RPT S D 7.RC PT ON/OF F 68 • Manager Mode (X Mode) Sam4s ER-260EJ/256EJ OP Manual v1.20...
CASH key is pressed. Refer to the table on the following page to view the menu selections for each report type. Sam4s ER-260EJ/256EJ OP Manual v1.20 Manager Mode (X Mode) • 69...
Electronic Journal Operation An electronic journal feature is available on the ER-260EJ/ER-265EJ. The electronic journal captures the sales journal in the register memory. If you intend to use the electronic journal, you must allocate sufficient memory (see “ALLOCATION” in the "Service Mode Programming" chapter) and activate the journal and set related journal capture options (see “EJ”...
37, press X/TIME, enter 25, and then press CASH. The result is added to the cash declared running total on the screen. 6. When you have completed declaration entries, press the CASH key again to finalize and total your declaration. 72 • Manager Mode (X Mode) Sam4s ER-260EJ/256EJ OP Manual v1.20...
The following totals are reported: GROSS SALES NET SALE CASH-IN-D CHECK-IN- FD/S-IN-D CHG1-IN-D CHG2-IN-D CHG3-IN-D CHG4-IN-D CHG5-IN-D CHG6-IN-D CHG7-IN-D CHG8-IN-D 6. Press the CLEAR key to exit the report. Sam4s ER-260EJ/256EJ OP Manual v1.20 Manager Mode (X Mode) • 73...
5. Enter 1 to start training mode (if you have selected a training mode password, you will be prompted to enter to programmed password.) or enter 0 to end training mode. A chit will print indicate you are starting or ending training mode. 74 • Manager Mode (X Mode) Sam4s ER-260EJ/256EJ OP Manual v1.20...
ENTER PLU # Range of PLU’s 8. With “PROGRAM” displayed on the menu, press CHARGE1 and then CASH to begin (or press 2 and then CASH). ENTER FROM P LU # Sam4s ER-260EJ/256EJ OP Manual v1.20 Manager Mode (X Mode) • 75...
Page 76
15. After entering the ADD, SUBTRACT or REPLACE value, press CASH. 16. To program additional PLU’s repeat from step 4, or press CLEAR key to exit the program. 76 • Manager Mode (X Mode) Sam4s ER-260EJ/256EJ OP Manual v1.20...
5. Press 0 to print or 1 to not print. Note: When the receipt is off, a receipt may be printed after the sale by pressing CASH after the transaction is complete. Sam4s ER-260EJ/256EJ OP Manual v1.20 Manager Mode (X Mode) • 77...
Mode function you with to perform, you can enter the digit (1-6) directly. The following Z Mode functions are available: 1.Z REPORTS 2.RESET E.J 3.RESET NOT FOU ND PL U 4.CONNECT SE RVE R 5.DATATRAN F UNC TION 6.DATATRAN T RAN SACTI ON Sam4s ER-260EJ/256EJ OP Manual v1.20 Z Mode • 79...
Press the CASH key to select the displayed option. With a specific report selected, the reports will start when the CASH key is pressed. Refer to the table on the following page to view the menu selections for each report type. 80 • Z Mode Sam4s ER-260EJ/256EJ OP Manual v1.20...
Reset Electronic Journal An electronic journal feature is available on the ER-260EJ/ER-265EJ. The electronic journal captures the sales journal in the register memory. If you intend to use the electronic journal, you must allocate sufficient memory (see "ALLOCATION" in the "Service Mode Programming” chapter) and activate the journal and set related journal capture options (see "EJ"...
CAUTION: The procedures described in this area are security sensitive. Do not share this information with unauthorized users and distribute the SERVICE-Mode key only to those you may want to perform these functions. Sam4s ER-260EJ/256EJ OP Manual v1.20 Service Mode Programming • 83...
Service Mode function you with to perform, you can enter the digit (1-8) directly. The following S Mode functions are available: 1.SELF TEST 2.MEMORY CLE AR 3.ALLOCATION 4.KEY ASSIGN 5.DEFINE POR T 6.ECR SETUP 7.PROGRAM BA CKUP 8.HELP MENU 84 • Service Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Self-Test Various components of the ER-260EJ/ER-265EJ are tested by using this program. 1. Move the key to the S lock position to display the Service Mode menu. 2. With “SELF TEST” displayed, Press CASH. SELF TEST 1.BATCH TEST 3. You can now use the CHARGE1 and the CHARGE2 keys to scroll up and down through the Self Test menu.
Page 86
Insert Micro SD to run test. 8. Ethernet Requires Ethernet connection to run test. 1. RTC Set Set Date & Time 6. RTC 2. RTC View View the Date & Time 86 • Service Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Memory Clear Before you use your ER-260EJ/ER-265EJ for the first time, you must perform a memory all clear to ensure that all totals and counters are cleared and that the default program is installed. Go to “Clearing Memory” on page 27 to complete this procedure.
ALLOCATION SIZE OVER" if you attempt to allocate features requiring more memory than is available. DEFAULT Memory Allocation Specifications ALLOCATION ITEM DEFAULT MAXIMUM 3200 1000 CLERK GROUP PRICE LEVEL MIX AND MATCH 15000 EJ LINE 1000 88 • Service Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
► If you wish to program the CASH key, select it immediately after selecting KEY ASSIGNMENT from the SERVICE MODE menu. After the initial key is programmed, the CASH key is used to finalize the program. Sam4s ER-260EJ/256EJ OP Manual v1.20 Service Mode Programming • 89...
*The register will work with lower power USB scanners but not the Metrologic/Honeywell. The Metrologic/Honeywell scanners can be used with the serial connection, they will require the DB9 to RJ45 adaptor and the power supply. Sam4s ER-260EJ/256EJ OP Manual v1.20 Service Mode Programming • 91...
5. Use CHARGE1and the CHARGE2 keys to select a USB type (PC COM, SCANNER, or MEMORY) and press the CASH key to confirm. Note: If you select a new type, your ER-260EJ/ER-265EJ will be automatically reboot. USB Specifications USB TYPE...
Press the CHARGE1and the CHARGE2 keys to select a contrast value from 0 (dim) to 15 (brightest). The front and rear displays will adjust simultaneously. Set Network Use DHCP, ECR IP, ECR SUBNET, ECR GATEWAY, Server IP, Server PORT, ETHERNET USE. Sam4s ER-260EJ/256EJ OP Manual v1.20 Service Mode Programming • 93...
Or, if you already know the menu number of the Program Backup function you with to perform, you can enter the digit (1-7) directly. 8. Press CASH. Read the specific notes for each function that follow. 94 • Service Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
The ER-260EJ/ER-265EJ will write the backed-up program files to the folder: ER-260EJ/ER-265EJ\STORENAME\PGMBACK Below is an Explorer view of the backed-up files. In the example below, the store name is “SAM4S”. Sam4s ER-260EJ/256EJ OP Manual v1.20 Service Mode Programming • 95...
Program Restore Set the store name on the ER-260EJ/ER-265EJ to match the name of the store folder you wish to restore. CAUTION: Memory allocation must be set the same as the saved program. Be sure to print out the memory allocation so that it can be re-entered before restoring the program.
Clerk report taken at 23:32 (in a 24-hour time format.) In this manner, multiple reports backed up at different times in the same day will collect in the same “date” folder. Below is an Explorer view of the backed-up files. In the example below, the store name is “SAM4S” and the format is CSV.
PC Utility to “.img” format. After conversion, they can be loaded directly by connecting a PC to the ER-260EJ/ER-265EJ or by copying the images to a SD card and loading (or saving the image) using the SD utility program described here.
Page 99
PC Utility. Note: You must use the same store name in the ER-260EJ/ER-265EJ ECR at “Store name” of “SYSTEM” of the “Options Programming” in the “Program Mode Programming”. Note that the default store name is “STORE001”.
The ER-260EJ/ER-265EJ register software is loaded in flash ROM. This program may occasionally be updated by the manufacturer. Your SAM4s dealer can update the software if necessary. The Flash ROM can be loaded through a PC or by SD card.
Page 101
8. Select Boot Area Only in the Select One option buttons. 9. Press OK Button. The download takes about 30 seconds; the scroll bar will track the Sam4s ER-260EJ/256EJ OP Manual v1.20 Service Mode Programming • 101...
Page 102
OFF, the program update is complete. 12. Disconnect the PC cable. 13. Perform a memory all clear on the ECR. The ECR is now ready to program or to load a previously saved end-user program. 102 • Service Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
2. Select the SD/USB card drive, right click and select Format. (Win XP screen shown; slightly different procedures are used with different operating systems.) Select “Format…” 3. From the Format dialog, you must select the File System: FAT32. Sam4s ER-260EJ/256EJ OP Manual v1.20 Service Mode Programming • 103...
Program Scans – Print a record of you register program. Default Programming Each SAM4s ECR is ready to use after un-boxing, loading the paper and completing the memory all clear procedure (see “Clearing Memory” on page 27.) All keyboard PLU’s are nontaxable and preset, with a “0” price.
To program the descriptor "20%", press: % - " ? ! To program the descriptor "APPLE", type: ERROR CORR SKIP ERROR CORR SKIP ERROR CORR SKIP ERROR CORR SKIP ERROR CORR SKIP Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 105...
Page 106
NOTE: Use the CAPS key to toggle between upper and lower case descriptor options. To program the descriptor “APPLE” with DOUBLE (wide) characters type: DOUBLE ERROR CORR SKIP NOTE: Use the DOUBLE key to toggle to between double and normal size descriptor options. 106 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 107
: , & . (-) Use keyboard PLU Use the keypad to keys to enter enter numeric characters shown in characters, including subscript on the key the decimal as label descriptors Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 107...
Program Example To program the descriptor "APPLE", type: [065] [080] [080] [076] [069] [CASH] For DOUBLE (wide) characters enter 999 before each descriptor code. For example: A = [999] [065] [CASH] 108 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 109
Code < Char. Code > Char. Code Char. Code Char. Code Char. Code Char. Code Char. Code BACK SPACE DOUBLE Char. Code Á á Ñ ñ Ã ã Char. Code Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 109...
3. Use the CHARGE1 and the CHARGE2 keys to scroll up and down through the Program Mode menu. Or, if you already know the menu number of the Program Mode function you with to perform, you can enter the digit (1-10) directly. 110 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
4. Use the CHARGE1 and the CHARGE2 keys to scroll up and down through the PLU menu. Or, if you already know the menu number of the PLU function you with to perform, you can enter the digit (1-4) directly. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 111...
4. Enter the TO PLU number and CASH to display PLU OPTIONS. 5. Refer to "PLU Options - Reference Information" on page 113" to make program entries or changes, press the CLEAR key to finalize and return to the previous screen. 112 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Single item PLU’s are used to speed up one item sales. 17 NON-ADD # COMP Y or N Select Y to enforce the entry of a non-add number before a registration can be made. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 113...
Page 114
Select Y if you wish entries into this PLU to be automatically multiplied by the weight on the optional scale. 35 MIX&MATCH# 0-99 Enter a value (1-99) to indicate the number of the preprogrammed MIX&MATCH TABLE. Enter 0 to disable 114 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 115
PLU, enter the PLU # you wish to link with the 10-key pad. Enter 0 for no link. QTY/MODIFIER1 0-99.99 Enter quantity modifier count. QTY/MODIFIER2 39 MINIMUM STOCK 0-9999.99 Enter Minimum Stock amount. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 115...
ENTER TO PLU # 4. Press CASH to delete the PLU. The DELETE message will print. 5. Continue to delete another PLU’s or press CLEAR key until return to PROGRAM MODE menu. 116 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
For example: type 1 0 0 0 to enter ten units of inventory. 9. To program additional PLU’s repeat from step 3, or press CLEAR key to finalize. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 117...
3. The current PLU code number displays. Type the new PLU code number you wish to use for this NLU key, press CASH. 4. The NLU CODE PROGRAM screen returns. Continue from step 1 to program additional NLU keys, or press CLEAR to exit. 118 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
(1-9) directly. Press the CASH key. 7. Use the “Group Programming - Reference Information” on the following page and make changes as necessary. Press CLEAR to return to the PROGRAM MODE screen. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 119...
Page 120
(Note, the kitchen printer must have red/black printing capability, and this option does not apply to the register receipt printer.) GIFT CARD Y or N 120 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
7. From the YES/No type option screen, Press the CHARGE2 key for YES and the CHARGE1 key for NO. Press the CASH to confirm the option selection. 8. Press CLEAR at any time to return to the FUNCTION KEY menu without saving changes. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 121...
MAX DIGIT flag below. DIGIT Enter the maximum number of digits for non-add number 10 MAX DIGIT (0-8) entry. Zero (0) means no limit. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 123...
Y or N MGR ONLY mode. 14 COMPULSORY Y or N Choose Y to enforce validation if an optional printer with VALIDATION validation capability is connected to a Serial port. 124 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
MANAGER MODE. COMPULSORY Y or N Choose Y to enforce validation if an optional printer with VALIDATION validation capability is connected to a Serial port. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 125...
Select Y to exempt the appropriate tax automatically when finalized with this key. COMPULSORY Choose Y to enforce validation if an optional printer with Y or N VALIDATION validation capability is connected to a Serial port. 126 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
CHARGE1~CHARGE8 key. Y or N 17 SELECT CARD None, Credit, Debit, Gift, Gift No NSF, Cash Benefit TYPE Y or N 18 SHOW TIP ON PINPAD PRINT TIP LINE ONLY Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 127...
Serial ENDORSEMENT port. COMPULSORY Y or N Choose Y to enforce validation if an optional printer with VALIDATION validation capability is connected to a Serial port. 128 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Serial port. COMPULSORY Choose Y to enforce check endorsement if an Y or N CHECK optional printer with validation capability is ENDORSEMENT connected to a Serial port. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 129...
CONSECUTIVE check endorsement. SLIP OUTPUT If validation is used, identify the communications port (1 or PORT#(0-2) 3) where the validating printer is attached. Enter 0 if validation is not used. 130 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
CONTROL allowed only in the MANAGER MODE. COMPULSORY Y or N Choose Y to enforce validation if an optional printer with VALIDATION validation capability is connected to a Serial port. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 131...
CONTROL allowed only in the MANAGER MODE. COMPULSORY Y or N Choose Y to enforce validation if an optional printer with VALIDATION validation capability is connected to a Serial port. 132 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
REGISTER MODE. When selected, the function is allowed CONTROL only in the MANAGER MODE. COMPULSORY Y or N Choose Y to enforce validation if an optional printer with VALIDATION validation capability is connected to a Serial port. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 133...
MANAGER MODE. COMPULSORY Y or N Choose Y to enforce validation if an optional printer with VALIDATION validation capability is connected to a Serial port. 134 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Option Entry Description DESC Alpha You can program a unique descriptor. The default descriptor numeric is SUBTOTAL. 24 character KEY DISABLE Y or N Select Y to disable this function. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 135...
(i.e. a tax exempt #) before the key is used. COMPULSORY Choose Y to enforce validation if an optional printer with Y or N VALIDATION validation capability is connected to a Serial port. 136 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
MANAGER MODE. COMPULSORY Y or N Choose Y to enforce validation if an optional printer with VALIDATION validation capability is connected to a Serial port. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 137...
Select Y if you do not want to allow the operator use of this Y or N MANAGER function in REGISTER MODE. When selected, the CONTROL function is allowed only in the MANAGER MODE. 138 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
PORT not used. KEY DISABLE Y or N Select Y to disable this function. ALLOW Y or N Select Y to allow multiple validations of the same transaction. MULTIPLE RECEIPT Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 139...
7. Continue to program additional MACRO key sequence or press CLEAR key to return to PROGRAM MODE screen. To Remove a Macro If you wish to remove a key stroke from a macro, replace the current function with the INACTIVE function. 140 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
If a YES or NO decision is required, Press the ↑ key for YES and the ↓ key for NO. 6. Press the CASH to confirm the option value and return option screen. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 141...
Y or N If N, both multiplication and split pricing calculations can PRICING be done with the X/TIME key. If Y, only multiplication can be done with the X/TIME key. 142 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 143
POP-UP the same transaction (1), or having the same level key SALE, apply to any subsequent item on any subsequent STAY DOWN transaction (2). Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 143...
Page 144
PAID OUT function to remove cash from the drawer. Set the drawer limit to 0 to disable the drawer limit warning. 144 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 145
Set desired number of EFT receipts to print (0-99) RECEIPT (default = 1) MARK CARD No ON ALL Y or N Set to N to NOT print card number on EFT receipts. EFT DRAFTS Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 145...
Page 146
If you hand-write receipts for charge transactions, you WITHOUT TAX may find it useful to print the merchandise subtotal. Select Y if you wish to print the subtotal without tax on the receipt. 146 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 147
Select N to stop the drawer from opening when reports REPORTS RUN are run. SURPRESS PRT OF LAST Y or N Select Y if you do not want to print last issued date on REPT DATE report. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 147...
Page 148
AFTER FINANCIAL information at the end of the financial report. REPORT PRINT DOUBLE Y or N Select Y if you wish to print two copies of the financial FINANCIAL REPORT reports. 148 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 149
PRINT GROUP ON Y or N Select Y if you wish to print the group report on financial FINANCIAL REPORT report. If Y, the group report will not be issued alone. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 149...
Page 150
Select Y if you wish to allow rounding when you press Y or N ON SUBT the SUBTOTAL key. ALLOW ROUND Y or N Select Y if you wish to allow rounding when you press ON CASH the CASH key. 150 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 151
Y or N Choose Y to print orders on the KP when the SUBTOTAL SUBTOTAL key is pressed. Choose N to print orders on the KP when the order is finalized. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 151...
Page 152
The four options that follow control the electronic journal feature. The electronic journal can be printed in the REPORT MODE reset in the Z MODE. 152 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 153
6 digits. PRT TRAIN CLERK Y or N Select N if you do not wish to print a message of train START/END MESSAGE clerk start or end. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 153...
Page 154
DETAIL PRINT Options Use these options if System Option #43, “Use receipt as detail” is set. The ER-260EJ/ER-265EJ does not provide a dedicated detail (journal) printer. Option Entry Description CONDENSE JOURNAL Y or N Select Y to print small font on detail print.
If Y, if clerk can use P mode. ALLOW S MODE Y or N If Y, if clerk can use S mode. ALLOW VOID Y or N If Y, if clerk can use VOID mode. MODE Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 155...
Time Time & Date Use this program to set the clock and calendar on your ER-260EJ/ER-265EJ. The date changes automatically. After initial setting, time changing will probably be required only for beginning and ending daylight savings time. 1. Move the key to the P lock position to display the Program Mode menu.
At YES/No options screen, press the CHARGE2 key for YES and the CHARGE1 key for NO. Press the CASH to confirm the option value. 7. To exit the program, press CLEAR key. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 157...
Taxes Programming The ER-260EJ/ER-265EJ allows three calculation options for each of the four possible taxes. Add-On - most sales taxes can be programmed by entering an add-on tax percentage rate. VAT - if tax is included in the cost of the item, you can use value added tax (VAT) to calculate the tax share of each sale.
7. Input the tax rate, for example: if the VAT tax is 6 percent, enter 6000. Press the CASH key. 8. Continue to program additional taxes or press CLEAR to return to the PROGRAM MODE screen. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 159...
$0.10 $1.59 - $1.74 $0.11 $1.75 - $1.91 $0.12 $1.92 - $2.08 $0.13 $2.09 - $2.24 $0.14 $2.25 - $2.41 To enter the example 6% tax table in tax 1: 160 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 161
12. Continue entering all the Repeat Breaks, when you have entered the last Repeat Break press CASH; at the next field don’t enter a value, just press CASH. 13. Continue to program additional taxes or press CLEAR to return to the PROGRAM MODE screen. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 161...
6. At the GST IS BY TAX1 field, if the GST is taxable by rate1 (tax on tax) by pressing the ↑ key and the ↓ key, the pressing the CASH key 7. Continue to program additional taxes or press CLEAR to return to the PROGRAM MODE screen. 162 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
3. Type the new message (up to 32 characters) using the overlay (or enter codes if code method selected in system options). Press CASH to confirm the new line. 4. Continue to program additional Preamble lines or press CLEAR to return to the PROGRAM MODE screen. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 163...
3. Type the new message (up to 32 characters) using the overlay (or enter codes if code method selected in system options). Press CASH to confirm the new line. 4. Continue to program additional Postamble lines or press CLEAR to return to the PROGRAM MODE screen. 164 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
4. Type the new descriptor (up to 24 characters) using the overlay (or enter codes if code method selected in system options). Press CASH to confirm the new line. 5. Continue to program additional lines or press CLEAR to return to the PROGRAM MODE screen. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 165...
Page 166
PLU LEVEL1 TTL FD/S-IN-D PLU LEVEL2 TTL CHG1-IN-D MOD1 NET SALE CHG2-IN-D MOD2 CREDIT TAX1 CHG3-IN-D MOD3 CREDIT TAX2 CHG4-IN-D MOD4 CREDIT TAX3 CHG5-IN-D MOD5 CREDIT TAX4 CHG6-IN-D ROUND FD/S CREDIT CHG7-IN-D 166 • Program Mode Programming Sam4s ER-260EJ/256EJ OP Manual v1.20...
4. Type the new descriptor (up to 24 characters) using the overlay (or enter codes if code method selected in system options). Press CASH to confirm the new line. 5. Continue to program additional lines or press CLEAR to return to the PROGRAM MODE screen. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 167...
[0 .00] 8. Enter the amount of the discount. Press CASH. 9. Press the CASH key to return to the MIX & MATCH PGM screen or press the CLEAR to exit. Sam4s ER-260EJ/256EJ OP Manual v1.20 Program Mode Programming • 169...
Program Scans You can make a printed record of your ER-260EJ/ER-265EJ program. 1. Move the key to the P lock position to display the Program Mode menu. 2. With the first option, “PLU” displayed, use the CHARGE1 and the CHARGE2 keys to select “10.PGM SCAN”...
XMPT4 SALES $7.50 sales for each tax ITEM DISC. -0.48 SALE DISC. Total and count for -5.22 each % function key SALE SURCH. (i.e. discounts & $3.23 coupons) continued . . . Sam4s ER-260EJ/256EJ OP Manual v1.20 Sample Reports • 171...
Page 172
R/A 3 $0.00 Total and count for P/O 1 each type R/A -140.00 (received on P/O 2 account) and P/O $0.00 (paid out) key. P/O 3 $0.00 continued . . . 172 • Sample Reports Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 173
$0.00 OVER/SHORT $0.00 CHG6-IN-D $13.09 CHG6 DEC AMT $0.00 OVER/SHORT $0.00 CHG7-IN-D $0.00 CHG7 DEC AMT $0.00 OVER/SHORT $0.00 CHG8-IN-D $3.04 CHG8 DEC AMT $0.00 OVER/SHORT $0.00 continued . . . Sam4s ER-260EJ/256EJ OP Manual v1.20 Sample Reports • 173...
Page 174
$62.59 total activity in Mix & Match MIX & MATCH Training Mode Discounts applied $0.00 AVG ITEM/CUST 7.29 AVG $/CUST $10.81 ******************************** GRAND $375.63 CLERK 01 000209 00000 Grand total 174 • Sample Reports Sam4s ER-260EJ/256EJ OP Manual v1.20...
14:00-15:00 Percentage of total SALES AMT $97.33 sales SALES RATE 34.61% ******************************* Number of TOTAL CNT Transactions all TOTAL AMT $281.18 periods Net sales in all CLERK 01 000209 00000 periods. Sam4s ER-260EJ/256EJ OP Manual v1.20 Sample Reports • 175...
SALES RATE -7.44% PLU#33 NAILS CNT 15.55 $24.72 SALES RATE 9.20% Total activity for all ******************************* PLUs TOTAL CNT 189.56 TOTAL AMT $268.60 Total sales for all CLERK 01 000209 00000 PLUs. 176 • Sample Reports Sam4s ER-260EJ/256EJ OP Manual v1.20...
------------------------------- ANNA NET SALE $78.75 DRWR TTL $67.03 ------------------------------- LAURA NET SALE $0.00 DRWR TTL $18.64 ------------------------------- PEGGY ------------------------------- MOLLY NET SALE $2.06 DRWR TTL -22.01 ------------------------------- CLERK 01 000209 00000 Sam4s ER-260EJ/256EJ OP Manual v1.20 Sample Reports • 177...
$44.11 #9: STORE MDSE 77.56 SALES AMT $74.58 Number of items ******************************** sold in all groups. TOTAL CNT 189.56 TOTAL AMT $268.60 Net sales for all CLERK 01 000209 00000 groups. 178 • Sample Reports Sam4s ER-260EJ/256EJ OP Manual v1.20...
REPORT 00001 ------------------------------- ALL PLU STOCK PLU number PLU Descriptor PLU#1 HAMBURGER Current inventory count PLU#2 DBL BURGER PLU#7 ROAST 25.96 PLU#28 UNLEADED 1488.47 PLU#33 NAILS 161.25 CLERK 01 000209 00000 Sam4s ER-260EJ/256EJ OP Manual v1.20 Sample Reports • 179...
Introduction This guide supports integrated payment applications utilizing EMV enabled Datacap equipment for the SAM4s ER-260EJ/ER-265EJ ECRs. To implement the EMV application, the following is required: 1. For installation that will be using integrated payment, an SD card must be placed in the SD card slot on the right side of the ECR.
Page 185
Note: If you have an installation using 3 IPTran LT units as shown above, all three devices will have a separate batch and work independent of each other (separate batching, separate reporting). Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 185...
Page 186
PDC’s must have a connection to the internet. Note: PDC’s are paired to a specific Tran Server. A PDC from one site will not work with the Tran Server from a different site. 186 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
52 “test” CLERK ID? Y or N Always set to N 53 CARDHOLDER Y or N Set to Y if you want the cardholder’s name printed on NAME? EFT receipts. 188 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
Press the CASH to save the setting 10. Press CLEAR to return to the FUNCTION KEY menu. 11. Press CLEAR again to return to the PROGRAM MODE menu Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 189...
Page 190
If the card is a CREDIT card, and all payments are made at a cashier station, choose (REG) to prompt for tip entry on the ECR display; choose (PINPAD) to prompt for tip at the PIN-Pad. 190 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 191
Y or N Select Y to allow TIP operations only in X position manager control mode. SEND TO EFT Y or N Set to Y for integrated payment EFT/EMV operations. Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 191...
8. Press CASH. The receipt and card draft are printed. 9. If multiple documents are to be printed, the message “PRESS CASH TO CONTINUE” displays. Tear off the printer paper, and press CASH to resume printing. 192 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
11. When verification is complete, the PIN-Pad displays “APPROVED” and the draft is printed at the ECR. 12. If multiple documents are to be printed, the message “PRESS CASH TO CONTINUE” displays. Tear off the printer paper, and press CASH to resume printing. 196 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
8. Press CASH. The receipt and card draft are printed. 9. If multiple documents are to be printed, the message “PRESS CASH TO CONTINUE” displays. Tear off the printer paper, and press CASH to resume printing. Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 197...
Page 198
AMOUNT ACCORDING TO CARD ISSUER MERCHANT COPY AGREEMENT (MERCHANT AGREEMENT IF CREDIT VOUCHER) X_______________________________ Merchant Signature APPPLICATION LABEL: Visa Credit AID: A0000000031010 TVR: 0000008000 IAD: 06010A03602000 TSI: A800 CVM; SIGN CUSTOMER COPY 198 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
11. Press CASH. The receipt and card draft are printed. 12. If multiple documents are to be printed, the message “PRESS CASH TO CONTINUE” displays. Tear off the printer paper, and press CASH to resume printing. Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 199...
Page 200
AMOUNT ACCORDING TO CARD ISSUER AGREEMENT (MERCHANT AGREEMENT IF CREDIT VOUCHER) X_______________________________ Merchant Signature APPPLICATION LABEL: Visa Credit AID: A0000000031010 TVR: 0000008000 IAD: 06010A03602000 TSI: F800 CVM; SIGN CUSTOMER COPY 200 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 201
AMOUNT ACCORDING TO CARD ISSUER AGREEMENT (MERCHANT AGREEMENT IF CREDIT VOUCHER) X_______________________________ Merchant Signature APPPLICATION LABEL: Visa Credit AID: A0000000031010 TVR: 0000008000 IAD: 06010A03602000 TSI: F800 CVM; SIGN MERCHANT COPY Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 201...
ECR. The “Delete SD EMV File” operation should be performed daily. On the ER-260EJ/ER-265EJ we are storing some information on the approvals at the register (EMVBACK.txt file). This is required to be able to perform “By Record” transactions. No credit card or customer information is stored at the ECR.
Dial In Load This procedure must be done at each new installation to load the Datatran device parameters. Use to perform various diagnostics. Use only as Diagnostic requested by Datacap support. Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 203...
Page 204
Select Initialize EFT to verify communications and software version. DATE 11/20/2017 THU TIME 16:15 List of Installed Networks ** LIST INSTALLED NETWORKS ** Software Version EMC --- --- --- Ver: 3.95 sl CLERK1 000066 00000 204 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 205
CLERK 1 000065 00000 DATE 5/05/2017 THU TIME 10:34 *** CLOSE CURRENT BATCH *** BATCH NUMBER 0080 NET AMNT SETTLED: 16.00 ITEM COUNT BATCH WAS CLOSED SUCCESSFULLY CLERK 1 000097 00000 Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 205...
Page 206
8. At the prompt: Tap or swipe the Card, insert the chip card into the vx805. Note: When entering the Auth. Code, you must use the three-digit alpha character code entry method. 206 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 208
6. When complete the message: “LOAD SUCCESS” will display and print. The Datacap device load is complete. After the Datacap device is loaded, you must load the PIN-Pad parameters; From the Z-Mode. See the “Parameter Download” on page 206 for details. 208 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 209
5. Reselect the Diagnostic option. The message “DIAG NUMBER” will again display. 6. Enter the number of the diagnostic test you wish to perform and press CASH. The report will print. Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 209...
Use this operation to verify a card is valid, activated, not reported as lost/stolen. Delete SD EMV This Operation will clear the EMVBACK.txt file File stored on the SD Card. 210 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 211
4. Enter the sale amount and then press CASH. 5. Enter the approval code and then press CASH. 6. The draft prints and the sale is added to the batch. Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 211...
Page 212
IAD: 06010A03602000 TSI: F800 ARC: 00 CVM: SIGN Delete SD EMV File Use this operation to clear the EMVBACK.txt file stored on the SD Card. This is the internally stored 212 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
5. The message displays: “WAITING FOR EFT”. If the record number and transaction number are valid, the tip amount is entered in the batch and a tip entry chit prints as shown below. Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 213...
6. After pressing F3 the message “ENTER TIP + OK $ 0.00” appears. ENTER TIP + OK 0.00 7. Enter the TIP amount and press the GREEN button on the PIN-Pad. ENTER TIP + OK 1.00 214 • Integrated Payment Appendix Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 215
12. Press CASH; the merchant copy of the EFT draft will print and the and the PIN-Pad will prompt “REMOVE CARD” REMOVE CARD 13. If multiple documents are to be printed, the message “PRESS CASH TO CONTINUE” displays. Tear off the printer paper Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 215...
Close Batch or Delete SD EMV File needs to be performed every day at the register even when the site is set for auto batch with their processor. This is how Sam4s clears the EMV token file. The token file is used to allow for “By Record” transactions (such as Void and Gratuity entry).
Page 217
Code < Char. Code > Char. Code Char. Code Char. Code Char. Code Char. Code Char. Code BACK SPACE DOUBLE Char. Code Á á Ñ ñ Ã ã Char. Code Sam4s ER-260EJ/256EJ OP Manual v1.20 Integrated Payment Appendix • 217...
When a kitchen printer, or requisition system is used, the merchant may wish to force the entry of a condiment or instruction for specific items. If compulsory condiment status is set for a specific PLU, then a condiment PLU must follow the entry of the item. 218 • Glossary Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 219
PLU key. Default Program The default program is the original program installed in the ER-260EJ/ER-265EJ. The register has a default program which makes it operational after a memory clear. Nearly all options, rates and status programs are set to zero as the default condition.
Page 220
For example: a macro key could be set to tender (preset tender) a common currency, such as $5 into the cash key. Memory Allocation Memory allocation is a program that determines how the system memory is divided to provide the 220 • Glossary Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 221
Not Found PLU For small merchants, the ER-260EJ/ER-265EJ can build a PLU file “on the fly”. Each time an item is scanned (or entered by PLU number) that is not in the PLU file, the operator is prompted to enter the price and other options for the item.
Page 222
The SAM4s ER-260EJ/ER-265EJ allows a preamble message of up to six lines, each with up to 32- characters, to be printed at the top of each receipt. A postamble of up to 6-lines of 32-characters can also be printed at the bottom of the receipt.
Page 223
You must clear (Z) the register before the training clerk can be used. When that clerk is signed on, the register is in “training mode”. Transaction Number See consecutive number. Sam4s ER-260EJ/256EJ OP Manual v1.20 Glossary • 223...
Page 224
A void operation will erase a previous item entry. It must be used inside of a sale only. X & Z Reports X (examine) reads reports without resetting and Z (Zero) reads and resets your sales totals. 224 • Glossary Sam4s ER-260EJ/256EJ OP Manual v1.20...
CHARGE 1-8 key Decimal Place, 142 programming, 127 Declaration, 71, 72 Charge Sale Delete PLU, 116 Tendering, 57 Delete PLU Range, 112, 116 Check Cashing, 58 Direct Multiplication CHECK CASHING key Allow?, 143 Sam4s ER-260EJ/256EJ OP Manual v1.20 Index • 225...
Page 226
152 PLU Multiplication With Decimal Point, 38 print in VOID?, 151 PLU Options - Reference Information, 113 priority printing?, 152 PLU Price Inquiry, 39 PLU Repeat Entry Operation, 35 PLU Report, 176 226 • Index Sam4s ER-260EJ/256EJ OP Manual v1.20...
Page 227
All Clerk Report, 177 Individual Clerk, 178 PLU Report, 176 Stock Report, 179 UPC number, 33 Time Report, 175 Reset Electronic Journal, 82 RESET Z COUNTER, 148 Return Merchandise VAT printing options, 150 Sam4s ER-260EJ/256EJ OP Manual v1.20 Index • 227...
Page 228
Void Last Item, 49 Previous Item, 49 WASTE key VOID ITEM key operation, 42 programming, 137 Void Position operations, 50 Zero Skip on reports, 148 228 • Index Sam4s ER-260EJ/256EJ OP Manual v1.20...
Need help?
Do you have a question about the ER-260EJ and is the answer not in the manual?
Questions and answers
how do I print a receipt and a total day sale
To print a receipt on the Sam4s ER-260EJ, press the "CASH" button to get a printout of the last transaction. This only works for the most recent sale. To enable or disable automatic receipt printing, use the "receipt on/off" button in REG mode.
To print total day sales:
1. Choose the NET option to accumulate daily net sales totals.
2. Use the appropriate report function (e.g., clerk or PLU report) to print totals.
3. Set "SKIP ZERO TOTALS" to N if you want all totals printed, including zeros.
4. Select Y for "PRINT MEDIA TOTALS" to include payment types in the report.
These settings allow the register to generate detailed reports of total sales for the day.
This answer is automatically generated
can someone please call me
@Teresia Williams Cherry
hi could you please send me easy instruction if you can for adding prices and adding text to buttons. we just bought a bunch and i am having trouble with the manual we currently have the older version but we are switching over to this model. Thanks if you can help that would be great
