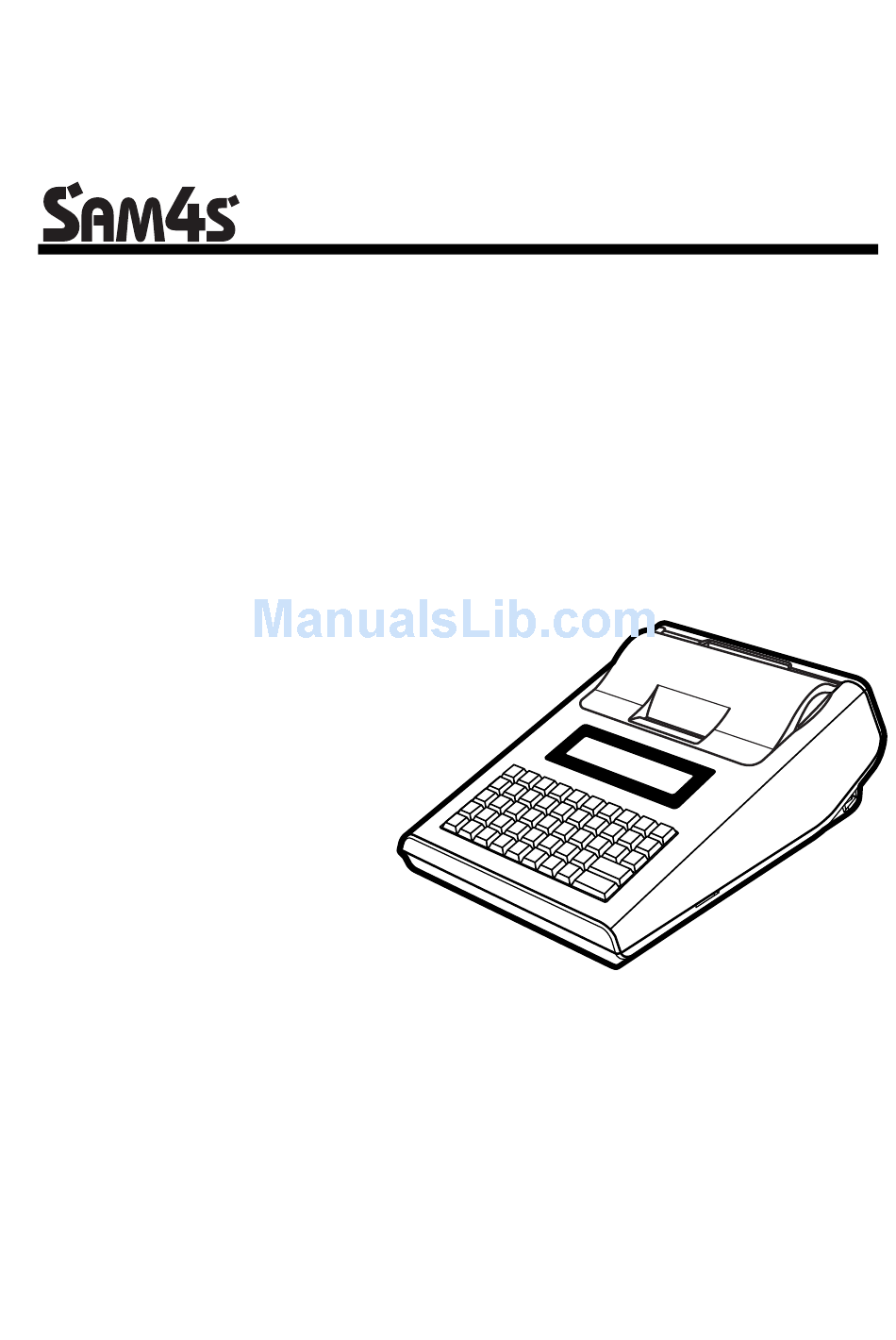

ER-230 Series Electronic Cash Register AU Operation and Programming Manual All specificaitons are subject to change without notice JK68-60969M(Rev.02) From ER230 v1.000 to v1.008...
Page 2
ATTENTION The product that you have purchased contains a rechargeable MS Lithium battery. This battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of the battery into the municipal waste system. Check with your local solid waste officials for details concerning recycling options or proper disposal WARNING This is a Class A product.
Precaution Statements Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. Safety Precautions 1. Be sure that all built-in protective devices are 6. Observe the original lead dress, especially near the replaced.
Page 4
Servicing Precautions WARNING: First read the-Safety Precautions-section of this manual. If some unforeseen circumstance creates a conflict between the servicing and safety precautions, always follow the safety precautions. WARNING: An electrolytic capacitor installed with the wrong polarity might explode. 1. Servicing precautions are printed on the cabinet. 5.
Code PLU Entry - Preset Price Override..............26 Code PLU Entry - Repeat..................26 Code PLU Entry - Multiplication ................27 Code PLU Entry - Multiplication with Decimal Point ..........27 Contents • i Sam4S ER230 Series Electronic Cash Register AU...
Page 6
Tare Weight Entry .....................53 Manual Tare Weight Entry ..................54 Manual Weight Entry ....................55 X/Z Mode Introduction..........................57 X/Z Reports ..........................58 Running a Report - General Instructions ..............58 Report Table ......................59 Electronic Journal Table....................60 ii • Getting Started Sam4S ER230 Series Electronic Cash Register AU...
Page 7
Program 70 - Function Key Options Programming..........101 Program 80 - Function Key Descriptor Programming ..........102 Program 90 - Function Key HALO or Percentage Rate Programming ....103 ADD CHECK (Cafeteria Tray Total)..............104 Contents • iii Sam4S ER230 Series Electronic Cash Register AU...
Page 8
Program 1300 - Date and Time Programming............149 Program 1400 - Scale Tare Weight Programming...........150 Program 1600 - Machine Number Programming ............151 Program Scans ........................152 Program 15 - Program Scans ...................152 iv • Getting Started Sam4S ER230 Series Electronic Cash Register AU...
Page 9
Sample Reports Financial ..........................155 Time............................159 PLU............................160 Clerk ............................161 Individual Clerk........................162 Groups ........................... 163 Stock ............................164 Contents • v Sam4S ER230 Series Electronic Cash Register AU...
ER-230, with its superb thermal printing system, always provides the fastest in transaction speeds. • ER-230 is preset with 10% GST and Australia rounding as well as a number of other useful functions. Getting Started • 1 Sam4S ER230 Series Electronic Cash Register AU...
4. Insert the paper roll as shown. Besure to note the correct direction that the paper comes off the roll. Poll out a small amount of paper as shown (E). 2 • Getting Started Sam4S ER230 Series Electronic Cash Register AU...
Page 13
5. Close the housing cover (F). 6. Replace the printer cover. Getting Started • 3 Sam4S ER230 Series Electronic Cash Register AU...
12 PLU keys are on the keyboard. • 12 character programmable descriptors for PLUs and functions. • Up to 99 PLU Group totals. • Up to 99 clerks with separate report totals. 4 • Getting Started Sam4S ER230 Series Electronic Cash Register AU...
The front display offers supplemental descriptors, which appear in the first two display positions (as shown). These descriptors help the operator by supplying additional information while operating the register, and may be accompanied by an error tone. Supplemental descriptors include: AMOUNT VOID Getting Started • 5 Sam4S ER230 Series Electronic Cash Register AU...
The number of times an item has been repeated is displayed The amount of the item, subtotal or total, is displayed in the Amount rightmost portion of the display Rear Display Message Change Due Negative Entry Subtotal Getting Started • 7 Sam4S ER230 Series Electronic Cash Register AU...
Page 18
Numbered Error Conditions 8 • Getting Started Sam4S ER230 Series Electronic Cash Register AU...
(It is possible to use but the battery needs to be recharged. ) LOW BATTERY ERROR (The machine can not be used any more.) SYSTEM ERROR (If this problem occurs, call the service engineer.) Getting Started • 9 Sam4S ER230 Series Electronic Cash Register AU...
ER-230 memory may cause damage or loss to the program. Do not share this information with unauthorized users. Perform "Clear All Totals", or "Clear PLU File" if you wish to clear only parts of ER-230 Series memory. Complete clearing of all memory areas and installation of the default program can be done...
3. While continuing to hold the SBTL key, turn the power switch to the ON position. 4. The message "INITIAL CLEAR OK!” prints when the initial clear is complete. 12 • Getting Started Sam4S ER230 Series Electronic Cash Register AU...
Use to allow cash out function when EFTPOS terminal is connected and activated. 0(zero) CASH OUT amount cash out will generate a sequence error. This function only allows within a sale. (EPROM V1.003) Operating Instructions • 13 Sam4S ER230 Series Electronic Cash Register AU...
Page 24
For example, a macro key could be set to tender (preset tender) a common currency, such as $5 into the cash key. Use to switch operation modes sequencially from VOID, OFF, REG, X, Z, PGM and S MODE then back to VOID with another circle. 14 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
Page 25
Press the VALID key to print a one-line validation on a separate form or piece of paper. Any VALID item registration, discount or payment may be validated. Operating Instructions • 15 Sam4S ER230 Series Electronic Cash Register AU...
Page 26
The percent rate may be entered or preprogrammed, or the percent keys can be programmed discount or with a negative open or preset price, thus acting as coupon keys. surcharge) A percentage key may also be set up to accept charge tip entries. 16 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
To sign on a clerk, press the CLERK key, enter the clerk code, and then press the CLERK key again. CLERK CLERK Clerk Code (up to 6 digits) To sign the clerk off, enter 0 (Zero) and press the CLERK key. CLERK Operating Instructions • 17 Sam4S ER230 Series Electronic Cash Register AU...
2. To turn the receipt off, enter 9 9, press the SBTL key. Enter 1, press CASH. SBTL CASH 3. To turn the receipt on, enter 9 9, press the SBTL key. Enter 0, press CASH. SBTL CASH 18 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
Group report To perform a item registration, need to switch to REG Mode by press MODE function key if there is no specific instruction given. Operating Instructions • 19 Sam4S ER230 Series Electronic Cash Register AU...
Receipt Example: 1. Press a preset PLU. THANK-YOU For example, press PLU 5: CALL AGAIN DATE 15/01/2003 WED TIME 08:33 PLU5 $1.29 TOTAL $1.29 CASH $1.29 CLERK 1 No.000011 00001 20 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
For example, press PLU 1: CLERK 1 No.000011 00001 3. To register a second item exactly as the first, press the PLU a second time. For example, press PLU 1: Operating Instructions • 21 Sam4S ER230 Series Electronic Cash Register AU...
For example, enter 4 on the numeric key DATE 15/01/2003 WED TIME 08:33 pad. @1.99 PLU1 T1 $7.96 $0.48 TOTAL $8.44 2. Press a PLU. CASH $8.44 CLERK 1 No.000011 00001 For example, press PLU 1: 22 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
$3.93 not use the decimal key. CLERK 1 No.000011 00001 For example, if the price is $.99 per kilo, enter: 3. Press a PLU. For example, press PLU 1: Operating Instructions • 23 Sam4S ER230 Series Electronic Cash Register AU...
CALL AGAIN PLU.) DATE 15/01/2003 WED TIME 08:33 For example, press PLU 6: PLU6 $1.29 TOTAL $1.29 CASH $1.29 CLERK 1 No.000011 00001 24 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
1. Enter the PLU number; press the PLU THANK-YOU key. CALL AGAIN For example, enter: DATE 15/01/2003 WED TIME 08:33 PLU1 $1.29 TOTAL $1.29 CASH $1.29 CLERK 1 No.000011 00001 Operating Instructions • 25 Sam4S ER230 Series Electronic Cash Register AU...
PLU1 T1 $2.99 PLU1 T1 $2.99 $0.36 2. To register a second item exactly as the TOTAL $6.34 first, press the PLU key again. CASH $6.34 CLERK 1 No.000011 00001 26 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
TIME 08:33 enter: 3.75X @2.99 PLU3 T1 $11.21 X/TIME $0.67 TOTAL $11.88 2. Enter the PLU number; press the PLU CASH $11.88 key. CLERK 1 No.000011 00001 For example, enter: Operating Instructions • 27 Sam4S ER230 Series Electronic Cash Register AU...
CLERK 1 No.000011 00001 For example, if the items are priced 3 for $1.00, enter: X/T IME 3. Enter the PLU number; press the PLU key. For example, enter: 28 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
$12.68 3. Enter an amount on the number pad. Do CLERK 1 No.000011 00001 not use the decimal key. For example, for $2.99, enter: 4. Press the PLU key. Operating Instructions • 29 Sam4S ER230 Series Electronic Cash Register AU...
$2.99 $0.72 For example, for $2.99, enter: TOTAL $12.68 CASH $12.68 CLERK 1 No.000011 00001 4. Press the PLU key. 5. For additional identical items, press more PLU key(s). 30 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
1 will add the digit 1 to the fourth PLU # position, resulting in the registration of PLU #1001. 4. Press another PLU. In this example press PLU 2 with a price of $1.50. Operating Instructions • 31 Sam4S ER230 Series Electronic Cash Register AU...
$2.00 for price level 2. 4. Press another PLU. In this example press PLU 2 programmed to register PLU #2 with price level 1. Note that the level 1 price is registered. 32 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
$0.00 "PROMO" displays. CASH $0.00 CLERK 1 No.000011 00001 PROMO 3. Press PLU 1 again. You cannot enter an item that has not been already registered in this transaction. Operating Instructions • 33 Sam4S ER230 Series Electronic Cash Register AU...
2. Enter the item or items that are wasted. PLU2 $1.50 ***WASTE*** 3. Press the WASTE key again to total the TOTAL $2.75 wasted items: CLERK 1 No.000011 00001 WAST E 34 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
So, if you want to discount items but not every item in a sale, you will need two % keys. To discount on the whole sale, you will need to press SUBTOTAL first. Operating Instructions • 35 Sam4S ER230 Series Electronic Cash Register AU...
For example, for one third off enter: -33.333% AMOUNT -3.33 TOTAL $6.67 CASH $6.67 CLERK 1 No.000011 00001 3. Press the %1 key: 4. The discount is automatically subtracted. 36 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
Please refer to operation sequences on previous. For setting, please refer to % (1 ~ 5) (Discounts or Surcharges) in Function Key Programming in Program Mode Programming for more detail. Operating Instructions • 37 Sam4S ER230 Series Electronic Cash Register AU...
PLU where it PLU2 T1 -2.99 was registered originally. -0.18 TOTAL -3.17 CASH -3.17 CLERK 1 No.000011 00001 3. Total the sale with CASH, CHECK, or a CHARGE function. Operating Instructions • 39 Sam4S ER230 Series Electronic Cash Register AU...
PLU2 -1.29 3. Enter the price of the first item, and then $0.14 press the PLU where it was registered TOTAL $2.43 originally. CASH $2.43 CLERK 1 No.000011 00001 40 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
3. All totals and counters are corrected as if CASH -3.43 the original transaction did not take CLERK 1 No.000011 00001 place. NB. Be sure to turn the key back when finished. Operating Instructions • 41 Sam4S ER230 Series Electronic Cash Register AU...
4. Enter the charge amount received, press CHARGE1 CHARGE 5. You can continue to itemize receipts, or you can finalize by pressing or selecting the same received on account key. Operating Instructions • 43 Sam4S ER230 Series Electronic Cash Register AU...
4. Enter the charge amount received, press CHARGE1 CHARGE 5. You can continue to itemize paid outs, or you can finalize by pressing or selecting the same paid out key. 44 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
"Sub" indicated on the rear display. SBT L The subtotal can be printed if the system option is set. See "Print Option Programming" in the "Program Mode Programming" chapter. Operating Instructions • 45 Sam4S ER230 Series Electronic Cash Register AU...
CALL AGAIN DATE 15/01/2003 WED TIME 08:33 CHECK PLU2 $7.96 TOTAL $7.96 3. The display will indicate the total amount CHECK $7.96 of the cash sale. CLERK 1 No.000011 00001 46 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
TOTAL $14.30 CHECK $20.00 CHECK CHANGE $5.70 CLERK 1 No.000011 00001 4. The display will indicate the total amount of the check tendered and the change due, if any. Operating Instructions • 47 Sam4S ER230 Series Electronic Cash Register AU...
For example, enter $10.00 and press CHECK: CH ECK 5. When the total tendered equals or exceeds the total due, the receipt will print and the transaction is complete. 50 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
The currency symbol you program $5.17 change due. The change due is will display here. See "Print Option computed in home currency! Programming" in the "Program Mode Programming" chapter. Operating Instructions • 51 Sam4S ER230 Series Electronic Cash Register AU...
$4.77 number pad. Do not use the decimal key. CASH $4.77 CLERK 1 No.000011 00001 For example, for $3.00, enter: 4. Press a PLU. For example, press PLU 1: 52 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
Enter the price per kilo on the number pad. Do not use the decimal key. For example, for $3.00, enter: 5. Press a PLU. For example, press PLU 1: Operating Instructions • 53 Sam4S ER230 Series Electronic Cash Register AU...
Enter the price per kilo on the number pad. Do not use the decimal key. For example, for $3.00, enter: 6. Press a PLU. For example, press PLU 1: 54 • Operating Instructions Sam4S ER230 Series Electronic Cash Register AU...
3. Enter the price per kilo on the number CASH $4.77 pad. Do not use the decimal key. CLERK 1 No.000011 00001 For example, for $3.00, enter: 4. Press a PLU. For example, press PLU 1: Operating Instructions • 55 Sam4S ER230 Series Electronic Cash Register AU...
Some register operations may be programmed to require the control lock in the X position in order to operate. All reports require a key that will access the X or Z position. X/Z Mode • 57 Sam4S ER230 Series Electronic Cash Register AU...
2. Select a report type and the report mode. 3. Move to the position indicated by press MODE function key. 4. Enter the key sequence for the report you have selected. 58 • X/Z Mode Sam4S ER230 Series Electronic Cash Register AU...
EC/VOID PRINT EJ 308 -SBTL NO SALE PRINT EJ 309 –SBTL CANCEL PRINT EJ BY 401 – 5 401-405(depends on Max Clerk)-SBTL CLERK EJ RESET 399- SBTL (No Printing) 60 • X/Z Mode Sam4S ER230 Series Electronic Cash Register AU...
CLERK 1 No.000001 00000 3. Enter the total of cash. C ASH 4. Enter the total of checks. CHECK 5. Press the CASH key to total the declaration. CASH X/Z Mode • 61 Sam4S ER230 Series Electronic Cash Register AU...
Program 50 - EPROM Information • Program 60 - Memory Allocation Programming / Scan • Program 70 - Function Key Assignment Programming • Program 8x - RS232C Serial Ports Communication Options Service Mode Programming • 63 Sam4S ER230 Series Electronic Cash Register AU...
When you want to enter PC Online mode, all you have to do is to set 232 Communication Option in Programming. When PC sends commands to ECR, The ECR will be automatically Online Mode if connected. 64 • Service Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
5. If you want to finish memory allocation, Enter CASH key with no numeric key input. If you want to allocate another memory area, repeat step 3 and 4. CASH Service Mode Programming • 65 Sam4S ER230 Series Electronic Cash Register AU...
Program 50 - EPROM Information 1. Switch to S Mode by press MODE function key. 2. To Scan EPROM Information, enter 5 0, and then press the SBTL key. SBT L 66 • Service Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
3. Refer to Function Key Codes to find the code for the key you wish to assign, press the location you wish to program. Repeat this step to assign another key. Location Key Code 4. Press CASH key to finalize key assignment program. CASH Service Mode Programming • 67 Sam4S ER230 Series Electronic Cash Register AU...
NOT USED CASH PRICE LEVEL 1 PROMO INACTIVE CHARGE 1 PRICE LEVEL 2 REC ON ACCT 1 NON ADD CHARGE 2 REC ON ACCT 2 NOT USED NOT USED 68 • Service Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Mode. Each section details a specific area of register programming. • The Default program is set to 10.000% VAT on Tax 1 and the description is set to GST already. Program Mode Programming • 73 Sam4S ER230 Series Electronic Cash Register AU...
Overlay Method is an easy and fast method to program a descriptor. During descriptor programming, the keyboard button functions changes to the layout shown below. ER-230 Alpha Keyboard Overlay BACK SPACE DOUBLE CAPS 74 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
If the tax is a percentage added to the sale (normal add on tax), enter: If the tax is a percentage value added tax (VAT; calculated as part of the sale), enter: 76 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Page 87
(1/2/3/4) Tax Rate You must enter decimal type Info The Default program is set to 10.000% VAT on Tax 1 and the description is set to GST already. Program Mode Programming • 77 Sam4S ER230 Series Electronic Cash Register AU...
PLU will automatically trigger registration of the linked PLU. • Program 400 - PLU Delete Programming allows you to delete the PLU. • Program 450 - PLU Mix & Match Programming. 78 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
N9, i.e. auto tare by number 1, just enter 1.) Australian GST status is preset by default. X/TIME 5. To program additional PLUs, repeat from step 3, or press the CASH key to finalize the program. CASH Program Mode Programming • 79 Sam4S ER230 Series Electronic Cash Register AU...
Page 90
No = 0 Yes = 1 PLU counter is not reset when a PLU Z report is No = 0 done? Default values have been highlighted in bold print 80 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
X/TIME key. X/TIME 5. Program additional PLUs, repeat from step 3, or press the CASH key to finalize the program CASH Program Mode Programming • 81 Sam4S ER230 Series Electronic Cash Register AU...
0 3 0 0 0 0. Then press the X/TIME key. X/TIME Group Group Group 5. To program additional PLUs, repeat from step 3, or press the CASH key to finalize the program. CASH 82 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
If the PLU Price Level is 2, repeat this with level 2 price again (or enter $0.00 price). X/TIME Pri ce/HALO 5. To program additional PLUs, repeat from step 3, or press the CASH key to finalize the program. CASH Program Mode Programming • 83 Sam4S ER230 Series Electronic Cash Register AU...
4. Enter the stock amount you wish to add (up to six digits), press the X/TIME key. X/T IME Stock Amount 5. To program additional PLUs, repeat from step 3, or press the CASH key to finalize the program. CASH 84 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Enter up to 12 X/TIME three-character codes 5. To program additional PLUs, repeat from step 3, or press the CASH key to finalize the program. CASH Program Mode Programming • 85 Sam4S ER230 Series Electronic Cash Register AU...
If you want to unlink, press 0 then PLU key. 5. To program additional PLUs, repeat from step 3, or press the CASH key to finalize the program. CASH 86 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
For a barcode item, scan the barcode. 4. Press X/TIME key. X/TIME 5. To program additional PLUs, repeat from step 3, or press the CASH key to finalize the program. CASH Program Mode Programming • 87 Sam4S ER230 Series Electronic Cash Register AU...
X/TIME key. X/TIME 5. To program additional PLUs, repeat from step 3, or press the CASH key to finalize the program. CASH 88 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Press one of the 12 PLU key on the keyboard. PLU # • Enter PLU number then press PLU function key. Enter the PLU# The new item will be created and registered as per the selected product. Program Mode Programming • 89 Sam4S ER230 Series Electronic Cash Register AU...
Page 100
TAX Type Tax 1 (GST) Tax 3 Tax 2 Tax 4 No Tax 6. The item will be registered with the description and price entered, and tax status selected. 90 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
6. Press the CASH key to end system option programming. System Option Flowchart Repeat for each System Option SBT L X/T IME SBTL CASH Option # Status Default values have been highlighted in bold print Program Mode Programming • 91 Sam4S ER230 Series Electronic Cash Register AU...
Percentage and Tax calculations Always round up = will: Always round down = Round up at 0.005 = Split price calculations will: Always round up = Always round down = 92 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Page 103
#22-1, #32-1, and #32-2) No = 0 (must turn New Zealand Rounding off first) Yes = 0 Allow Z stock report? No = 4 Enter = Training mode Exit = Program Mode Programming • 93 Sam4S ER230 Series Electronic Cash Register AU...
Page 104
Use Mode password ? Yes = 1 (WARNING! Set password before turn ON this No = 0 feature!) (EPROM v1.008) Default values have been highlighted in bold print 94 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
6. Press the CASH key to end print option programming. Print Option Flowchart Repeat for each Print Option SBT L X/T IME SBTL CASH Option # Status Default values have been highlighted in bold print 96 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Yes = 0 Print Grand total on the X Financial report ? No = 2 Yes = 0 Print Grand total on the Z Financial report ? No = 4 Program Mode Programming • 97 Sam4S ER230 Series Electronic Cash Register AU...
Page 108
Print average items per customer on the Financial Yes = 0 report? No = 1 Print average sales per customer on the Financial Yes = 0 No = 2 report? 98 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Page 109
To use three digit alpha character codes you must select ‘No’ in system option #30 (See “System Option Programming). Also see Descriptor Programming Methods for Alpha Overlay and/or Descriptor Code Table. Program Mode Programming • 99 Sam4S ER230 Series Electronic Cash Register AU...
Specific programming instructions for each function key. To change descriptors on reports see: “Program 701 - Financial Report Message Programming ” and “Program 710 - Clerk Report Message Programming also. ” 100 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
N6 and you are only selecting a value for N6, just enter the value for N6.) Press the function key you wish to program. FUNCTION 4. To program additional function keys, repeat from step 3, or press the CASH key to finalize the program. CASH Program Mode Programming • 101 Sam4S ER230 Series Electronic Cash Register AU...
4. To program additional function keys, repeat from step 3, or press the CASH key to finalise the program. CASH NOTE: The MACRO (1 - 10) function keys descriptor is programmed with Programmed 711. Please refer to Miscellaneous Programming - Macro Name Programming. 102 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
4. Press the function key on the keyboard you wish to program. FUNCTION 5. To program additional function keys, repeat from step 2, or press the CASH key to finalize the program. CASH Program Mode Programming • 103 Sam4S ER230 Series Electronic Cash Register AU...
Yes = 4 Validation is compulsory? No = 0 Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” 104 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” HALO - Program 90 - Refer to “Program 90 - Function Key HALO ” Program Mode Programming • 105 Sam4S ER230 Series Electronic Cash Register AU...
Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” HALO - Program 90 - Refer to “Program 90 - Function Key HALO” 106 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” HALO - Program 90 - Refer to “Program 90 - Function Key HALO” Program Mode Programming • 107 Sam4S ER230 Series Electronic Cash Register AU...
Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” HALO - Program 90 - Refer to “Program 90 - Function Key HALO” 108 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” HALO - Program 90 - Refer to “Program 90 - Function Key HALO” Program Mode Programming • 109 Sam4S ER230 Series Electronic Cash Register AU...
Yes = 4 Print consecutive number? No = 0 Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” 110 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
The US dollar (home currency) is worth 1.3720 Canadian dollars (foreign currency). Decimal Exchange Rate Position The US dollar (home currency) is worth 110.24 Japanese Yen (foreign currency). Decimal Exchange Rate Position Program Mode Programming • 111 Sam4S ER230 Series Electronic Cash Register AU...
Yes = 1 Key is inactive? No = 0 Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” 112 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” HALO - Program 90 - Refer to “Program 90 - Function Key HALO” Program Mode Programming • 113 Sam4S ER230 Series Electronic Cash Register AU...
- Refer to “Program 80 - Function Key Descriptor” MACRO (1 ~ 10) Descriptor - Program 771 - Refer to “ Program 771 - Macro Name Programming ” in Macro Name Programming 114 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” HALO - Program 90 - Refer to “Program 90 - Function Key HALO” Program Mode Programming • 115 Sam4S ER230 Series Electronic Cash Register AU...
- Refer to “Program 80 - Function Key Descriptor” Affect Digit - Program 90 Affect Digit (1-14) of PLU# Repeat for another function key SBT L 1-14 CASH 116 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Enter up to 18 descriptor codes CASH To program the ‘#(non add)’ descriptor: Repeat for another function key FUNCTION SBT L Enter up to 18 descriptor codes CASH Program Mode Programming • 117 Sam4S ER230 Series Electronic Cash Register AU...
Yes = 4 Validation is compulsory? No = 0 Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” 118 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Taxable by tax 4? No = 0 Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” Program Mode Programming • 119 Sam4S ER230 Series Electronic Cash Register AU...
Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” HALO - Program 90 - Refer to “Program 90 - Function Key HALO” 120 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Yes = 4 price entry? No = 0 Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” Program Mode Programming • 121 Sam4S ER230 Series Electronic Cash Register AU...
Print table# at the remote printer? No = 0 Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” 122 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Using tare number five to manually enter a tare weight? No = 0 Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” Program Mode Programming • 123 Sam4S ER230 Series Electronic Cash Register AU...
Yes = 4 Validation is compulsory? No = 0 Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” 124 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” HALO - Program 90 - Refer to “Program 90 - Function Key HALO” Program Mode Programming • 125 Sam4S ER230 Series Electronic Cash Register AU...
Default values have been highlighted in bold print Descriptor - Program 80 - Refer to “Program 80 - Function Key Descriptor” HALO - Program 90 - Refer to “Program 90 - Function Key HALO” 126 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Allow % key preset override active in X control lock Yes = 1 position only? No = 0 Yes = 2 Validation is compulsory? No = 0 Default values have been highlighted in bold print Program Mode Programming • 127 Sam4S ER230 Series Electronic Cash Register AU...
Page 138
NOTE: If key is amount, enter 5 digit HALO, or 0 for no HALO. If key is percentage enter the percentage in a five-digit format, without the decimal (XX.XXX). For example: for 10%, enter 10000; for 5.55%, enter 05550; for 99.999%, enter 99999. 128 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Program 801 - Drawer Assignment & Training Clerk Programming • Program 810 - Clerk Description Programming allows you to set a unique, up to 12 character, descriptor for each clerk Program Mode Programming • 129 Sam4S ER230 Series Electronic Cash Register AU...
Enter the secret code, SBTL up to 6 digits 5. Repeat from step 3 for each clerk you wish to program. Press the CASH key to finalize the program. CASH 130 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
CASH NOTE: When set to ‘0’ for default drawer, will show ‘1’ on the Program Scan - Clerk Scan, ‘1’ will show ‘2’, ‘2’ will show ‘0’. Program Mode Programming • 131 Sam4S ER230 Series Electronic Cash Register AU...
4. If you are programming using alpha overlay; Type up to 12 SBTL descriptor keys Enter up to 12 SBTL three-character codes 5. Press the CASH key to finalize the program. CASH 132 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Program 601 - Price Programming • Program 610 - Mix & Match Description Programming allows you to set a unique, up to 12 characters, descriptor for Mix & Match Table. Program Mode Programming • 133 Sam4S ER230 Series Electronic Cash Register AU...
4. Enter a price (up to 7 digits); press the SBTL key. SBTL Price/HALO 5. Repeat from step 3 for each table you wish to program. Press the CASH key to finalize the program. CASH 134 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
4. If you are programming using alpha overlay, Type up to 12 SBTL descriptor keys Enter up to 12 SBTL three-character codes 5. Press the CASH key to finalize the program. CASH Program Mode Programming • 135 Sam4S ER230 Series Electronic Cash Register AU...
No = 0 Default values have been highlighted in bold print 5. To program additional groups, repeat from step 3, or press the CASH key to finalize the program. CASH 136 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Enter up to 12 SBTL three-character codes 5. To program additional groups, repeat from step 3, or press the CASH key to finalize the program. CASH Program Mode Programming • 137 Sam4S ER230 Series Electronic Cash Register AU...
6. Repeat from step 3 - 5 to program additional macros. Press the CASH key to finalize the program. CASH To removing a Macro If you wish to remove a keystroke from a macro, replace the current function with the INACTIVE function. Program Mode Programming • 139 Sam4S ER230 Series Electronic Cash Register AU...
4. If you are programming using alpha overlay, Type up to 32 SBTL descriptor keys Enter up to 32 SBTL three-character codes 5. Press the CASH key to finalize the program. CASH 140 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
4. If you are programming using alpha overlay, Type up to 12 SBTL descriptor keys Enter up to 12 SBTL three-character codes 5. Press the CASH key to finalize the program. CASH Program Mode Programming • 141 Sam4S ER230 Series Electronic Cash Register AU...
Page 152
DRWR TTL NOSALE PROMO CASH-IN-D WASTE CHECK-IN-D TRAIN TTL NET SALE FD/S-IN-D MIX&MATCH ROUND TTL CREDIT TAX1 CHG1-IN-D CREDIT TAX2 CHG2-IN-D CASH OUT (EPROM V1.002) CREDIT TAX3 CHG3-IN-D 142 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
4. If you are programming using alpha overlay, Type up to 12 SBTL descriptor keys Enter up to 12 SBTL three-character codes 5. Press the CASH key to finalize the program. CASH Program Mode Programming • 143 Sam4S ER230 Series Electronic Cash Register AU...
Page 154
Clerk Report Message Message Line NET SALE GROSS SALES CASH-IN-D CHECK-IN-D CHG1 SALES CHG2 SALES CHG3 SALES CHG4 SALES CHG5 SALES CHG6 SALES CHG7 SALES CHG8 SALES DRWR TTL 144 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
4. If you are programming using alpha overlay, Type up to 12 SBTL descriptor keys Enter up to 12 SBTL three-character codes 5. Press the CASH key to finalize the program. CASH Program Mode Programming • 145 Sam4S ER230 Series Electronic Cash Register AU...
3. Type the new PLU code number you wish to use for this NLU key, and Press the NLU key on the keyboard you wish to program, and Press the NLU key again. Same NLU KEY NLU Code 4. Press CASH to finalize the program CASH 146 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
3. Enter a cash-in-drawer limit (up to 8 digits or 0 for no limit); press the X/TIME key. Enter the cash limit, X/T IME up to 8 digits 4. Press the CASH key to finalize the program. CASH Program Mode Programming • 147 Sam4S ER230 Series Electronic Cash Register AU...
3. Enter a cash-in-drawer limit (up to 8 digits or 0 for no limit); press the X/TIME key. Enter the cash limit, X/T IME up to 8 digits 4. Press the CASH key to finalize the program. CASH 148 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
4. Enter the date in MM (month) DD (day) and YY (year) format. Press the X/TIME key: X/TIME 5. Press the CASH key to finalize the program. CASH Program Mode Programming • 149 Sam4S ER230 Series Electronic Cash Register AU...
Press the SBTL key. SBT L 5. To program additional tare weights, repeat from step 3, or press the CASH key to finalize the program. CASH 150 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
2. To begin the program, enter 1 6 0 0, press the SBTL key. SBT L 3. Enter a machine number (up to 5 digits); press the X/TIME key. X/TIME 4. Press the CASH key to finalize the program. CASH Program Mode Programming • 151 Sam4S ER230 Series Electronic Cash Register AU...
Press a PLU key on the keyboard. PLU 1 PLU 10 MACRO PROGRAM SCAN • To read MACRO information, press the MACRO key to be scanned, MACRO# MACRO# 152 • Program Mode Programming Sam4S ER230 Series Electronic Cash Register AU...
Page 163
X/TIME button. When features on more than one function keys are going to be scanned, repeat “4 then X/TIME” followed with next function key. 4. Press the CASH key to finalize the program. CASH Program Mode Programming • 153 Sam4S ER230 Series Electronic Cash Register AU...
XMPT4 SALES $7.50 sales for each tax ITEM DISC. -0.48 Total and count for SALE DISC. each % function key -5.22 (i.e. discounts & coupons) continued . . . Sample Reports • 155 Sam4S ER230 Series Electronic Cash Register AU...
Page 166
(paid out) key. $0.00 P/O 1 Total and count for -140.00 each type R/A P/O 2 (received on $0.00 account) and P/O (paid out) key. continued . . . 156 • Sample Reports Sam4S ER230 Series Electronic Cash Register AU...
Page 167
Total and count for $0.00 each CHARGE key. CHG2 SALES $8.43 CHG3 SALES $8.52 CHG4 SALES -1.60 CHG5 SALES $2.67 CHG6 SALES $13.09 CHG7 SALES $0.00 continued . . . Sample Reports • 157 Sam4S ER230 Series Electronic Cash Register AU...
Page 168
Train mode ******************************** GRAND $375.63 ETHAN 000209 00000 Total and count of mix & match disc. Average number if items per customer, and average dollar sales per customer Grand total 158 • Sample Reports Sam4S ER230 Series Electronic Cash Register AU...
SALES RATE 65.39% period. 14:00-14:59 Percentage of total sales SALES AMT $97.33 SALES RATE 34.61% ******************************** TOTAL CNT TOTAL AMT $281.18 ETHAN 00236 00000 Net sales in all periods. Sample Reports • 159 Sam4S ER230 Series Electronic Cash Register AU...
SALES RATE -7.44% PLU#33 CNT 15.55 $24.72 SALES RATE 9.20% Total activity for all ******************************** PLUs TOTAL CNT 189.56 TOTAL AMT $268.60 ETHAN 000213 00000 Total sales for all PLUs. 160 • Sample Reports Sam4S ER230 Series Electronic Cash Register AU...
ANNA NET SALE $78.75 DRWR TTL $67.03 -------------------------------- LAURA NET SALE $0.00 DRWR TTL $18.64 -------------------------------- PEGGY -------------------------------- MOLLY NET SALE $2.06 DRWR TTL -22.01 -------------------------------- ETHAN 000218 00000 Sample Reports • 161 Sam4S ER230 Series Electronic Cash Register AU...
-------------------------------- Clerk Name INDIVIDUAL CLERK ETHAN Number of NET SALE Transactions $155.23 DRWR TTL $109.81 Net sales for this clerk -------------------------------- ETHAN 000218 00000 Drawer total for this clerk 162 • Sample Reports Sam4S ER230 Series Electronic Cash Register AU...
GROUP : 8 MDSE 58.40 SALES AMT $44.11 GROUP : 9 STORE MDSE 77.56 SALES AMT $74.58 ******************************** TOTAL CNT 189.56 TOTAL AMT $268.60 ETHAN 000237 00000 Net sales for all groups. Sample Reports • 163 Sam4S ER230 Series Electronic Cash Register AU...
DATE 15/01/2003 WED TIME 15:47 REPORT 00001 PLU number or -------------------------------- PLU descriptor ALL PLU STOCK HAMBURGER Current Stock count DBL BURGER ROAST 25.96 UNLEADED 1488.47 PLU33 161.25 ETHAN 000228 00000 164 • Sample Reports Sam4S ER230 Series Electronic Cash Register AU...
