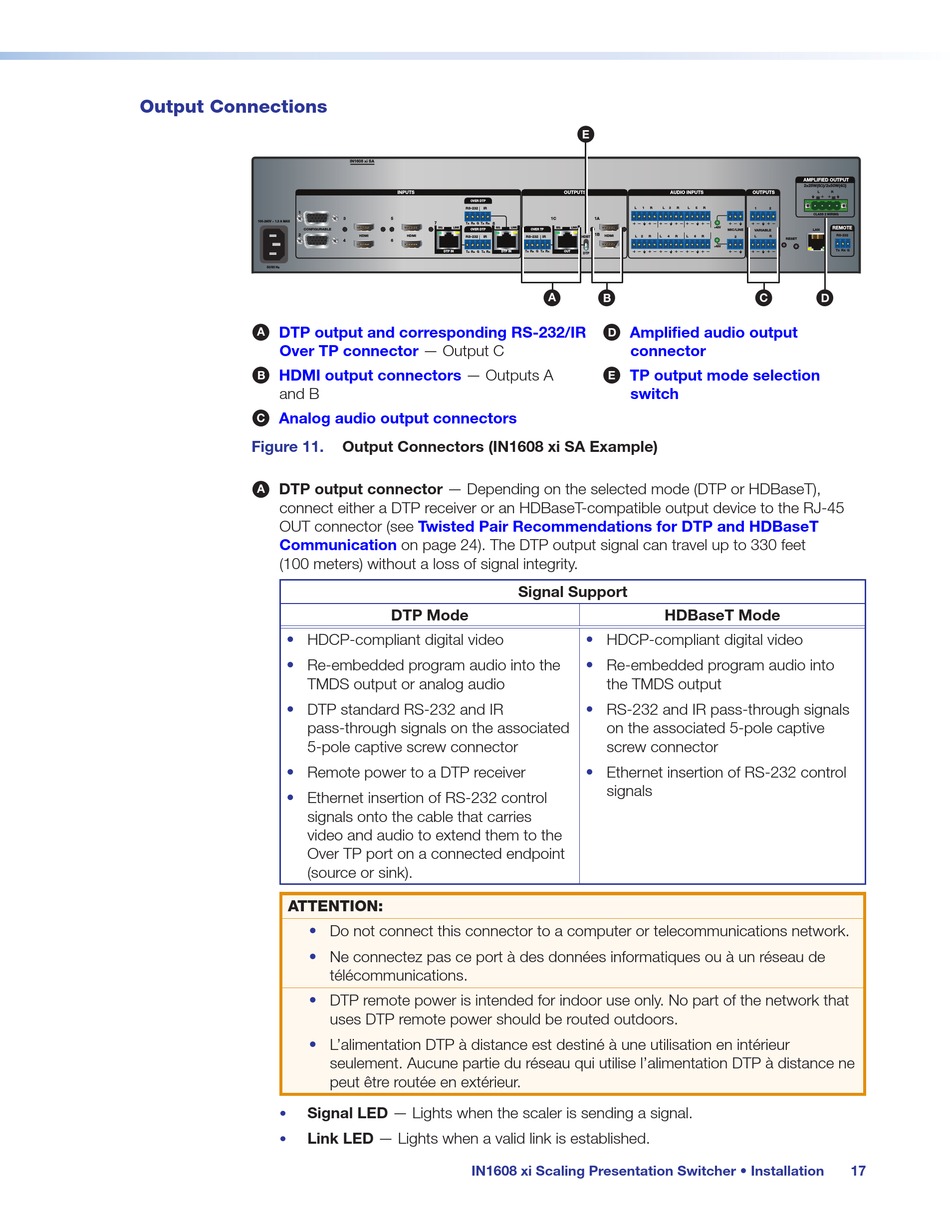

Output Connections

1
100-240V ~ 1.3 A MAX
CONFIGURABLE
2
50/60 Hz
DTP output and corresponding RS-232/IR
A
Over TP connector
HDMI output connectors
B
and B
Analog audio output connectors
C
Figure 11.
DTP output connector — Depending on the selected mode (DTP or HDBaseT),
A
connect either a DTP receiver or an HDBaseT-compatible output device to the RJ-45
OUT connector (see
Communication
(100 meters) without a loss of signal integrity.
• HDCP-compliant digital video
• Re-embedded program audio into the
TMDS output or analog audio
• DTP standard RS-232 and IR
pass-through signals on the associated
5-pole captive screw connector
• Remote power to a DTP receiver
Ethernet insertion of RS-232 control
•
signals onto the cable that carries
video and audio to extend them to the
Over TP port on a connected endpoint
(source or sink).
ATTENTION:
•
•
•
•
Signal LED — Lights when the scaler is sending a signal.
•
Link LED — Lights when a valid link is established.
•
IN1608 xi SA
INPUTS
OVER DTP
RS-232 IR
3 5
7
Tx Rx G Tx Rx 8
SIG LINK SIG
OVER DTP
HDMI
HDMI RS-232 IR
4 6
DTP IN DTP IN
Tx Rx G Tx Rx
— Output C
— Outputs A
Output Connectors (IN1608 xi SA Example)
Twisted Pair Recommendations for DTP and HDBaseT
on page 24). The DTP output signal can travel up to 330 feet
DTP Mode
Do not connect this connector to a computer or telecommunications network.
Ne connectez pas ce port à des données informatiques ou à un réseau de
télécommunications.
DTP remote power is intended for indoor use only. No part of the network that
uses DTP remote power should be routed outdoors.
L'alimentation DTP à distance est destiné à une utilisation en intérieur
seulement. Aucune partie du réseau qui utilise l'alimentation DTP à distance ne
peut être routée en extérieur.
IN1608 xi Scaling Presentation Switcher • Installation
E
AUDIO INPUTS
OUTPUTS
L 1 R L 3 R L
1C 1A
LINK SIG LINK
OVER TP
1B
HDMI
RS-232 IR L 2 R L 4 R L
HDBT
Tx Rx G Tx Rx OUT
DTP
A B
Amplified audio output
D
connector
TP output mode selection
E
switch
Signal Support
HDBaseT Mode
• HDCP-compliant digital video
• Re-embedded program audio into
the TMDS output
• RS-232 and IR pass-through signals
on the associated 5-pole captive
screw connector
• Ethernet insertion of RS-232 control
signals
AMPLIFIED OUTPUT
2x25W(8Ω)/2x50W(4Ω)
L R
OUTPUTS
5 R 1 2
CLASS 2 WIRING
+48V REMOTE
MIC/LINE LAN
VARIABLE
RS-232
6 R 2 L R
RESET
+48V
Tx Rx G
C D
