Extron electronics IN1404XT User Manual

Video scaler and switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IN1404XT
Video Scaler and Switcher
68-755-01
Rev. B
12 04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN1404XT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics IN1404XT

Summary of Contents for Extron electronics IN1404XT

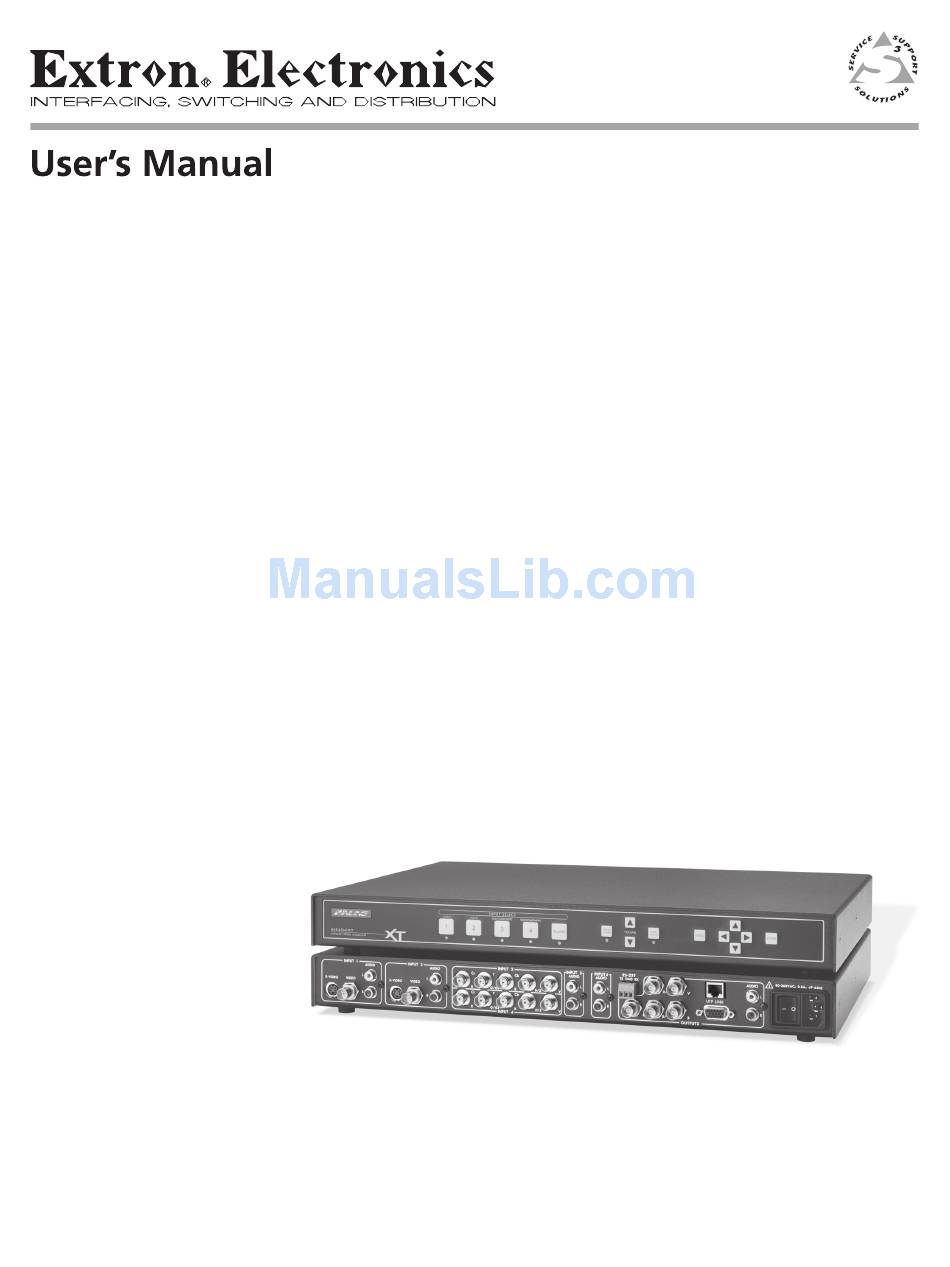

  • Page 1 IN1404XT Video Scaler and Switcher 68-755-01 Rev. B 12 04...
  • Page 2 Precautions Safety Instructions • English This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment. This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

  • Page 3: Table Of Contents

    Sharpness screen ... 3-8 Gamma screen ... 3-9 Noise Filter screen ... 3-9 Comb/Trap selection screen ... 3-9 Reset Video screen ... 3-9 IN1404XT Video Scaler and Switcher • Table of Contents ... 1-1 ... 2-2 ... 2-3 ... 3-2...
  • Page 4 Input blanking adjustment ... Active area adjustment ... Total pixels adjustment ... Scan Type screen ... Input Mode screen ... Optimizing the Audio IN1404XT Video Scaler and Switcher • Table of Contents ... 3-21 ... 3-29 3-11 3-15 3-18 3-20...
  • Page 5 Optional accessories ... B-4 Cables ... B-4 VGA cables ... Pre-cut cables ... Bulk cable ... Assorted connectors, cables, and adapters ... IN1404XT Video Scaler and Switcher • Table of Contents ... 4-1 ... 4-2 ... 4-2 ... 4-2 ... 4-3 ...
  • Page 6 Table of Contents, cont’d 68-755-01 Rev. B All trademarks mentioned in this manual are the properties of their respective owners. 12 04 IN1404XT Video Scaler and Switcher • Table of Contents...

  • Page 7: Chapter 1 • Introduction

    IN1404XT Video Scaler and Switcher Chapter One Introduction About this Manual About the Scaler Features...

  • Page 8: About This Manual

    4.43 S-video (Y/C) and composite video inputs and stereo audio inputs on all four inputs and high resolution RGB video and interlaced or progressive component (YUV) video on inputs 3 and 4. The IN1404XT scales the inputs to standard VGA and HDTV resolutions and refresh rates and outputs RGBHV, RGBS, or RGsB video and stereo audio.

  • Page 9: Tp Transmission

    (up to 500') Extron IN1404XT Video/RGB Scaler Figure 1-1— Typical IN1404XT Video Scaler and Switcher application TP transmission The TP output on the RJ-45 connector and an optional Extron VTR001CM receiver provide a system for long-distance distribution of computer (RGBHV or RGBS) video over Extron’s skew-free A/V UTP cable or over CAT 5 unshielded twisted...

  • Page 10: Features

    Video output resolutions — The IN1404XT outputs an image scaled up to the following output resolutions: • 640 x 480 (VGA) at 60 Hz, 72 Hz, 75 Hz, 85Hz, 96 Hz, 100Hz, and 120 Hz •...
  • Page 11 Seamless Switching - Input 4, when configured as a passive (unscaled) input, serves as a time reference for seamless switching. The IN1404XT provides a seamless transition between scaled inputs on 1, 2, or 3 (RGB, component, S-video, or composite video) and the passive RGB video on input 4.
  • Page 12 Passive (unscaled) video on input 4 cannot be blanked. User memories — The IN1404XT provides 128 user memories that store all video, audio, and input parameters. User memories allow the unit to be optimized for a large number of sources and gives the capability to recall those settings quickly.

  • Page 13: Chapter 2 • Installation

    IN1404XT Video Scaler and Switcher Chapter Two Installation Installation Overview Mounting the Scaler Cabling and Rear Panel Views Configuration...

  • Page 14: Installation Overview

    Installation Installation, cont’d Installation Overview To install and set up an IN1404XT video scaler and switcher for operation, perform the following steps: Disconnect power from all of the equipment, including the video and audio source(s), and the devices that will receive the output video and audio signals.

  • Page 15: Cabling And Rear Panel Views

    Cabling and Rear Panel Views All connectors are on the rear panel (figure 2-2). Figure 2-2 — IN1404XT rear panel connectors and power switch With the exception of input 1 and 2 S-video, all video input and output RCA-to-BNC Connector...

  • Page 16: Standard Output Connections

    See chapter 3, Operation and chapter 4, Programmer’s Guide for details. TP video output connection RJ-45 termination must comply with the TIA/EIA T 568A or TIA/EIA T 568B wiring standards for all connections. IN1404XT Video Scaler and Switcher • Installation RGBHV G/Gs RGBS G/Gs...

  • Page 17: Termination Of Tp Cable

    The largest concern is equalization of skew between cable pairs. Cable systems of 300 feet or less should exhibit no transmission problems if they pass at least CAT 5 channel certification testing. IN1404XT Video Scaler and Switcher • Installation RJ-45 connector TIA/EIA T-568-A TIA/EIA T-568-B...

  • Page 18: Equalizing Pair Skew

    Extron skew compensation coax cables are available in lengths of 2 through 20 feet, see Appendix A, Reference Information, for part numbers. IN1404XT Video Scaler and Switcher • Installation...

  • Page 19: Rs-232 Connection

    LED for the previously selected input go out. Configuration The IN1404XT can be configured using either the front panel controls or the ASCII command set. See chapter 3, Operation and chapter 4, Programmer’s Guide. IN1404XT Video Scaler and Switcher • Installation...
  • Page 20 Installation, cont’d IN1404XT Video Scaler and Switcher • Installation...

  • Page 21: Chapter 3 • Operation

    IN1404XT Video Scaler and Switcher Chapter Three Operation Front Panel Controls and Indicators Front Panel Operations Optimizing the Video Optimizing the Audio Troubleshooting...

  • Page 22: Front Panel Controls And Indicators

    (figure 3-2). Figure 3-1 — IN1404XT video scaler and switcher front panel 15HD Figure 3-2 — Menu system display Video controls Input 1 through 4 buttons —...

  • Page 23: Audio Controls

    Menu button — The Menu button enters and backs out of the main menu system in the IN1404XT. See Front Panel Operations in this chapter for details. Menu , , , and buttons — The Menu buttons navigate the main menu main menu system.

  • Page 24: Front Panel Operations

    Power is applied when the power cord is connected to an AC source and the rear panel Power ( / ) switch is set to the on ( ) position. When AC power is applied, the scaler performs a self-test that blinks all of the front panel LEDs twice and then defaults to indicating the selected input.

  • Page 25: Status Indicators

    The refresh rates that are available depend on the pu t current resolution. buttons. o n t r a s t 1 2 8 IN1404XT Video Scaler and Switcher • Operation 15 sec. pu t u i o n ❖ Ra t e...

  • Page 26: Menu System

    The default setting is 128. IN1404XT Video Scaler and Switcher • Operation buttons to highlight the desired menu option on the buttons to highlight the desired option on the selected...
  • Page 27 ✫ ❖ Inputs 3 and 4. Passive input 4 only ❖ ● The refresh rates that are available depend on the current resolution. IN1404XT Video Scaler and Switcher • Operation 15 sec. 15 sec. Menu Enter ✝ h a r p n e...

  • Page 28: Rgb Gain Screen

    Adjust both settings for optimum picture quality. IN1404XT Video Scaler and Switcher • Operation buttons to highlight the desired color option (such as and buttons to decrease and increase the...

  • Page 29: Gamma Screen

    6 to 27. The default setting is 16 (0dB, no gain or attenuation). IN1404XT Video Scaler and Switcher • Operation and buttons to step to lower- button to highlight the desired...

  • Page 30: Treble Screen

    Enter (and save) button to reset the audio input. Use the button to highlight “No” and press the Enter button to exit the screen without resetting the audio input (or back out of the screen by pressing the Menu button). 3-10 IN1404XT Video Scaler and Switcher • Operation 15 sec. Menu Enter...

  • Page 31: Input Menu

    ✫ RGBHV, RGBS, RGsB, and progresive component ❖ Inputs 3 and 4. Passive input 4 only ❖ ● The refresh rates that are available depend on the current resolution. IN1404XT Video Scaler and Switcher • Operation 15 sec. 15 sec. Menu ✝ o r i z r a c k i ➔...

  • Page 32: Signal Format Screen

    (see Resolution screen in this chapter). The selected aspect ratio is indicated by an arrow (➔). The following aspect ratio selections are available: 3-12 IN1404XT Video Scaler and Switcher • Operation buttons to highlight the Input menu option on the buttons to highlight the desired input and press the...

  • Page 33: Auto Switching Screen

    Aspect ratio setting: Wide screen 16:9 display Example 2: Wide screen Aspect ratio setting: Tomarama Example 4: Tomarama IN1404XT Video Scaler and Switcher • Operation 4:3 display 3-13...

  • Page 34: Input Labels Screen

    The Input Labels screen provides the ability to set the status of the label that can appear on the output displays when you switch inputs: on, off, or momentary (approximately 3 seconds) display. The default label is “Input n”, but these labels can be customized under RS-232 control (see chapter 4, Programmer’s Guide).

  • Page 35: Reset Input Screen

    For best results, set the scaler output to match the capabilities of your display. If necessary, see Optimizing the Video, in this chapter for detailed guidelines for choosing the proper resolution and rate. IN1404XT Video Scaler and Switcher • Operation button to highlight the ●...

  • Page 36: Refresh Rate Screen

    When turned on, seamless switching provides a seamless transition between scaled inputs 1, 2, or 3 (RGB, component, S-video, or composite video) and the passive 3-16 IN1404XT Video Scaler and Switcher • Operation 15 sec. Menu s o l u t i...

  • Page 37: Size Screen

    Size automatically changes to the previously selected values when an input with a different aspect ratio is selected. The IN1404XT only scales up. Therefore, the output size controls may stop at a certain point, which varies depending on the selected resolution, where the input and output resolution are equal.

  • Page 38: Blue Screen Screen

    Press the Enter button to save, recall, or reset the video, audio, and input settings and return to normal system operations. 3-18 IN1404XT Video Scaler and Switcher • Operation button to highlight “ON” and press the Enter (and save) button to button to highlight “Yes” and press the Enter (and save) button to button to highlight “Yes”...

  • Page 39: Baud Rate Screen

    B c o k t o y d a f t l . s button to highlight the desired button to highlight the desired set IN1404XT Video Scaler and Switcher • Operation 15 sec. Menu me t e r ➔...

  • Page 40: System Information Screen

    4. The scaler functions as a switcher only for input 4. Setting up seamless switching Set the IN1404XT to seamlessly switch between scaled inputs on 1, 2, or 3 (RGB, component, S-video, or composite video) and the passive RGB video on input 4 as follows: Apply the RGBHV, RGBS, or RGsB reference to input 4.

  • Page 41: Power-Up Shortcuts

    The DVD player’s scaling and compression defeats the advantage of having 3-2 pulldown detection in the IN1404XT. All sizing adjustments to correct aspect ratio should be done using the IN1404XT. buttons. IN1404XT Video Scaler and Switcher • Operation...

  • Page 42: Resolution And Refresh Rates

    An extremely high refresh rate can also create a compatibility problem in which the video signal is beyond the scan rate of the display. 3-22 IN1404XT Video Scaler and Switcher • Operation...

  • Page 43: Fixed Pixel Displays - Selecting The Optimum Resolution And Refresh Rate

    Hz for most LCD, plasma, D-ILA, and DLP projectors. Higher refresh rates are not recommended for these display technologies. They usually do not improve the image and may cause compatibility problems. IN1404XT Video Scaler and Switcher • Operation s t i t i j "...

  • Page 44: Advanced Input Submenu Options

    For interlaced input signals, this number refers to the total number of lines per frame after de-interlacing, not the number of lines per field. 3-24 IN1404XT Video Scaler and Switcher • Operation 15 sec. 15 sec. Menu...

  • Page 45: Input Blanking Adjustment

    If the horizontal blanking adjustment is set to less than the amount of actual blanking, the IN1404XT starts scaling the input before the start of the active image. This early scaling results in a blank border on the left side and cropping on the right side, and looks as if the image is shifted to the right.

  • Page 46: Active Area Adjustment

    If the number of active image pixels that the scaler is set to scale are less than the amount of actual active pixels that are input, the IN1404XT only scales the set active area and will skip some of the input pixels. This early end to the scaling process results in an output with fewer pixels than it should, and looks as if the image is stretched horizontally.
  • Page 47 Similarly, if the number of active image lines that the scaler is set to scale is set to less than the amount of actual active lines that are input, the IN1404XT only scales the set active area and will skip some of the input lines. This early end to the scaling process results in an output with fewer lines than it should, and looks as if the image is stretched vertically.

  • Page 48: Total Pixels Adjustment

    Three scan type options are available; one, two, or all three can be turned on simultaneously: 3-28 IN1404XT Video Scaler and Switcher • Operation buttons to increase and decrease the number of active pixels. Blanking Area...

  • Page 49: Input Mode Screen

    As necessary, adjust each variable for the input (see Audio menu, in this chapter) for optimum audio quality. Select each input in turn and repeat step 4 for each input. button to highlight the desired IN1404XT Video Scaler and Switcher • Operation 3-29...

  • Page 50: Troubleshooting

    Ensure that the input selected is active. Ensure that the proper signal format is supplied. Check the cabling and make corrections as necessary. Call the Extron S 3-30 IN1404XT Video Scaler and Switcher • Operation Sales & Technical Support Hotline if necessary.

  • Page 51: Specific Problems

    No audio output. Power. The source is incorrect. Ensure that the source is The output is incorrect. The IN1404XT outputs line level Volume too low. Audio may be muted. The input source Autoswitching is cannot be changed.
  • Page 52 The image is compressed vertically. set too high. The image is cropped Input horizontal on the left. 3-32 IN1404XT Video Scaler and Switcher • Operation Possible cause Solution Input 4 is set for Select a different input. If passive (unscaled).
  • Page 53 Input aspect ratio Displayed image is the wrong shape. incorrect. Output aspect ratio incorrect. IN1404XT Video Scaler and Switcher • Operation Solution Select Input>Advanced> setting to match the input signal. Reduce the horizontal position setting. Use the blue screen and the display’s position or size controls...
  • Page 54 Only the top half of the image displays. Image jitters up and down. 3-34 IN1404XT Video Scaler and Switcher • Operation Possible cause Solution Input resolution too The IN1404XT can only scale up. high. Connect a signal with a lower active area.
  • Page 55 Active pixels setting may be too high. Vertical blanking. Active lines setting may be too high. IN1404XT Video Scaler and Switcher • Operation Solution Select Input>Advanced>Scan Type and select Swap Fields to toggle the setting on. Select Input>Advanced>Input Mode and select User Defined to enable the full range of settings.
  • Page 56 Operation, cont’d 3-36 IN1404XT Video Scaler and Switcher • Operation...

  • Page 57: Chapter 4 • Programmer's Guide

    IN1404XT Video Scaler and Switcher Chapter Four Programmer’s Guide Communications Protocols Serial Control Cable Wiring Host-to-Scaler Instructions Scaler Responses Using the Command/Response Table Command/Response Table for RS-232 Commands...

  • Page 58: Serial Control Cable Wiring

    The control panel module’s response to an RS-232 command also consists of a leadingdeliminator, a command code, and an ending deliminator. The ending deliminator signals the end of either the command or the response. IN1404XT Video Scaler and Switcher • Programmer’s Guide UC Cable Connector Shell...

  • Page 59: Scaler Responses

    ASCII command. All entries in the command/response table are shown using the [] delimiters, but any other valid delimiters could be used instead. ASCII to HEX Conversion Table IN1404XT Video Scaler and Switcher • Programmer’s Guide •...

  • Page 60: Symbols

    0 = Off 2 = Momentary 1 = On IN1404XT Video Scaler and Switcher • Programmer’s Guide = Custom label to be displayed, up to 15 characters = Horizontal or vertical size (up to 100 (%)) = Horizontal shift value (variable, per resolution)

  • Page 61: Command/Response Table For Rs-232 Commands

    Turning seamless switch mode off does not reconfigure input 4. When seamless switching is on; and you switch to input 1, 2, or 3; that input is synced to the input 4 reference. The synced input 1, 2, or 3 is termed the “channel in common”.
  • Page 62 Set output sync format [SYNC View sync format [SYNC?] Example: [SYNC?] IN1404XT Video Scaler and Switcher • Programmer’s Guide Response (scaler to host) [OK] [OK] [OK] Inputs 1 and 2 can be set to S-video and composite video only.
  • Page 63 View the green gain value [GRN?] Set a specific blue gain value [BLU Increment blue gain value [BLU+] Decrement blue gain value [BLU-] IN1404XT Video Scaler and Switcher • Programmer’s Guide Response (scaler to host) [OK] [OK] [OK] [OK] [OK]...
  • Page 64 [SHP-] Set sharpness value to default [SHP@] View the sharpness value [SHP?] IN1404XT Video Scaler and Switcher • Programmer’s Guide Response (scaler to host) [OK] Color saturation adjustments are available only for NTSC interlaced component video, S-video, and composite video inputs only.
  • Page 65 [LBL Set custom label [LBL= Example: [LBL=DVD #1] IN1404XT Video Scaler and Switcher • Programmer’s Guide Response (scaler to host) Gamma adjustments are available only for interlaced component video, S-video, and composite video inputs only. The gamma adjustment is not available for the input 4 video signal when it is configured as passive (unscaled).
  • Page 66 Set a specific pixel sampling phase [PHS Increment sampling value [PHS+] Decrement sampling value [PHS-] Set pixel phase to default [PHS@] 4-10 IN1404XT Video Scaler and Switcher • Programmer’s Guide Response (scaler to host) [DVD #1] [OK] [OK] [OK] [OK]...
  • Page 67 View treble level [TRE?] Balance Set balance [BAL Increase balance right [BALR] Increase balance left [BALL] Set balance level to default (center) [BAL@] IN1404XT Video Scaler and Switcher • Programmer’s Guide Response (scaler to host) [OK] [OK] [OK] [OK] [OK] [OK] [OK]...
  • Page 68 PDA, or control system and the scaler until you set the controller to match the scaler’s deliminators. Set delimitors [CMDCD View delimitors [CMDCD?] 4-12 IN1404XT Video Scaler and Switcher • Programmer’s Guide Response (scaler to host) [OK] [OK] [OK] [OK]...
  • Page 69 View the active lines value [BV?] Blanking Set a specific H blanking value Increment H blanking value [BH+] Decrement H blanking value [BH-] IN1404XT Video Scaler and Switcher • Programmer’s Guide Response (scaler to host) [OK] [OK] [OK] [OK] [OK]...
  • Page 70 The input mode settings are available for RGBHV, RGBS, RGsB, and progressive component video inputs only. Set input mode to autodetect [ST 0] Set input mode to lockout changes [ST 1] 4-14 IN1404XT Video Scaler and Switcher • Programmer’s Guide Response (scaler to host) [OK] [OK] [OK]...
  • Page 71 If the auto-detect mode cannot determine the input sampling rate, the user- defined mode is selected automatically. Redetect the input mode [ST 3] View scan type value [ST?] IN1404XT Video Scaler and Switcher • Programmer’s Guide Response Additional description (scaler to host) [OK] All input sampling rates have the same user-definable settings.
  • Page 72 Programmer’s Guide, cont’d 4-16 IN1404XT Video Scaler and Switcher • Programmer’s Guide...

  • Page 73: Appendix A • Reference Information

    IN1404XT Video Scaler and Switcher A ppendix A Reference Information Specifications Part Numbers...

  • Page 74: Specifications

    Output level ... 0V to 5.0V p-p Input impedance ... 1 kohms Output impedance ... 75 ohms Max input voltage ... 5.0V p-p Polarity ... Positive or negative (selectable) IN1404XT Video Scaler and Switcher • Reference Information 2,4,5,6,7,8,9 , 800x600 2,4,5,6,7,8,9 , 852x480...

  • Page 75: Audio Output

    Vibration ... ISTA/NSTA 1A in carton (International Safe Transit Association) Listings ... ETL (UL1950) Compliances ... CE MTBF ... 30,000 hours Warranty ... 3 years parts and labor Specifications are subject to change without notice. IN1404XT Video Scaler and Switcher • Reference Information...

  • Page 76: Part Numbers

    Reference Information, cont’d Part Numbers Included parts These items are included in each order for an IN1404XT: Included parts IN1404XT Video Scaler and Switcher Rack mount ears for IN1403/1404//IN3600 Switchers (black) Rubber feet (4) IEC power cord Tweeker (small screwdriver) IN1404XT User’s Manual...

  • Page 77: Pre-Cut Cables

    BNC-5-75’ MHR (75 feet/23.0 meters) BNC-5-100’ MHR (100 feet/30.0 meters) BNC-5-150’ MHR (150 feet/45.0 meters) BNC-5-200’ MHR (200 feet/60.0 meters) BNC-5-250’ MHR (250 feet/75.0 meters) BNC-5-300’ MHR (300 feet/90.0 meters) IN1404XT Video Scaler and Switcher • Reference Information 26-238-14 26-122-01 26-238-07 26-238-02 26-238-03...

  • Page 78: Bulk Cable

    BNC-4 Mini HR Cable BNC-4 Mini HR bulk, 500’ BNC-4 Mini HR bulk, 1000’ BNC-5 Mini HR Cable BNC-5 Mini HR bulk, 500’ BNC-5 Mini HR bulk, 1000’ IN1404XT Video Scaler and Switcher • Reference Information Part number 26-569-01 26-569-02 26-569-03 26-569-04...

  • Page 79: Assorted Connectors, Cables, And Adapters

    BNC bulkhead connectors, qty. 50 (for custom wall plates) CAT 6 jack (black) Assorted cables and adapters SVHS 6’ (6 feet/1.8 meters) SVHSM - BNCM-3’ IN1404XT Video Scaler and Switcher • Reference Information Part number 22-103-02 22-103-03 Part number 22-141-03...
  • Page 80 Reference Information, cont’d IN1404XT Video Scaler and Switcher • Reference Information...
  • Page 81 Extron Electronics warrants this product against defects in materials and workmanship for a period of two years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:...
  • Page 82 Extron Electronics, USA 1230 South Lewis Street Anaheim, CA 92805 714.491.1500 www.extron.com Fax 714.491.1517 Extron Electronics, Europe Extron Electronics, Asia Beeldschermweg 6C 135 Joo Seng Road, #04-01 3821 AH Amersfoort PM Industrial Building The Netherlands Singapore 368363 +31.33.453.4040 +65.6383.4400 Fax +31.33.453.4050 Fax +65.6383.4664 ©...
