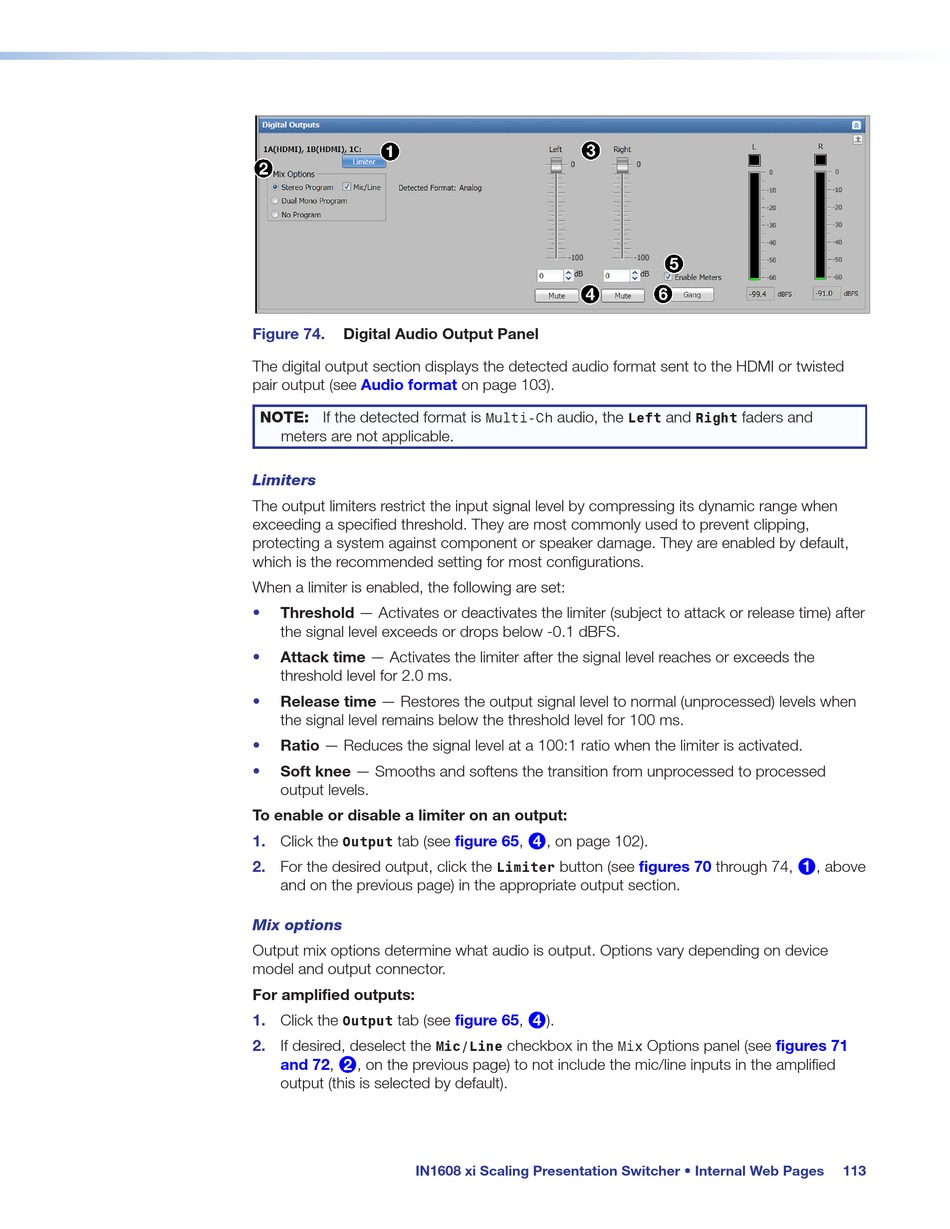

Figure 74. Digital Audio Output Panel
The digital output section displays the detected audio format sent to the HDMI or twisted
pair output (see Audio format
NOTE: If the detected format is
meters are not applicable.
Limiters
The output limiters restrict the input signal level by compressing its dynamic range when
exceeding a specified threshold. They are most commonly used to prevent clipping,
protecting a system against component or speaker damage. They are enabled by default,
which is the recommended setting for most configurations.
When a limiter is enabled, the following are set:
• Threshold — Activates or deactivates the limiter (subject to attack or release time) after
the signal level exceeds or drops below -0.1 dBFS.
Attack time — Activates the limiter after the signal level reaches or exceeds the
•
threshold level for 2.0 ms.
Release time — Restores the output signal level to normal (unprocessed) levels when
•
the signal level remains below the threshold level for 100 ms.
• Ratio — Reduces the signal level at a 100:1 ratio when the limiter is activated.
Soft knee — Smooths and softens the transition from unprocessed to processed
•
output levels.
To enable or disable a limiter on an output:
1. Click the tab (see
Output
2. For the desired output, click the
and on the previous page) in the appropriate output section.
Mix options
Output mix options determine what audio is output. Options vary depending on device
model and output connector.
For amplified outputs:
1.
Click the tab (see
Output
2. If desired, deselect the
and 72, , on the previous page) to not include the mic/line inputs in the amplified
2
output (this is selected by default).
IN1608 xi Scaling Presentation Switcher • Internal Web Pages
on page 103).
audio, the
Multi-Ch
figure 65, , on page 102).
4
button (see
Limiter
figure 65,
).
4
checkbox in the
Mic/Line
and faders and
Left Right
figures 70 through 74,
Options panel (see figures 71
Mix
, above
1
113
