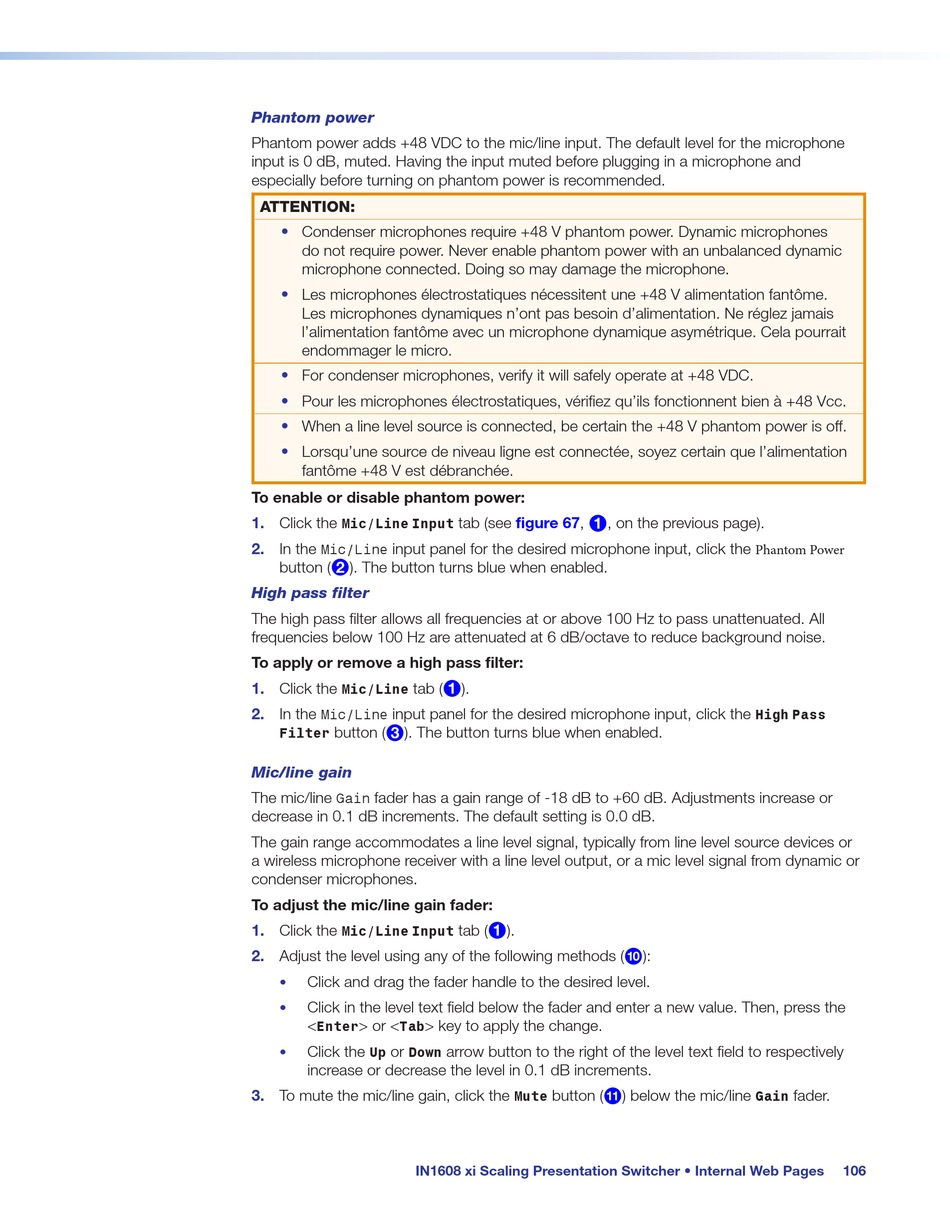

Phantom power
Phantom power adds +48 VDC to the mic/line input. The default level for the microphone
input is 0 dB, muted. Having the input muted before plugging in a microphone and
especially before turning on phantom power is recommended.
ATTENTION:
• Condenser microphones require +48 V phantom power. Dynamic microphones
do not require power. Never enable phantom power with an unbalanced dynamic
microphone connected. Doing so may damage the microphone.
• Les microphones électrostatiques nécessitent une +48 V alimentation fantôme.
Les microphones dynamiques n'ont pas besoin d'alimentation. Ne réglez jamais
l'alimentation fantôme avec un microphone dynamique asymétrique. Cela pourrait
endommager le micro.
• For condenser microphones, verify it will safely operate at +48 VDC.
• Pour les microphones électrostatiques, vérifiez qu'ils fonctionnent bien à +48 Vcc.
• When a line level source is connected, be certain the +48 V phantom power is off.
• Lorsqu'une source de niveau ligne est connectée, soyez certain que l'alimentation
fantôme +48 V est débranchée.
To enable or disable phantom power:
1. Click the
Mic/Line Input
2. In the input panel for the desired microphone input, click the
Mic/Line
button ( ). The button turns blue when enabled.
2
High pass filter
The high pass filter allows all frequencies at or above 100 Hz to pass unattenuated. All
frequencies below 100 Hz are attenuated at 6 dB/octave to reduce background noise.
To apply or remove a high pass filter:
1. Click the tab (
Mic/Line
2. In the input panel for the desired microphone input, click the
Mic/Line
button ( ). The button turns blue when enabled.
Filter 3
Mic/line gain
The mic/line fader has a gain range of -18 dB to +60 dB. Adjustments increase or
Gain
decrease in 0.1 dB increments. The default setting is 0.0 dB.
The gain range accommodates a line level signal, typically from line level source devices or
a wireless microphone receiver with a line level output, or a mic level signal from dynamic or
condenser microphones.
To adjust the mic/line gain fader:
1. Click the
Mic/Line Input
2. Adjust the level using any of the following methods (
Click and drag the fader handle to the desired level.
•
Click in the level text field below the fader and enter a new value. Then, press the
•
< > or < > key to apply the change.
Enter Tab
Click the or
• Up Down
increase or decrease the level in 0.1 dB increments.
3. To mute the mic/line gain, click the
IN1608 xi Scaling Presentation Switcher • Internal Web Pages
tab (see figure 67, , on the previous page).
1
).
1
tab ( ).
1
arrow button to the right of the level text field to respectively
button (
£
Mute
Phantom Power
High Pass
):
¢
) below the mic/line fader.
Gain
