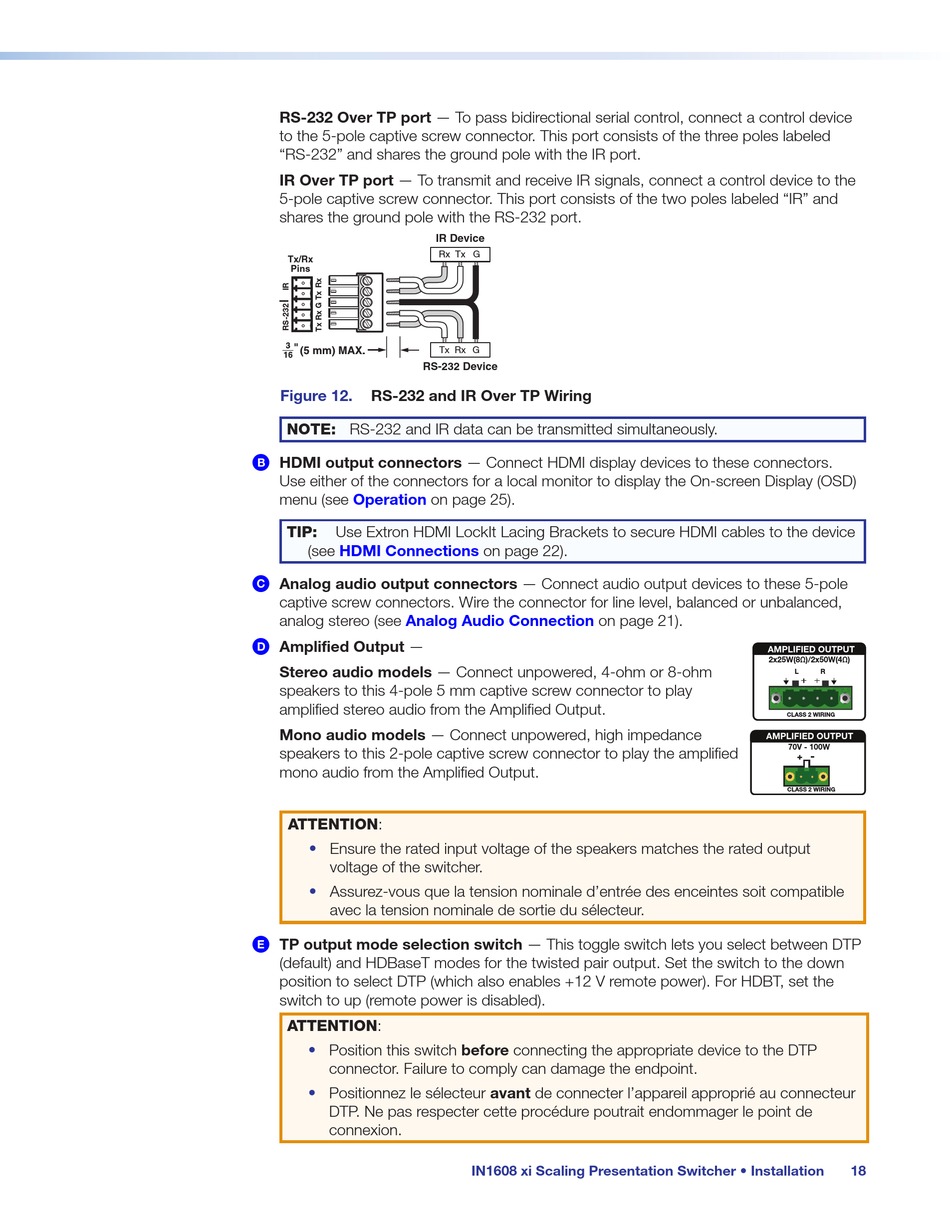

Extron electronics IN1608 xi IPCP SA with LinkLicense User Manual page 26

RS-232 Over TP port — To pass bidirectional serial control, connect a control device
to the 5-pole captive screw connector. This port consists of the three poles labeled
"RS-232" and shares the ground pole with the IR port.
IR Over TP port — To transmit and receive IR signals, connect a control device to the
5-pole captive screw connector. This port consists of the two poles labeled "IR" and
shares the ground pole with the RS-232 port.
Tx/Rx
Pins
RS-232 Device
Figure 12. RS-232 and IR Over TP Wiring
NOTE: RS-232 and IR data can be transmitted simultaneously.
HDMI output connectors — Connect HDMI display devices to these connectors.
B
Use either of the connectors for a local monitor to display the On-screen Display (OSD)
menu (see Operation on page 25).
TIP: Use Extron HDMI LockIt Lacing Brackets to secure HDMI cables to the device
(see HDMI Connections
Analog audio output connectors — Connect audio output devices to these 5-pole
C
captive screw connectors. Wire the connector for line level, balanced or unbalanced,
analog stereo (see Analog Audio Connection
Amplified Output —
D
Stereo audio models — Connect unpowered, 4-ohm or 8-ohm
speakers to this 4-pole 5 mm captive screw connector to play
amplified stereo audio from the Amplified Output.
Mono audio models — Connect unpowered, high impedance
speakers to this 2-pole captive screw connector to play the amplified
mono audio from the Amplified Output.
ATTENTION:
• Ensure the rated input voltage of the speakers matches the rated output
voltage of the switcher.
• Assurez-vous que la tension nominale d'entrée des enceintes soit compatible
avec la tension nominale de sortie du sélecteur.
TP output mode selection switch — This toggle switch lets you select between DTP
E
(default) and HDBaseT modes for the twisted pair output. Set the switch to the down
position to select DTP (which also enables +12 V remote power). For HDBT, set the
switch to up (remote power is disabled).
ATTENTION:
• Position this switch before connecting the appropriate device to the DTP
connector. Failure to comply can damage the endpoint.
• Positionnez le sélecteur avant de connecter l'appareil approprié au connecteur
DTP. Ne pas respecter cette procédure poutrait endommager le point de
connexion.
IR Device
Rx Tx G
Tx Rx G
on page 22).
on page 21).
