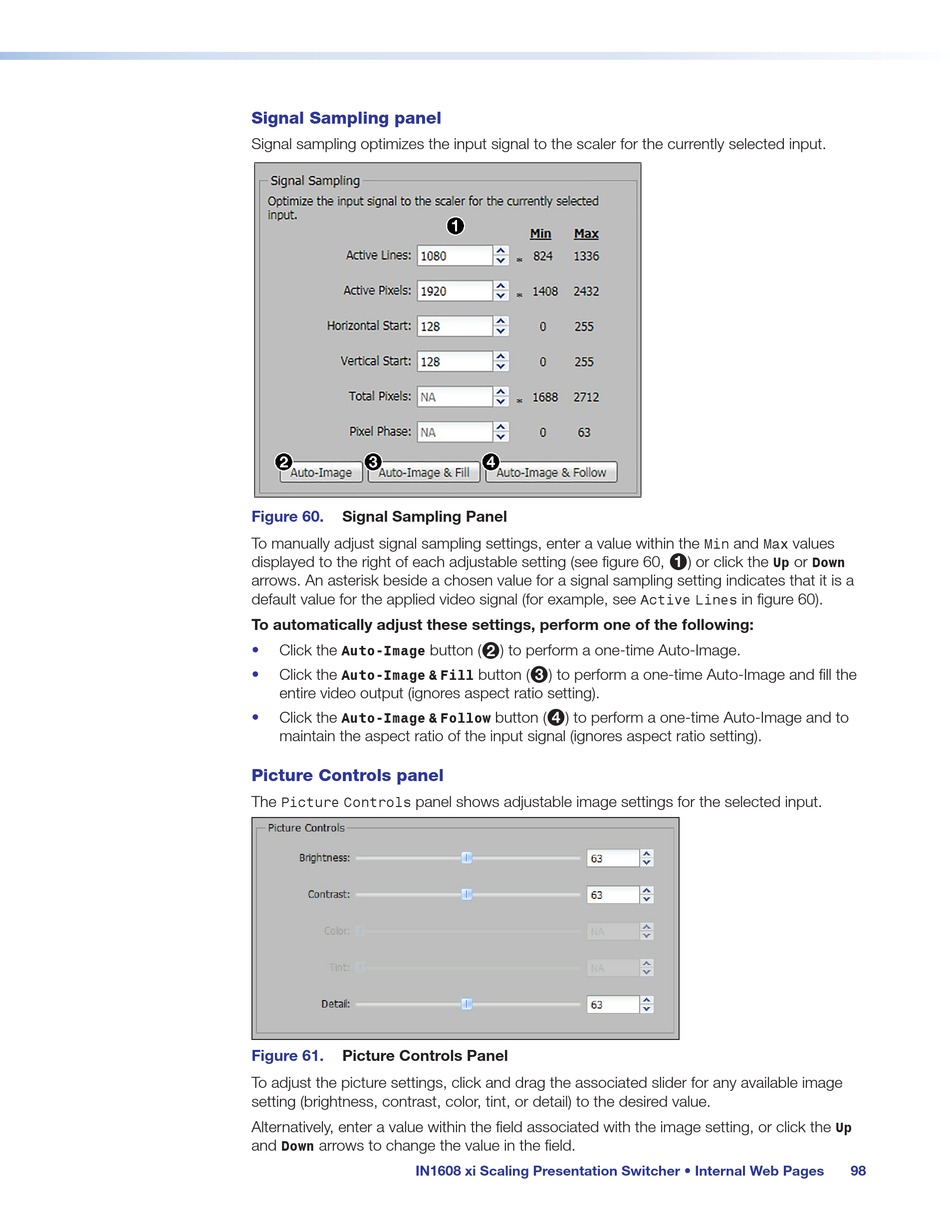

Signal Sampling panel
Signal sampling optimizes the input signal to the scaler for the currently selected input.
Figure 60. Signal Sampling Panel
To manually adjust signal sampling settings, enter a value within the
displayed to the right of each adjustable setting (see figure 60,
arrows. An asterisk beside a chosen value for a signal sampling setting indicates that it is a
default value for the applied video signal (for example, see
To automatically adjust these settings, perform one of the following:
• Click the button (
Auto-Image
• Click the
Auto-Image & Fill
entire video output (ignores aspect ratio setting).
• Click the
Auto-Image & Follow
maintain the aspect ratio of the input signal (ignores aspect ratio setting).
Picture Controls panel
The panel shows adjustable image settings for the selected input.
Picture Controls
Figure 61. Picture Controls Panel
To adjust the picture settings, click and drag the associated slider for any available image
setting (brightness, contrast, color, tint, or detail) to the desired value.
Alternatively, enter a value within the field associated with the image setting, or click the
and arrows to change the value in the field.
Down
IN1608 xi Scaling Presentation Switcher • Internal Web Pages
Active Lines
) to perform a one-time Auto-Image.
2
button ( ) to perform a one-time Auto-Image and fill the
3
button ( ) to perform a one-time Auto-Image and to
4
and values
Min Max
) or click the or
1
Up Down
in figure 60).
Up
98
