NOTES:
• Amplified output is for amplifier and IPCP models only.
• By default, all possible group members are selected for groups 1-7.
•
The default selected group members for group 8 are amplified output (amplifier and
IPCP models only) and variable analog output.
To configure the groups:
1. Click the
Mix Controls
2. In the
Group Controls
dialog box opens.
Groups

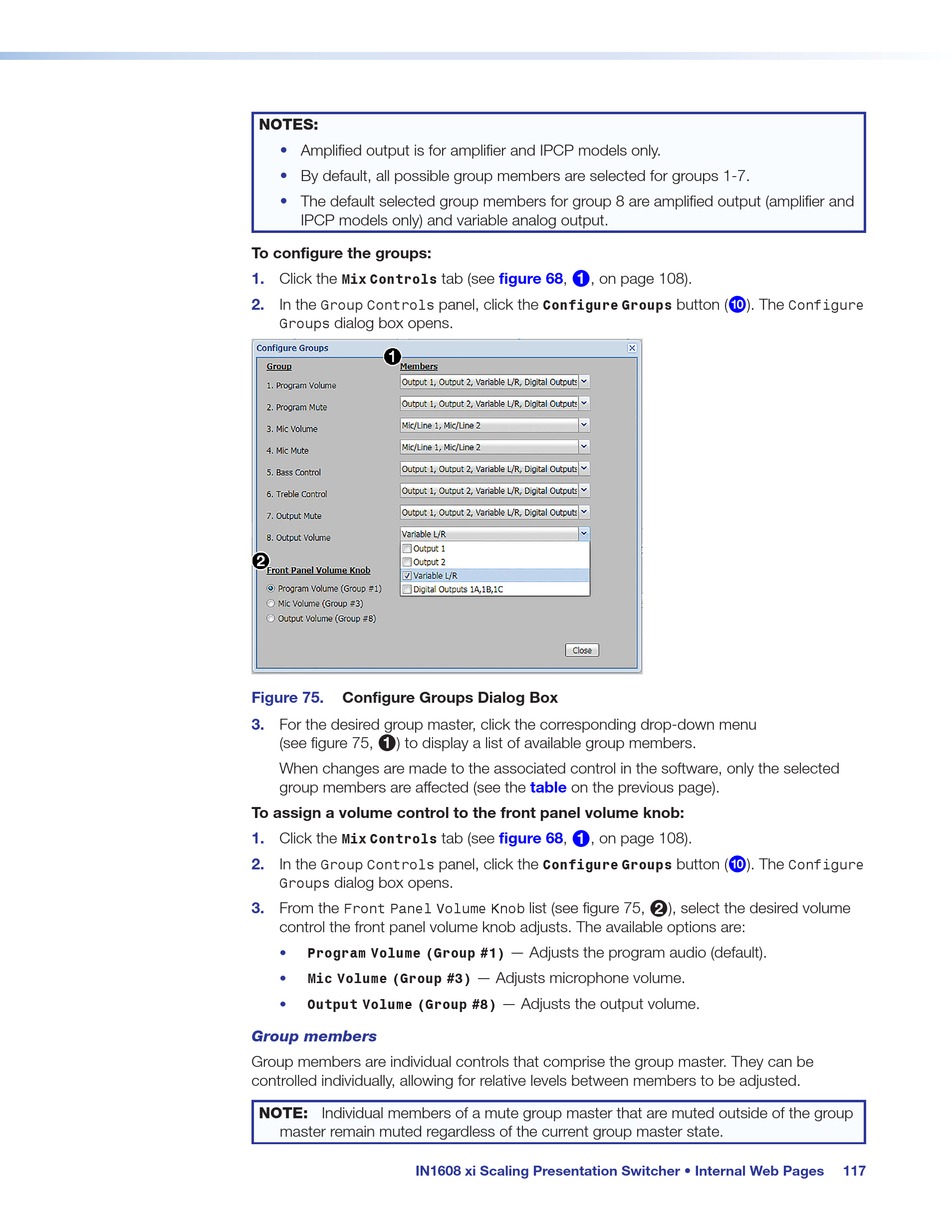

Figure 75. Configure Groups Dialog Box
3.
For the desired group master, click the corresponding drop-down menu
(see figure 75, ) to display a list of available group members.
1
When changes are made to the associated control in the software, only the selected
group members are affected (see the
To assign a volume control to the front panel volume knob:
1. Click the
Mix Controls
2. In the
Group Controls
dialog box opens.
Groups
3.
From the
Front Panel Volume Knob
control the front panel volume knob adjusts. The available options are:
• Program Volume (Group #1)
• Mic Volume (Group #3)
•
Output Volume (Group #8)
Group members
Group members are individual controls that comprise the group master. They can be
controlled individually, allowing for relative levels between members to be adjusted.
NOTE: Individual members of a mute group master that are muted outside of the group
master remain muted regardless of the current group master state.
IN1608 xi Scaling Presentation Switcher • Internal Web Pages
tab (see figure 68, , on page 108).
1
panel, click the
Configure Groups
table on the previous page).
tab (see figure 68, , on page 108).
1
panel, click the
Configure Groups
list (see figure 75,
— Adjusts the program audio (default).
— Adjusts microphone volume.
— Adjusts the output volume.
