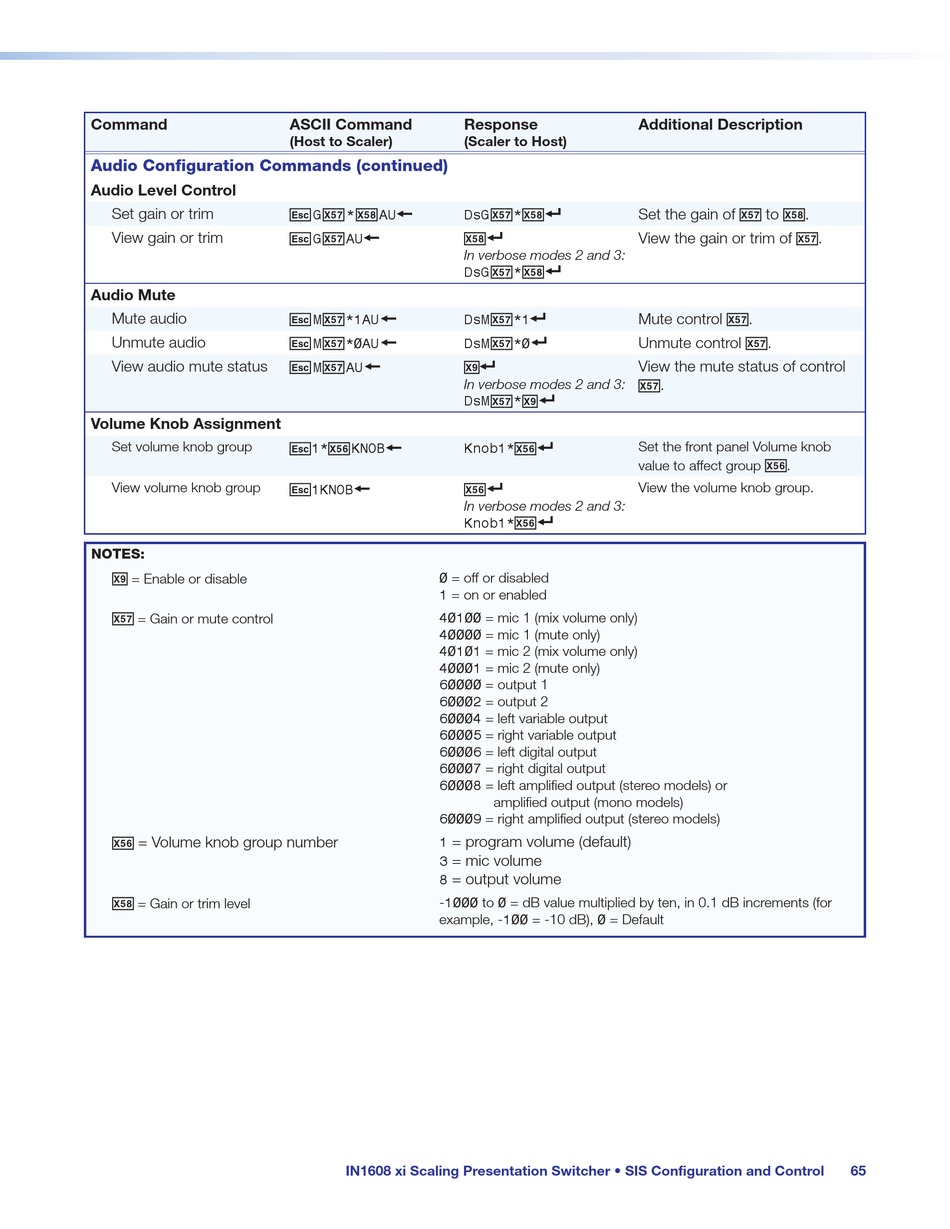

Extron electronics IN1608 xi IPCP SA with LinkLicense User Manual page 73

Command
Audio Configuration Commands (continued)
Audio Level Control
Set gain or trim
View gain or trim
Audio Mute
Mute audio
Unmute audio
View audio mute status
Volume Knob Assignment
Set volume knob group
View volume knob group
NOTES:
X(
= Enable or disable
X5&
= Gain or mute control
X5^ = Volume knob group number
X5*
= Gain or trim level
ASCII Command Response
(Host to Scaler) (Scaler to Host)
E X5& X5* }
G * AU DsG
E X5& } X5*]
G AU
In verbose modes 2 and 3:
DsG
E X5& }
M *1AU DsM
E X5& }
M *0AU DsM
E X5& } X(]
M AU
In verbose modes 2 and 3:
DsM
E X5^ }
1* KNOB Knob1*
E } X5^]
1KNOB
In verbose modes 2 and 3:
Knob1*
0 = off or disabled
1 = on or enabled
40100 = mic 1 (mix volume only)
40000 = mic 1 (mute only)
40101 = mic 2 (mix volume only)
40001 = mic 2 (mute only)
60000 = output 1
60002 = output 2
60004 = left variable output
60005 = right variable output
60006 = left digital output
60007 = right digital output
60008 = left amplified output (stereo models) or
60009 = right amplified output (stereo models)
= program volume (default)
1
= mic volume
3
= output volume
8
-1000 to 0 = dB value multiplied by ten, in 0.1 dB increments (for
example, -100 = -10 dB), 0 = Default
IN1608 xi Scaling Presentation Switcher • SIS Configuration and Control
Additional Description
X5& X5*] Set the gain of X5& to X5* .
*
View the gain or trim of X5& .
X5& X5*]
*
X5& ] Mute control X5& .
*1
X5& ] Unmute control X5& .
*0
View the mute status of control
X5& .
X5& X(]
*
X5^] Set the front panel Volume knob
value to affect group
View the volume knob group.
X5^]
amplified output (mono models)
X5^
.
65
