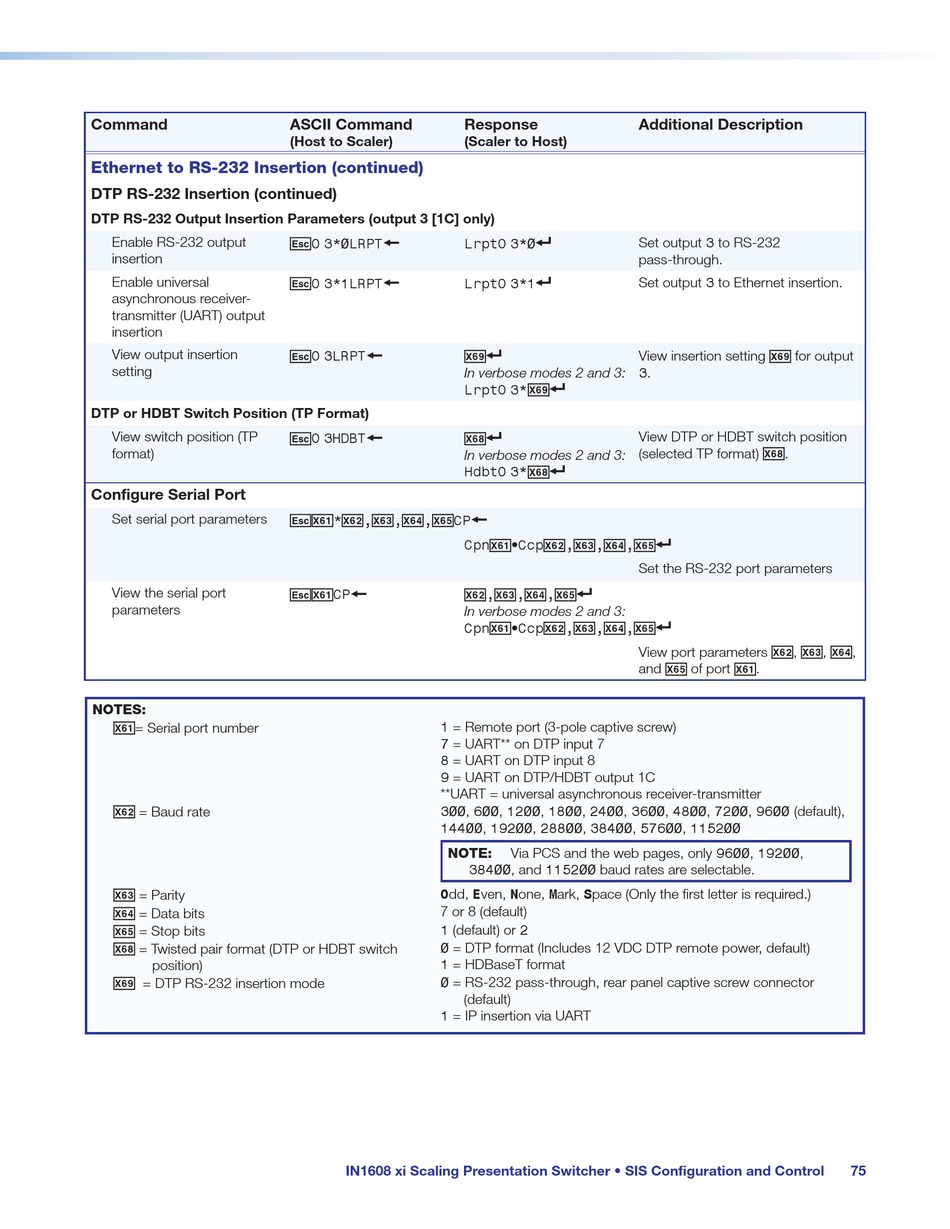

Extron electronics IN1608 xi IPCP SA with LinkLicense User Manual page 83

Command
Ethernet to RS-232 Insertion (continued)
DTP RS-232 Insertion (continued)
DTP RS-232 Output Insertion Parameters (output 3 [1C] only)
Enable RS-232 output
insertion
Enable universal
asynchronous receiver-
transmitter (UART) output
insertion
View output insertion
setting
DTP or HDBT Switch Position (TP Format)
View switch position (TP
format)
Configure Serial Port
Set serial port parameters
View the serial port
parameters
NOTES:
X6!
= Serial port number
X6@
= Baud rate
X6#
= Parity
X6$
= Data bits
X6%
= Stop bits
X6*
= Twisted pair format (DTP or HDBT switch
position)
X6(
= DTP RS-232 insertion mode
ASCII Command Response
(Host to Scaler) (Scaler to Host)
E }
O 3*0LRPT LrptO 3*0
E }
O 3*1LRPT LrptO 3*1
E } X6(]
O 3LRPT
In verbose modes 2 and 3:
LrptO 3*
E } X6*]
O 3HDBT
In verbose modes 2 and 3:
HdbtO 3*
EX6! X6@ X6# X6$ X6%
* , , , CP
Cpn
EX6! } X6@
CP
In verbose modes 2 and 3:
Cpn
1 = Remote port (3-pole captive screw)
7 = UART** on DTP input 7
8 = UART on DTP input 8
9 = UART on DTP/HDBT output 1C
**UART = universal asynchronous receiver-transmitter
300, 600, 1200, 1800, 2400, 3600, 4800, 7200, 9600 (default),
14400, 19200, 28800, 38400, 57600, 115200
NOTE:
38400, and 115200 baud rates are selectable.
Odd, Even, None, Mark, Space (Only the first letter is required.)
7 or 8 (default)
1 (default) or 2
0 = DTP format (Includes 12 VDC DTP remote power, default)
1 = HDBaseT format
0 = RS-232 pass-through, rear panel captive screw connector
(default)
1 = IP insertion via UART
IN1608 xi Scaling Presentation Switcher • SIS Configuration and Control
Additional Description
]
Set output 3 to RS-232
pass-through.
]
Set output 3 to Ethernet insertion.
View insertion setting
3.
X6(]
View DTP or HDBT switch position
(selected TP format)
X6*]
}
X6! X6@ X6# X6$ X6%]
•Ccp , , ,
Set the RS-232 port parameters
X6# X6$ X6%]
, , ,
X6! X6@ X6# X6$ X6%]
•Ccp , , ,
View port parameters
and
Via PCS and the web pages, only 9600, 19200,
X6(
for output
X6*
.
X6@ X6# X6$
, ,
X6% X6!
of port .
,
75
