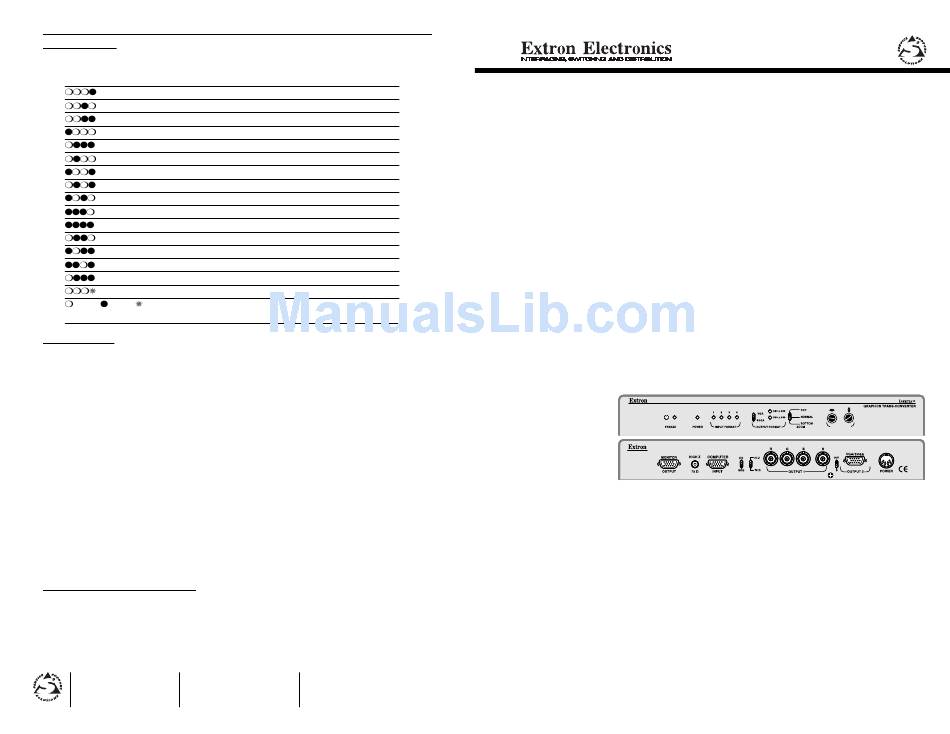

Extron electronics Inertia User Manual

Compatibility

The I is a multi-scanning device that accepts inputs in the 31 - 71 kHz frequency range.
NERTIA
The INPUT FORMAT LEDs are a general indication of the input signal frequency range.
Input LED Computer
VGA 2
VGA 3 (pass thru)
VESA 1
VESA 2
VESA 3
VESA 5
VESA 6
M 13" / 14" display
AC
M 16" display
AC
M 19" display
AC
M 21" display
AC
IBM 8514/XGA
SUN
SUN
SGI
SGI
= Off; = On; = Blinking LED. LEDs sequencing = input range exceeded,
LEDs all off = no signal, improper connection, etc.

Specifications

Input Signals
Computer Compatibility: SUN, SGI, PowerPC, Super VGA, Radius, Quadra, M
S , Super M , and E-Machine graphics from 31 to 71 kHz (multi-scanning).
ERIES AC
Video ....... 0.7 - 1.0 volts p-p
Sync ....... Composite sync (±), Sync on Green (±),
....... Horizontal and Vertical (±)
Input freq. compatibility ....... 31-71 kHz (multi-scanning)
Maximum Resolution ....... 1280 x 1024
Output Signals Video ....... BNC - RGBS, 15-pin HD = VGA or SVGA
Sync ....... BNC = Composite sync
....... 15-pin HD = Composite or separate H&V
Output frequency ....... 31.5 kHz VGA or 35 kHz SVGA (Switchable)
Output resolution ....... 640 x 480 VGA or 800 x 600 SVGA (Switchable)
RGB video bandwidth ....... 120 MHz (-3 db)
Power Supply ....... 100-240 VAC, 50/60 Hz external auto-switchable
Dimensions ....... 10"W x 11.5"D x 1.5"H (25 W x 29 D x 3.8 H cm)
Shipping Weight ....... 9 lbs. (4 kg)
Warranty ....... Two years parts/labor

Supplied Cables and Adapters

VGA Input Cable, 6' (1.8m) ............................. Part Number 26-112-15
13W3/VGA return cable, 1' (0.3 m) ................. Part Number 26-371-01
13W3/VGA adapter .......................................... Part Number 26-372-01
M HV/VGA return cable, 1' (0.3 m) ............. Part Number 26-340-02
AC
M HV/VGA adapter ...................................... Part Number 26-374-01
AC
Page 3
EXTRON ELECTRONICS EXTRON ELECTRONICS, EUROPE
1230 S. Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
(714) 491-1500 FAX (714) 491-1517 +31-33-453-4040 FAX +31-33-453-4050
SM
U.S.A. The Netherlands

Operation and Specifications

Resolution Horiz. Vert.
640 x 400 31.5 kHz 70 Hz
640 x 480 31.5 60
800 x 600 35.0 56
640 x 480 37.9 72
1024 x 768 48.4 60
800 x 600 37.9 60
800 x 600 48.1 72
640 x 480 35.0 67
832 x 624 49.7 75
1024 x 768 60.2 75
1152 x 870 68.7 75
1024 x 768 35.5 87
1152 x 900 61.8 66
1152 x 900 71.7 76
1024 x 768 48.0 60
1280 x 1024 63.9 60
AC
EXTRON ELECTRONICS, ASIA
79-07
41B Kreta Ayer Road
Singapore 089003
68-339-01
+65-226-0015 FAX +65-226-0019
Rev. A
Singapore
User's Guide
CENTERING
I
NERTIA
CAD Workstation
to VGA Graphics
Trans-Converter
P/N 60-161-01
