11
OTHER FUNCTIONS

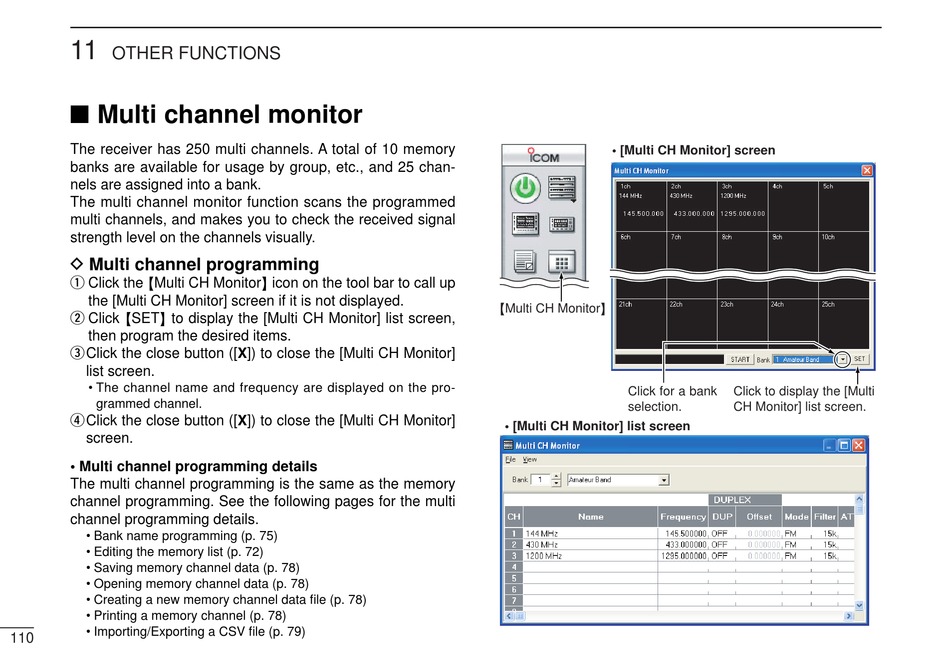

Multi channel monitor

The receiver has 250 multi channels. A total of 10 memory
banks are available for usage by group, etc., and 25 chan-
nels are assigned into a bank.
The multi channel monitor function scans the programmed
multi channels, and makes you to check the received signal
strength level on the channels visually.
D Multi channel programming
q Click the zMulti CH Monitorx icon on the tool bar to call up
the [Multi CH Monitor] screen if it is not displayed.
w Click zSETx to display the [Multi CH Monitor] list screen,
then program the desired items.
eClick the close button ([X]) to close the [Multi CH Monitor]
list screen.
• The channel name and frequency are displayed on the pro-
grammed channel.
rClick the close button ([X]) to close the [Multi CH Monitor]
screen.
• Multi channel programming details
The multi channel programming is the same as the memory
channel programming. See the following pages for the multi
channel programming details.
• Bank name programming (p. 75)
• Editing the memory list (p. 72)
• Saving memory channel data (p. 78)
• Opening memory channel data (p. 78)
• Creating a new memory channel data file (p. 78)
• Printing a memory channel (p. 78)
• Importing/Exporting a CSV file (p. 79)
110
• [Multi CH Monitor] screen
zMulti CH Monitorx
Click for a bank
selection.
• [Multi CH Monitor] list screen
Click to display the [Multi
CH Monitor] list screen.
