10.6 PM+
The Solar-Log™ PM+ models come with a 6-pin PM+ interface on the top side of the Solar-Log
The interface has been designed to link the ripple control receivers or telecontrol plants with potential-free
signal contacts. Up to two ripple control receivers can be connected. This allows the commands from grid
operators for active and reactive power to be interpreted.

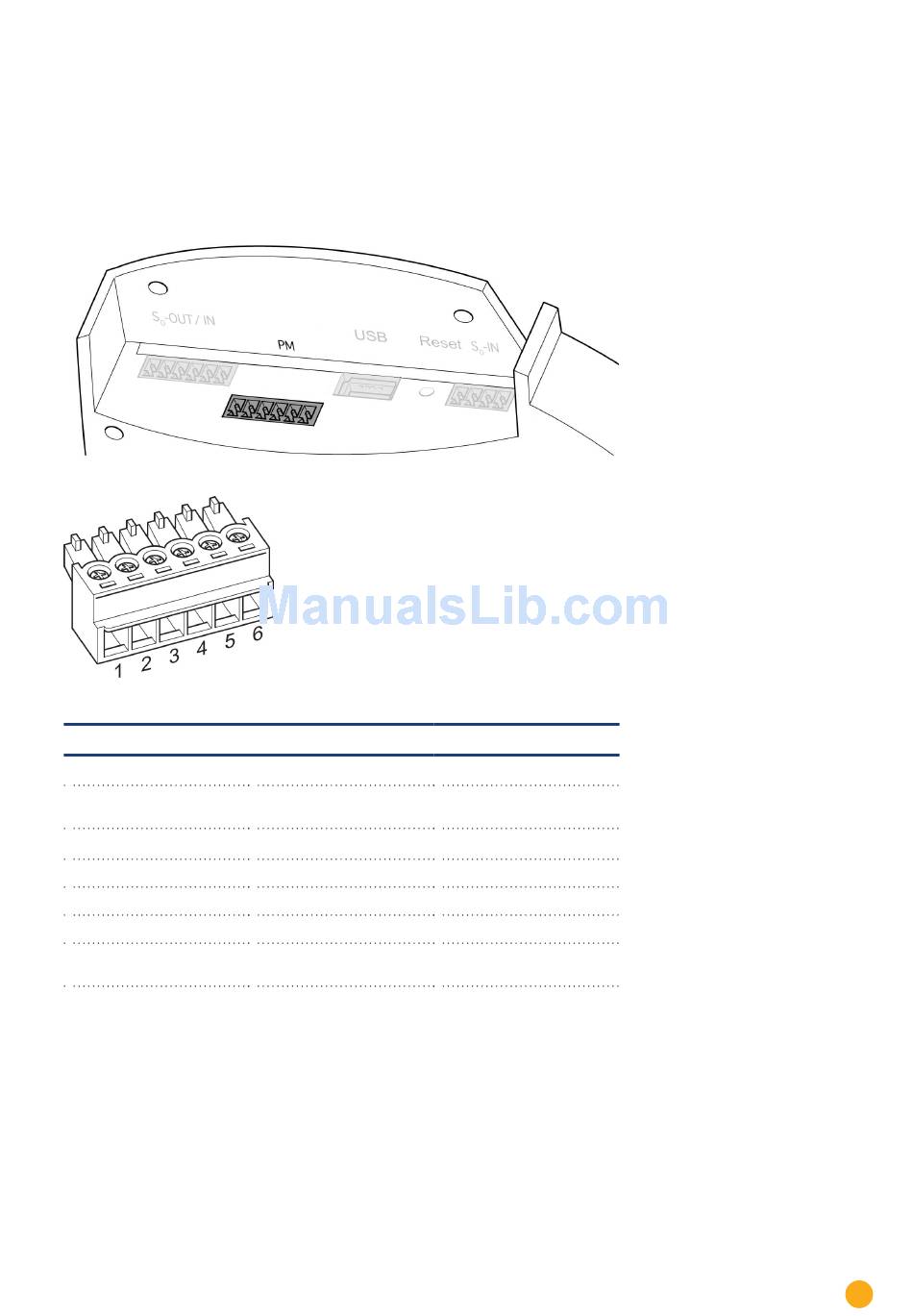

Fig.: 6-pin PM+ interface

Fig.: 6-pin Terminal block connector
PM+
PIN
1
2
3
4
5
6
To provide the highest possible flexibility, the individual active and reactive power values can be assigned
to inputs D_IN_1 to D_IN_4
See Chapter „Feed-In Management"for more information
See the appendix for more ripple control receiver connection examples
Assignment
+5V
D_IN_1
D_In_2
D_In_3
D_In_4
+5V
Description
Control voltage for active
power control
Control input 1
Control input 2
Control input 3
Control input 4
Control voltage for reactive
power reduction
Connector Assignments and Wiring
