Bottom connections

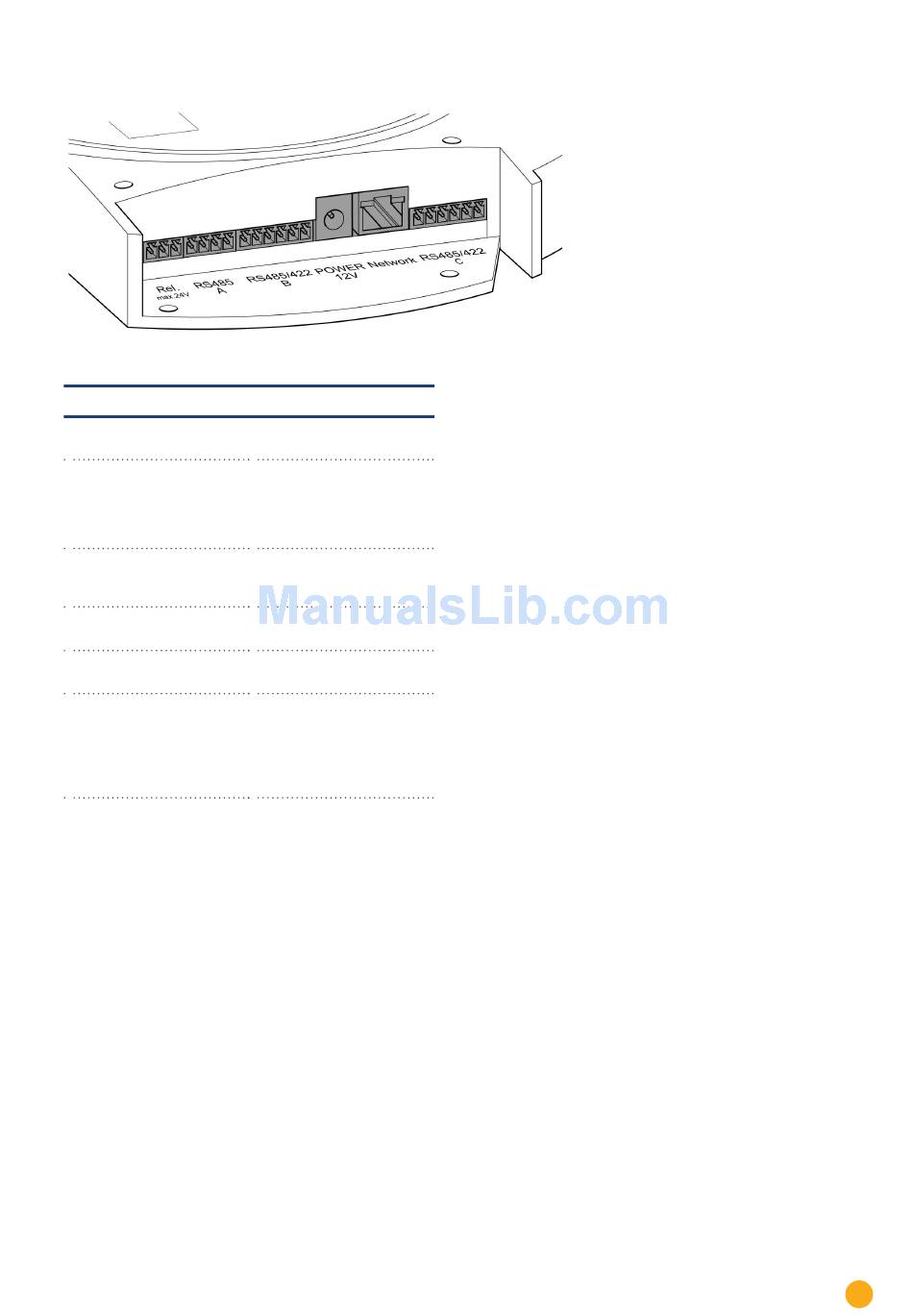

Fig.: Top Connections Solar-Log 2000
Solar-Log 2000
Relay
RS485 - A
RS485/422 - B
Power 12 V
Network
RS485/422 - C
Relay with change-over
contact
RS485 interface, 4 pin:
Connection for inverters
and/or accessories (inac-
tive if the optional Blue-
tooth interface is used)
RS485 interface, 6 pin:
Connection for inverters
and additional accessories
12 volt DC input
Ethernet network interface,
10/100 Mbit
RS485 interface, 6 pin:
Connection for inverters
and additional accessories
=> It is not possible to
connect a large external
display on this interface.
Unit connections
