Solar-Log 200 Installation Manual page 216

Appendix
Connecting PM+ terminal connector
and ripple control receiver
PIN
1
2
3
4
5
6
Configuration in browser menu
Remote controlled active power reduction

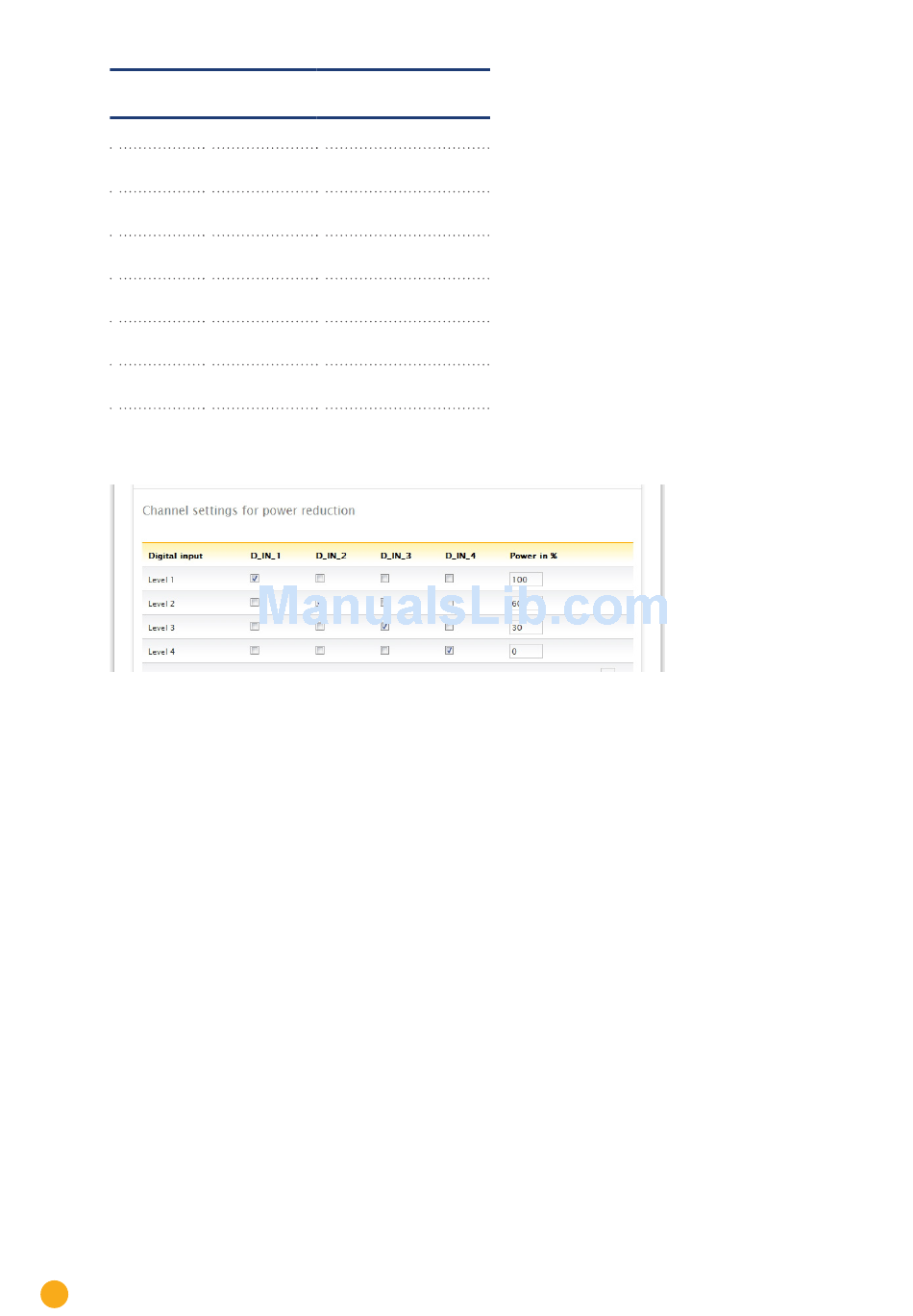

Fig.: Channel settings for active power reduction - example 4
216
Assignment Meaning
+5V Control voltage for active
power
D_IN_1 Level 1
100%
D_In_2 Level 2
60%
D_In_3 Level 3
30%
D_In_4 Level 4
0%
+5V Control voltage for reac-
tive power (unused)
Configuration | Feed-in Management | Active Power
