Connector Assignments and Wiring

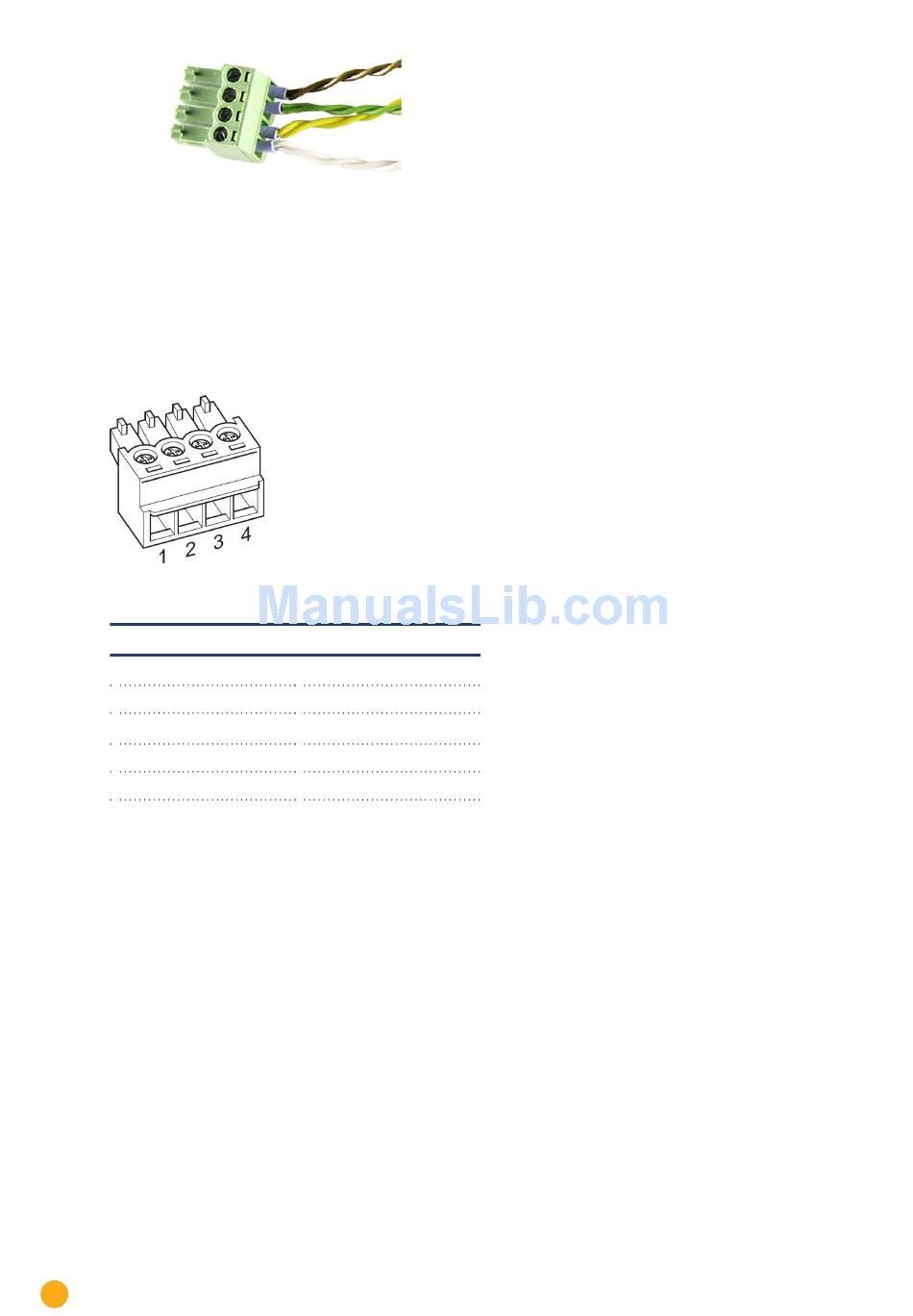

Fig.: Terminal block connector with ferrules
10.2 RS485-A (only Solar-Log 1000, 1200 and 2000)
Use the provided terminal block connectors when connecting inverters or accessories to the RS485 A
interface.
Fig.: 4-pin Terminal block connector
RS485 - A
PIN
1
2
3
4
30
Assignment
Data +
12 V
Ground
Data -
