Unit connections
8.3
Solar-Log 2000
Top connections

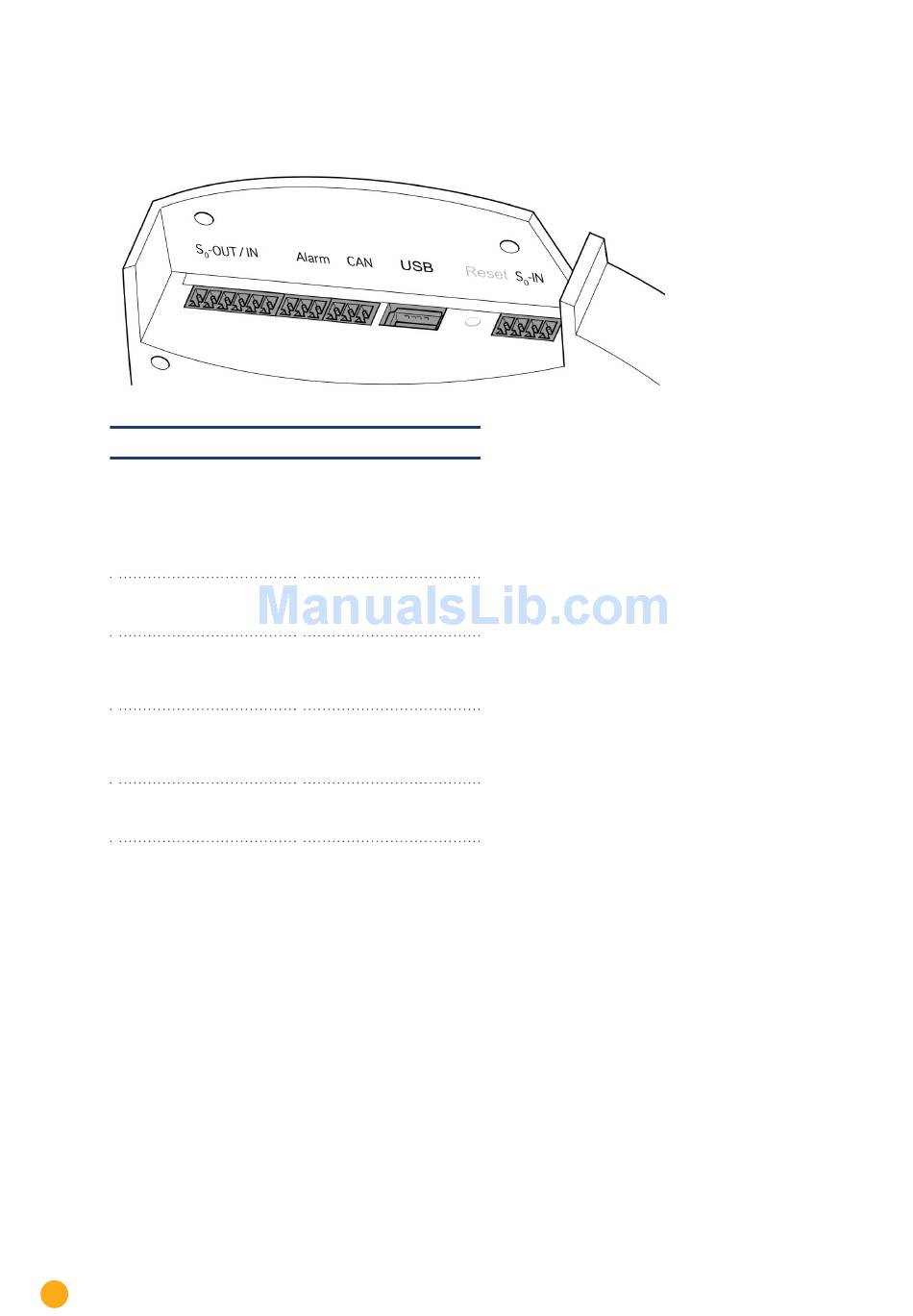

Fig.: Top Connections Solar-Log 2000
Solar-Log 2000
S0-Out
S0-IN
Alarm
CAN
USB
S0-IN
22
S0 pulse output for con-
necting to a large external
screen. S0 pulse input for
connection to an external
power meter. Please note
the connection characteris-
tics of the S0 connection.
Connection for contact
strip for anti-theft protec-
tion.
CAN bus — which, for
example, can be used to
connect Voltwerk, Conergy
or Suntechnics inverters
USB connection. Suitable
for USB sticks.
Not suitable for a connec-
tion to a PC
S0 pulse input for connec-
tion to an external power
meter.
