Feed-In Management

24.5 Profile

For feed-in management, PM+ profiles come with the Solar-Log™ PM Package equipment. These profiles
contain the pre-configured settings for feed-in management and enable the PM+ Package I/O Boxes
The profiles are delivered in the
config_pmprofil_NameGridOperator.dat file format.
Procedure:
•
Select configuration from
•
Click on
•
Select load profile
•
The Solar-Log™ reboots itself. The status is displayed in the progress bar.
The following window appears after the reboot.

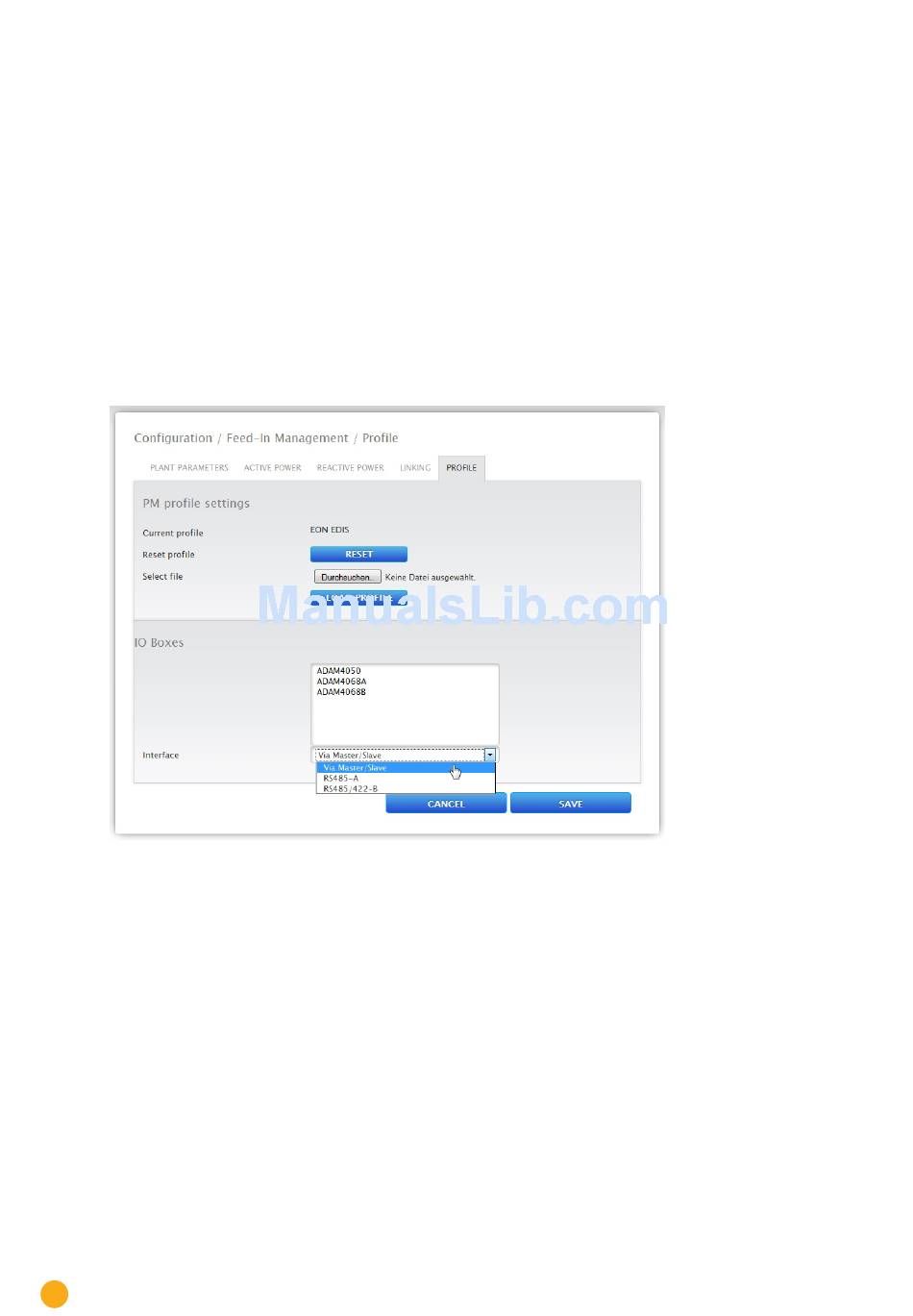

Fig.: Activated PM+ Profile for a PM Package

•
The name of the grid operator / profile are displayed in the
•
At the bottom of the page, the
displayed.
•
In the interface section, the RS485 interfaces or Master/Slave on which the
nected to
•
SAVE the settings.
162
Configuration | Feed-in Management | Profile
Browse to import the profile and select the file to
I/O Boxes
have to be selected.
open it.
Current Profile
that are used in the corresponding PM+Package are
,
section
I/O Boxes con-
are
