31.4.2 Variation with two relays

Specifications
Ripple control receiver signals
Level K5
1 Off
2 On
3 Off
4 On
Wiring

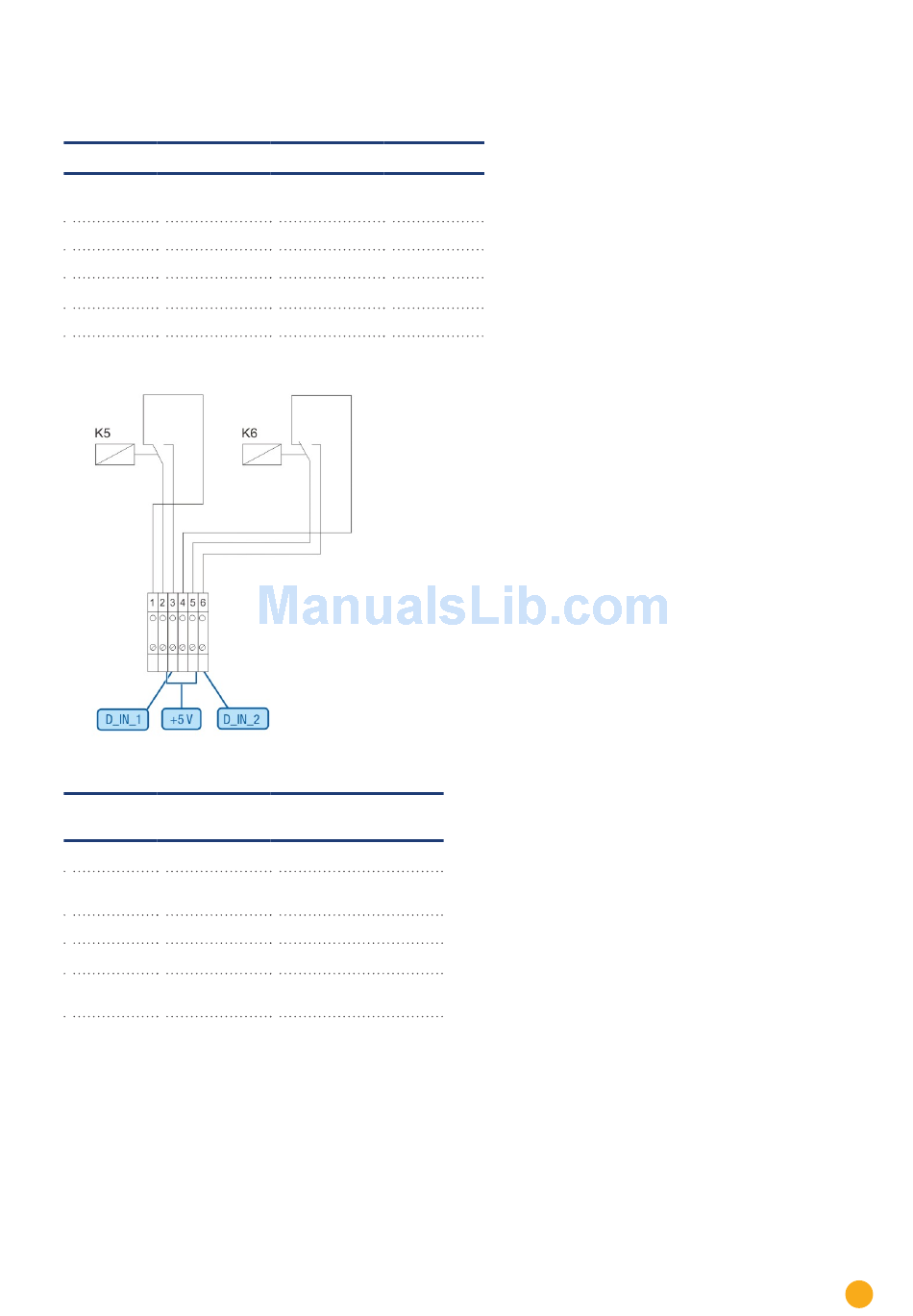

Fig.: Wiring a ripple control receive with two relays - example 2
Connecting PM+ terminal connector
and ripple control receiver
PIN Assignment
1 +5V
2 D_IN_1
3 D_In_2
6 +5V
K6 Power out-
put
Off 100%
Off 60%
On 30%
On 0%
Meaning
Control voltage for active
power
K5 switched
K6 switched
Control voltage for reac-
tive power (unused)
