Fig.: Two 6-Pin Terminal Block Connectors For The Meter Interface - Solar-Log 200 Installation Manual

Optional Connections
Combinations:
•
2x3 Phases
•
1x3 Phases + 3x1 Phase
•
6x1 Phase
•
3x2 Phases
•
2x2 Phases + 2x1 Phase
•
1x2 Phases + 4x1 Phase
The current transformers have to be connected to the Meter interface with the secondary side.

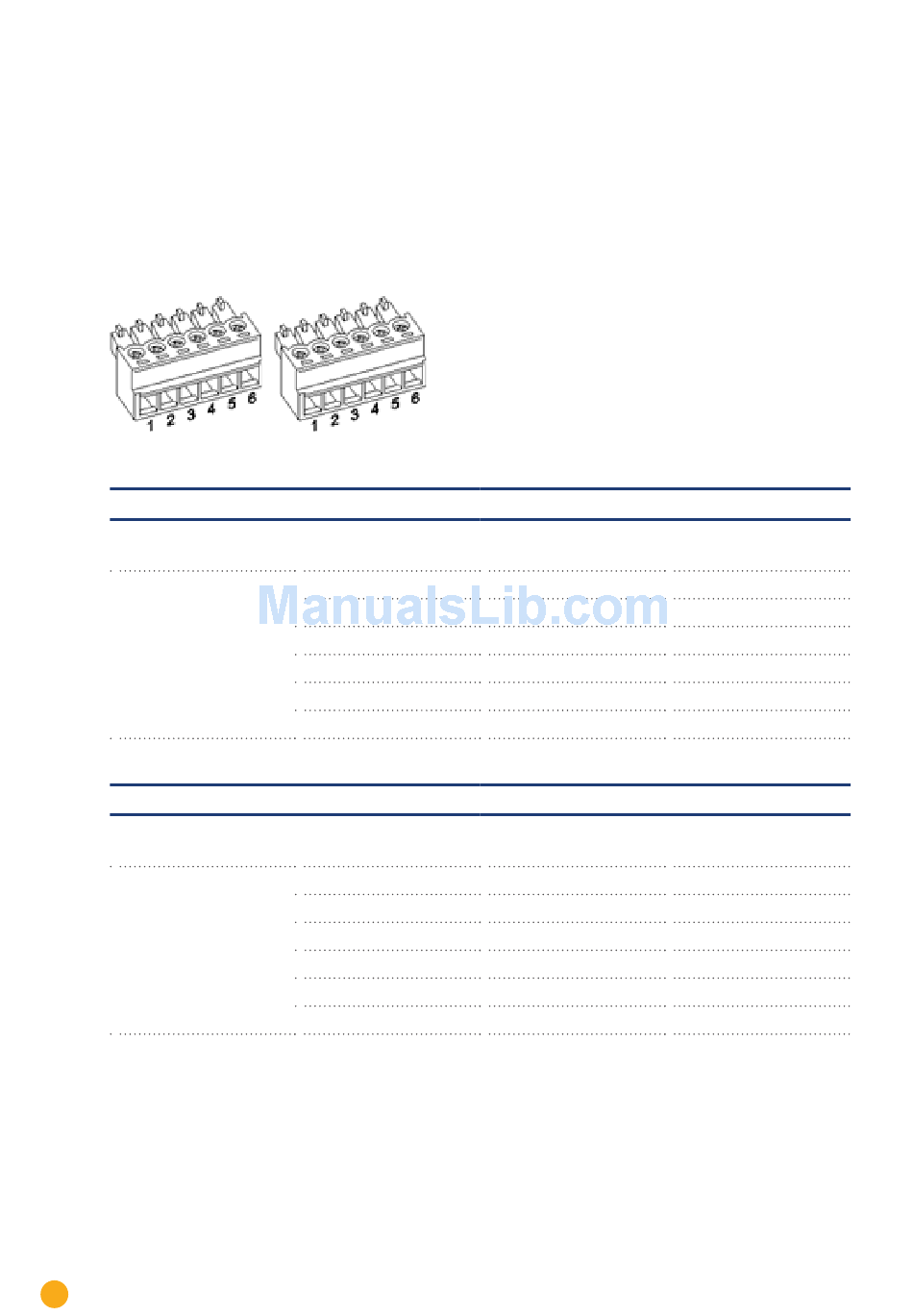

Fig.: Two 6-pin terminal block connectors for the Meter interface

Solar-Log™ Meter 1
Interface
Meter 1
Solar-Log™ Meter 2
Interface
Meter 2
26
PIN
1
2
3
4
5
6
PIN
1
2
3
4
5
6
Description
Current transformer/CT 1a
Current transformer/CT 1b
Current transformer/CT 2a
Current transformer/CT 2b
Current transformer/CT 3a
Current transformer/CT 3b
Description
Current transformer/CT 1a
Current transformer/CT 1b
Current transformer/CT 2a
Current transformer/CT 2b
Current transformer/CT 3a
Current transformer/CT 3b
Label
Current transformer
S1/k
S2/i
S1/k
S2/i
S1/k
S2/i
Label
Current transformer
S1/k
S2/i
S1/k
S2/i
S1/k
S2/i
