A.4

Operator Panel Overview

You can use the operator panel to view the operating status of the server as a whole and
perform operations such as system power operations. You can use it while the cabinet doors
are closed.
The following figure shows the appearance of the operator panel.

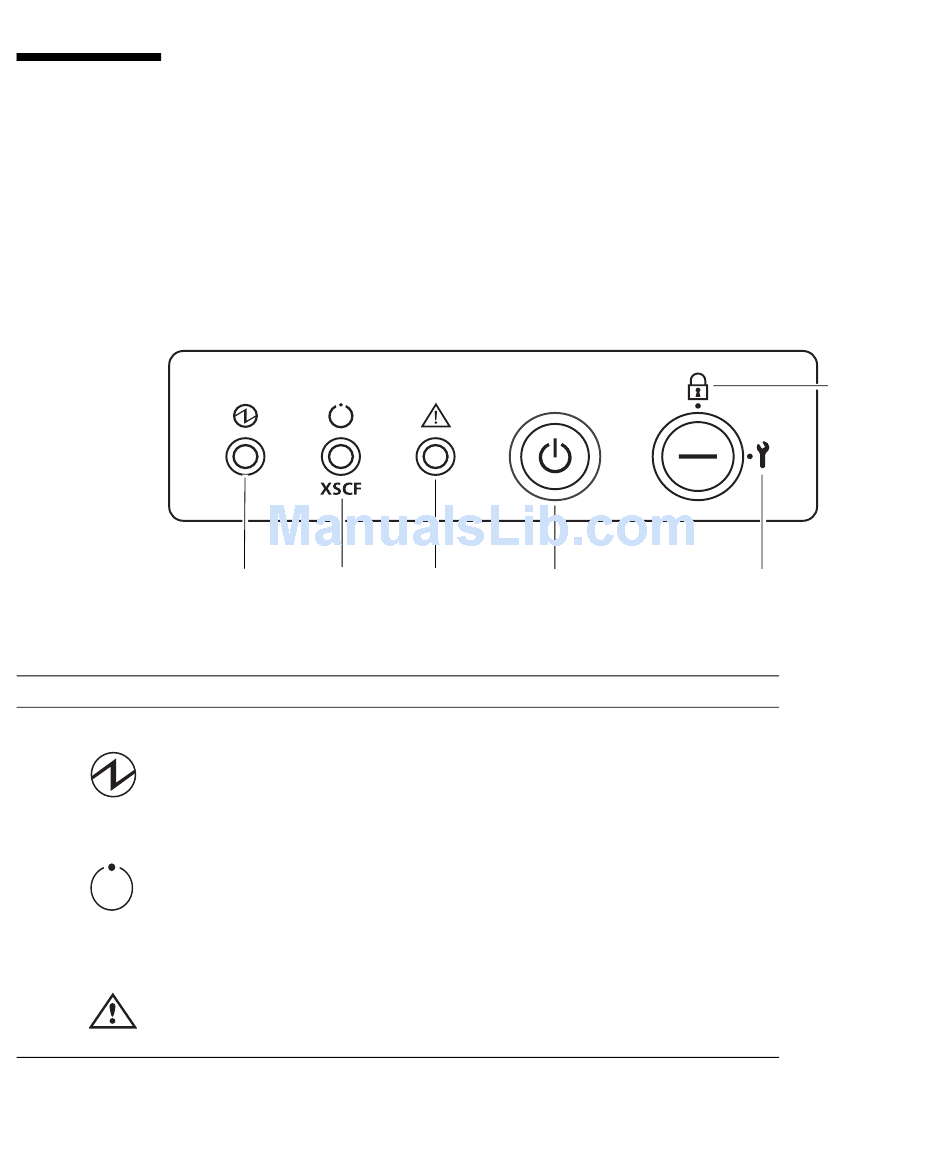

FIGURE A-9
LEDs and Switches on the Operator Panel
TABLE A-9
No. Icon Name
1 POWER LED
(Green)
2 XSCF STANDBY
LED (Green)
3 CHECK LED
(Amber)
A-10 SPARC Enterprise M8000/M9000 Servers Installation Guide • October 2012
Operator Panel
1 2
Description
Indicates the server power status.
• On: Server has power.
• Off: Server is without power.
• Blinking: The power-off sequence is in progress.
Indicates the readiness of the XSCF.
• On: XSCF unit is functioning normally.
• Off: XSCF unit is stopped.
• Blinking: Under system initialization after NFB on, or
under system power-on process.
Indicates that server detected a fault.
• On: Error detected that disables the startup.
• Off: Normal, or the breaker is off (power failure).
• Blinking: Indicates the position of fault.
3 4
6
5
