2. On the right side of the expansion cabinet, mount the right side panels that were
removed in the
Note – Unless otherwise stated, assume that you are facing the front of the expansion
cabinet when you perform the work. The CD-RW/DVD-RW drive unit is equipped on the
front of the expansion cabinet. For information on the mounting location of the CD-
RW/DVD-RW drive unit, see
Note – If the power cabinet is connected, a side panel is mounted on the power cabinet side.
See Section 3.3.2, "Connecting the Power Cabinet" on page

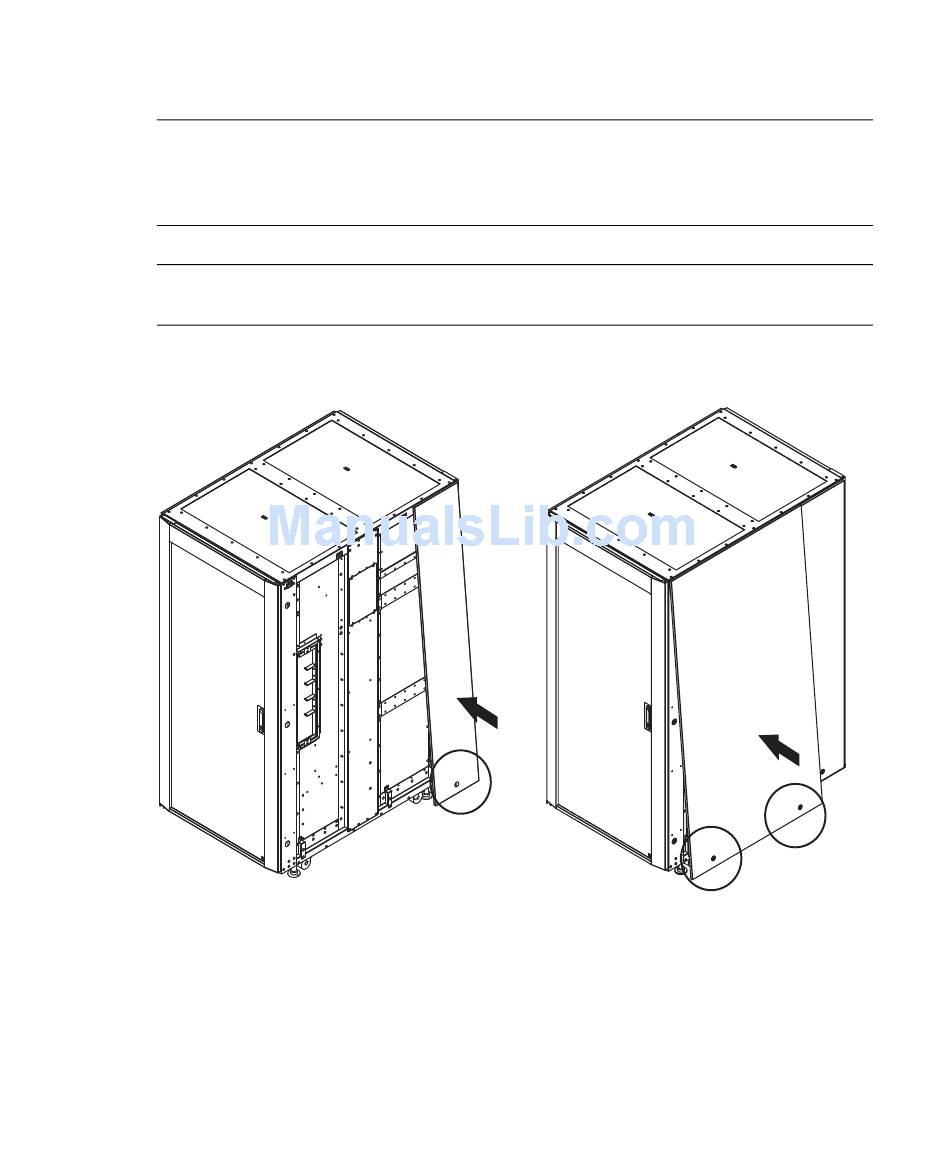

FIGURE 3-3
3. To remove the front cover on the expansion cabinet side, use the following procedure,
considering workability.
a. Remove the cabinet-side screw (1) connecting the grounding wire to the door.
b. Loosen the left-side securing screw of the hinge bracket.
c. Raise the cover and remove it from the lower-side hinge bracket.
3-6 SPARC Enterprise M8000/M9000 Servers Installation Guide • October 2012
Step 1.
FIGURE A-3
Attaching the Right Side Panels to the Expansion Cabinet
.
3-10.
